FL300AET (2011)
BRACKET 1

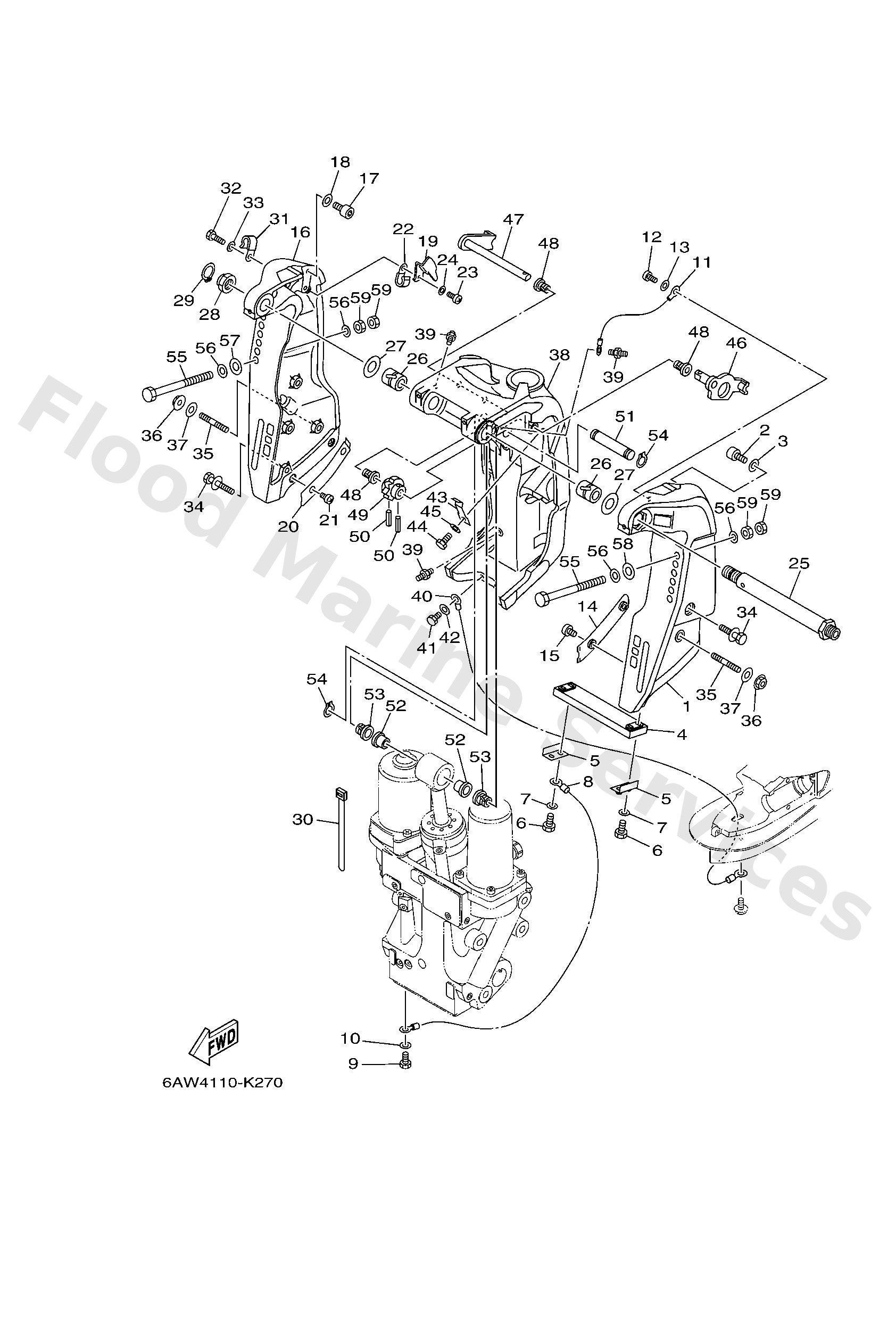

Diagram: BRACKET 1
Parts List
Reference
Description
Price
1
6AW43111008D
Bracket, clamp 1
Loading…
↗
2
9011010092
Bolt, socket
Loading…
↗
3
9020110049
Washer, plate
Loading…
↗
4
6AW4525100
Anode
Loading…
↗
5
6G54452600
Plate
Loading…
↗
6
9709506030
Bolt(jf7)
Loading…
↗
7
9299506600
Washer, plain (646)
Loading…
↗
8
6H18214800
Wire, lead
Loading…
↗
9
9709506010
Bolt
Loading…
↗
12
9788506012
Screw, pan head(62j)
Loading…
↗
14
61A4313200
Washer, friction
Loading…
↗
15
9788506010
Screw pan head
Loading…
↗
16
6AW43112008D
Bracket, clamp 2
Loading…
↗
19
6AW4311300
Plate, clamp bracket
Loading…
↗
20
61A4313300
Washer,friction
Loading…
↗
22
9046508M83
Clamp
Loading…
↗
25
6R34313110
Bolt, clamp bracket
Loading…
↗
26
9038625003
Bush
Loading…
↗
27
9020126014
Washer, plate
Loading…
↗
28
9018522007
Nut, self-locking
Loading…
↗
29
9341021089
Circlip
Loading…
↗
30
9046511M10
Clamp
Loading…
↗
32
9709506014
Bolt(gj3)
Loading…
↗
34
9011910039
Bolt, with washer
Loading…
↗
35
9011610047
Bolt, stud
Loading…
↗
36
9578010300
Nut, nylon (6e5)
Loading…
↗
37
9020110048
Washer, plate
Loading…
↗
38
6AW43311008D
Bracket, swivel 1
Loading…
↗
39
9370006M03
Nipple, grease(6a1)
Loading…
↗
40
6E58214700
Wire, lead 5
Loading…
↗
43
6AW4411600
Spring
Loading…
↗
46
6AW4318101
Go to P/N ) PE0-OM-100057
Lever, tilt stop 1
Loading…
↗
47
6AW4318501
Go to P/N ) PE0-OM-100057
Lever, tilt stop 2
Loading…
↗
48
9038610M16
Bushing (688)
Loading…
↗
49
6AW4314800
Collar, distance
Loading…
↗
50
9169030020
Pin, spring (6h4)
Loading…
↗
51
6AW4312601
Pin, upper shock mount
Loading…
↗
52
9038618M63
Bush(6e5)
Loading…
↗
53
9038618M14
Bushing (6e5)
Loading…
↗
54
9341018M02
Circlip (6f2)
Loading…
↗
55
9010112031
Bolt (150mm)
Loading…
↗
56
9020112060
Washer, plate
Loading…
↗
57
9020112M05
Washe, plate(663)
Loading…
↗
58
9020113M19
Washer, plate (663)
Loading…
↗
59
9538012600
Nut (707)
Loading…
↗
