FL300BET1 (2018)
BRACKET 1

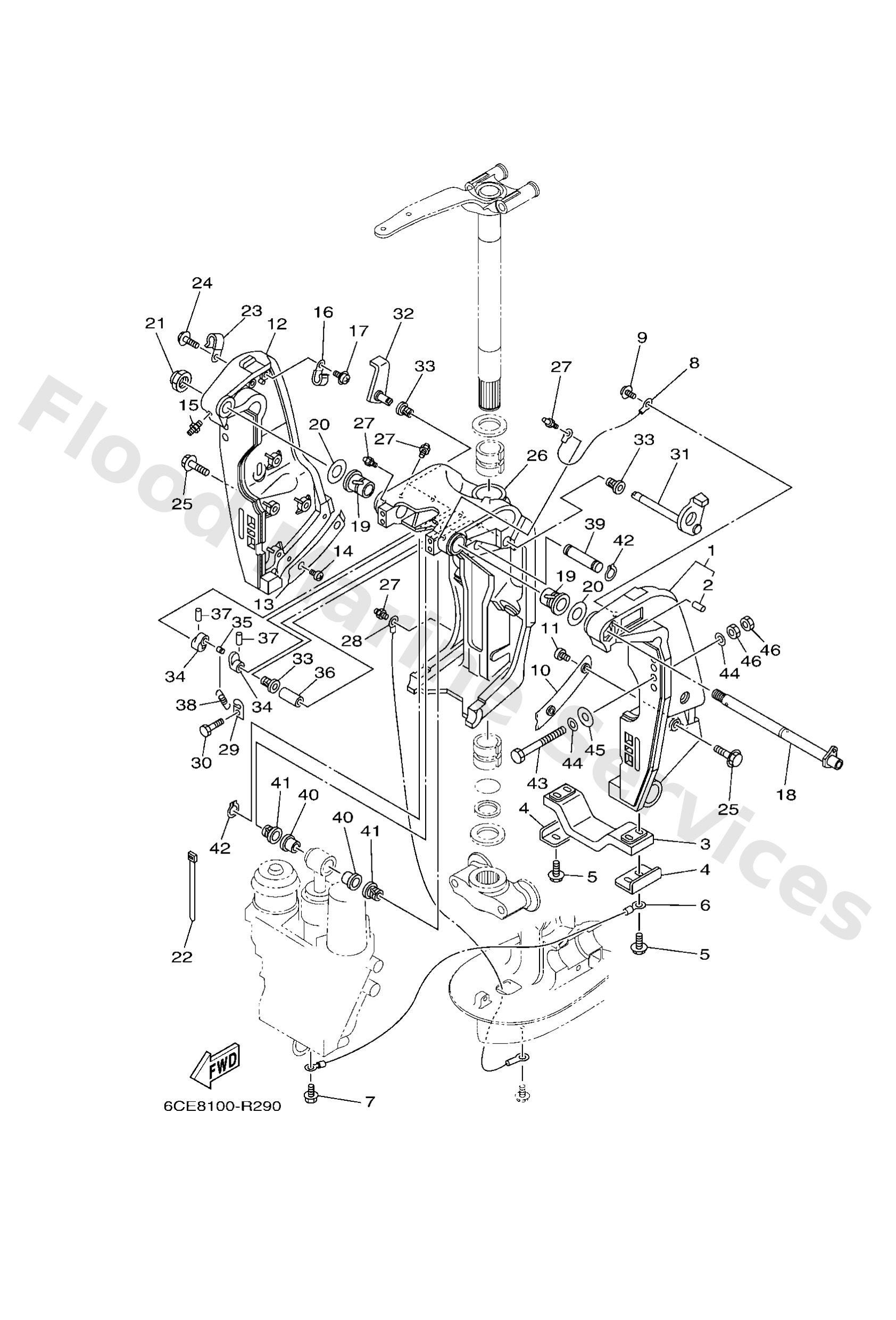

Diagram: BRACKET 1
Parts List
Reference
Description
Price
1
69J43111108D
Bracket, clamp 1
Loading…
↗
2
9360619002
Pin, dowel
Loading…
↗
3
6G54525102
Anode
Loading…
↗
4
6G54452600
Plate
Loading…
↗
5
9759506525
Bolt, hexagon w/w deep recess
Loading…
↗
6
6H18214800
Wire, lead
Loading…
↗
7
9759506510
Bolt, hexagon w/w deep recess
Loading…
↗
8
6E58214800
Wire, lead 5
Loading…
↗
9
9798506212
Screw, with washer(6h3)
Loading…
↗
10
61A4313200
Washer, friction
Loading…
↗
11
9788506010
Screw pan head
Loading…
↗
12
69J43112018D
Bracket, clamp 2
Loading…
↗
13
61A4313300
Washer,friction
Loading…
↗
15
9370006M03
Nipple, grease(6a1)
Loading…
↗
16
9046508M83
Clamp
Loading…
↗
18
6R34313130
Bolt, clamp bracket
Loading…
↗
19
9038625M31
Bushing (6e5)
Loading…
↗
20
9020126M59
Washer, plate (6e5)
Loading…
↗
21
9018522M11
Nut, self-locking
Loading…
↗
22
9046511M10
Clamp
Loading…
↗
24
9759506514
Bolt(gj3)
Loading…
↗
25
9011910024
Bolt, with washer
Loading…
↗
26
61A43311228D
Bracket, swivel 1
Loading…
↗
28
69J8214700
Wire, lead 5
Loading…
↗
29
6G54314400
Hook, spring
Loading…
↗
30
9709506010
Bolt
Loading…
↗
31
61A4318101
Lever, tilt stop 1
Loading…
↗
32
6G54318502
Lever, tilt stop 2
Loading…
↗
33
9038610M16
Bushing (688)
Loading…
↗
34
6G54314800
Collar, distance
Loading…
↗
35
9024906M19
Pin(6e5)
Loading…
↗
36
9038710M05
Collar(6e5)
Loading…
↗
37
9169030020
Pin, spring (6h4)
Loading…
↗
38
9050616003
Spring, tension
Loading…
↗
39
6E54312610
Pin, upper shock mount
Loading…
↗
40
9038618M63
Bush(6e5)
Loading…
↗
41
9038618M14
Bushing (6e5)
Loading…
↗
42
9341018M05
Circlip (6f2)
Loading…
↗
43
9010112M05
UR
Bolt (l:130mm)
Loading…
↗
43
9010112047
UR
Bolt (l:150mm)
Loading…
↗
44
9020113M01
Washer, plate(6e5)
Loading…
↗
45
9020112426
Washe, plate(663)
Loading…
↗
46
9538012600
Nut (707)
Loading…
↗
