FL350AET (2019)
BRACKET 1

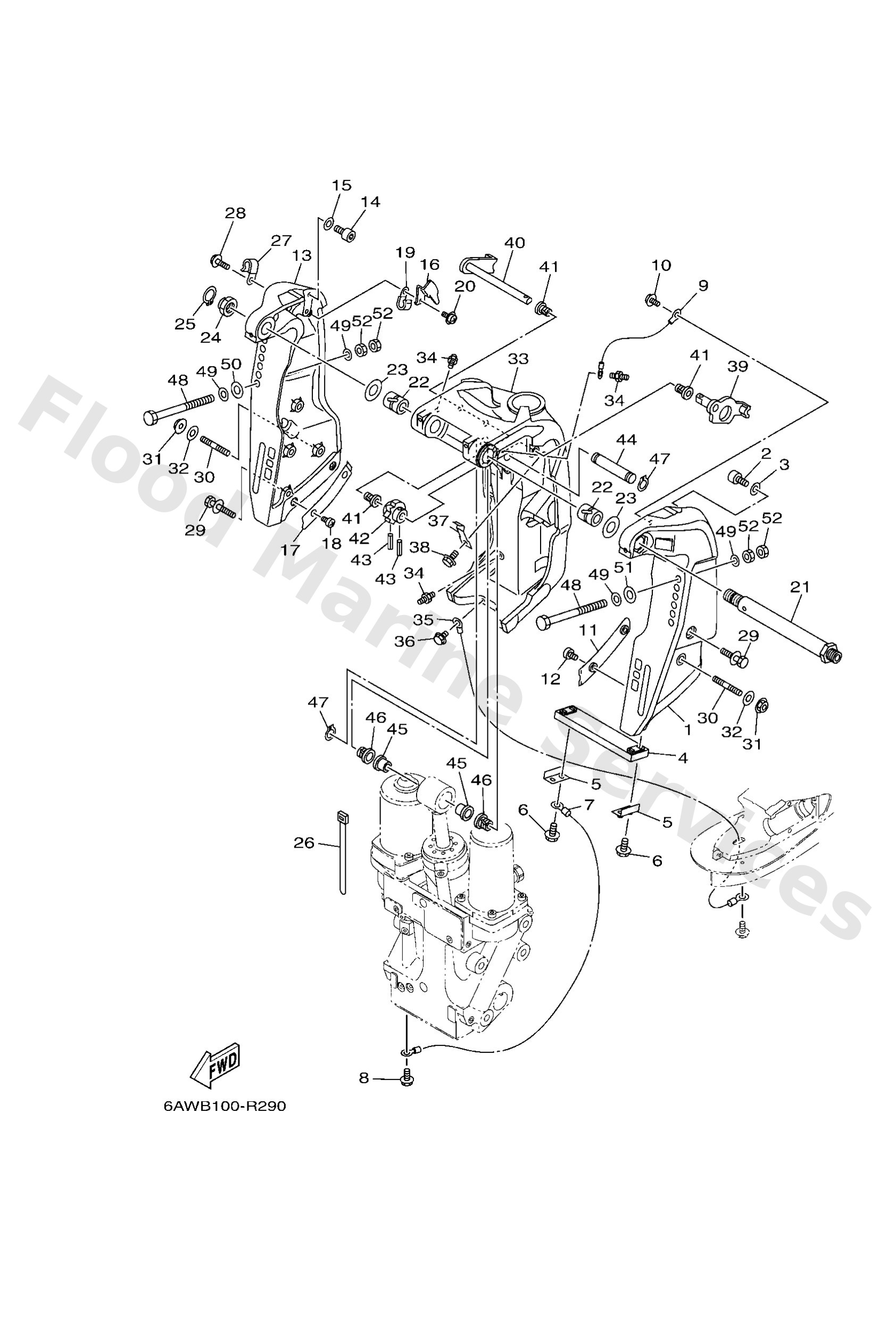

Diagram: BRACKET 1
Parts List
Reference
Description
Price
1
6AW43111008D
Bracket, clamp 1
Loading…
↗
2
9131410020
Bolt,socket
Loading…
↗
3
9020110049
Washer, plate
Loading…
↗
4
6AW4525100
Anode
Loading…
↗
5
6G54452600
Plate
Loading…
↗
6
97E9506530
Bolt, hexagon w/w deep recess
Loading…
↗
7
6H18214800
Wire, lead
Loading…
↗
8
97E9506510
Bolt, hexagon w/w deep recess
Loading…
↗
10
9798506212
Screw, with washer(6h3)
Loading…
↗
11
61A4313200
Washer, friction
Loading…
↗
12
9788506010
Screw pan head
Loading…
↗
13
6AW43112008D
Bracket, clamp 2
Loading…
↗
16
6AW4311300
Plate, clamp bracket
Loading…
↗
17
61A4313300
Washer,friction
Loading…
↗
19
9046508M83
Clamp
Loading…
↗
21
6R34313110
Bolt, clamp bracket
Loading…
↗
22
9038625003
Bush
Loading…
↗
23
9020126014
Washer, plate
Loading…
↗
24
9018522007
Nut, self-locking
Loading…
↗
25
9341021089
Circlip
Loading…
↗
26
9046511M10
Clamp
Loading…
↗
28
97E9506514
Bolt, hexagon w/w deep recess
Loading…
↗
29
9011910039
Bolt, with washer
Loading…
↗
30
9011610047
Bolt, stud
Loading…
↗
31
9578010300
Nut, nylon (6e5)
Loading…
↗
32
9020110048
Washer, plate
Loading…
↗
33
6AW43311008D
Bracket, swivel 1
Loading…
↗
34
9370006002
Nipple, grease
Loading…
↗
35
6E58214700
Wire, lead 5
Loading…
↗
37
6AW4411600
Spring
Loading…
↗
39
6AW4318101
Lever, tilt stop 1
Loading…
↗
40
6AW4318501
Lever, tilt stop 2
Loading…
↗
41
9038610M16
Bushing (688)
Loading…
↗
42
6AW4314800
Collar, distance
Loading…
↗
43
9169030020
Pin, spring (6h4)
Loading…
↗
44
6AW4312601
Pin, upper shock mount
Loading…
↗
45
9038618M63
Bush(6e5)
Loading…
↗
46
9038618M14
Bushing (6e5)
Loading…
↗
47
9341018M05
Circlip (6f2)
Loading…
↗
48
9010112031
Bolt (150mm)
Loading…
↗
49
9020112060
Washer, plate
Loading…
↗
50
9020112426
Washe, plate(663)
Loading…
↗
51
9020113M19
Washer, plate (663)
Loading…
↗
52
9538012600
Nut (707)
Loading…
↗
