FT25FET (2022)
BRACKET 1

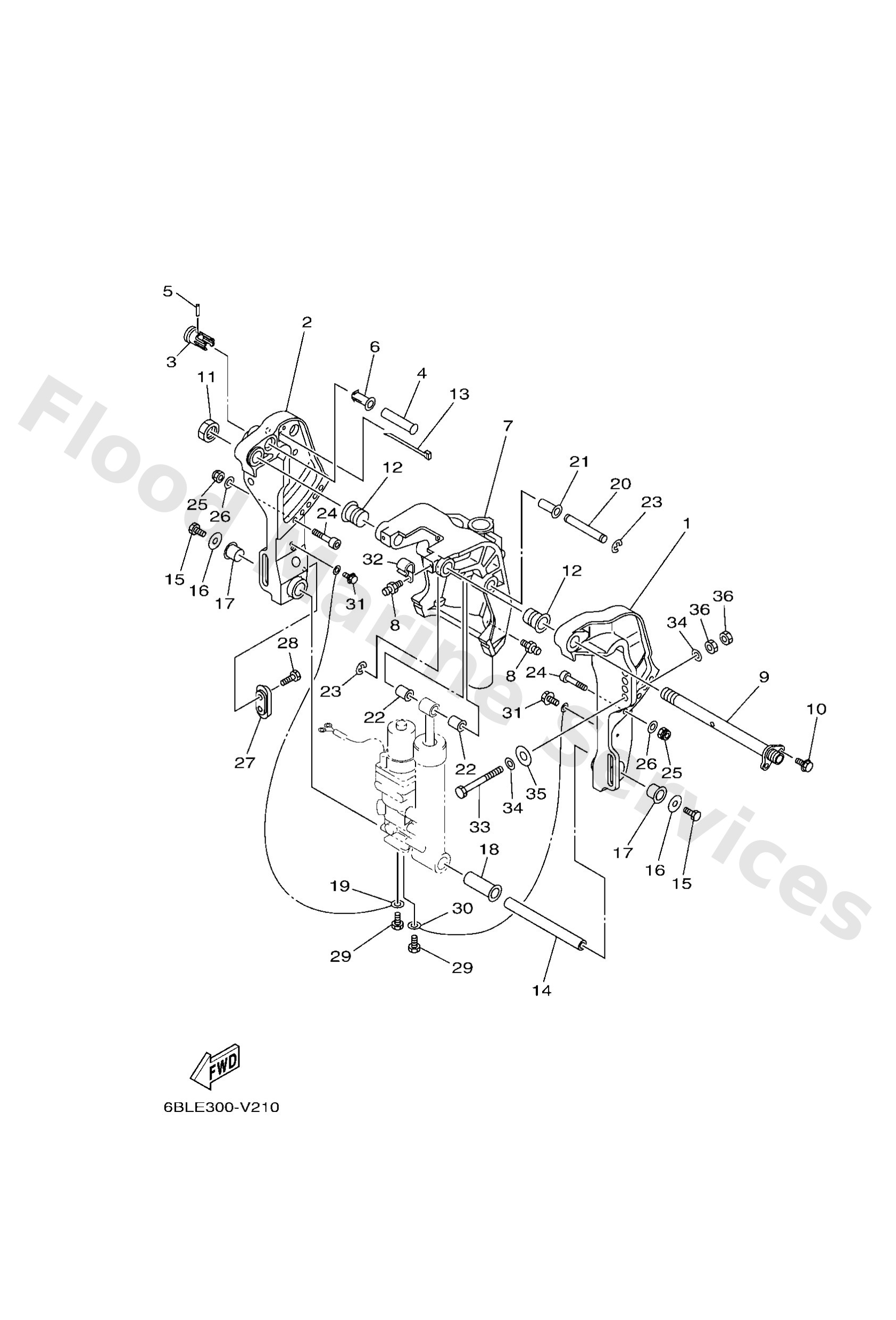

Diagram: BRACKET 1
Parts List
Reference
Description
Price
1
6K943111108D
Bracket, clamp 1
Loading…
↗
2
6BG43112108D
Bracket, clamp 2
Loading…
↗
3
6FM4319200
Knob, stopper
Loading…
↗
4
65W4319100
Shaft, stopper
Loading…
↗
5
9169030018
926-51502-00 pin, spring (700)
Loading…
↗
6
6FM4318900
Bushing
Loading…
↗
7
6BG43311108D
Bracket, swivel 1
Loading…
↗
8
9370006M03
Nipple, grease(6a1)
Loading…
↗
9
6K94313101
Bolt, clamp bracket
Loading…
↗
10
97E9508520
Bolt, hexagon w/w deep recess
Loading…
↗
11
9018522043
Nut, self-locking
Loading…
↗
12
9038622MA4
Bush
Loading…
↗
13
9046513M11
Clamp (6e5)
Loading…
↗
14
9024918M35
Pin, lower shock mount
Loading…
↗
15
9708008016
Bolt
Loading…
↗
16
9020108M00
Washer, plate(6e0)
Loading…
↗
17
9038618M44
Bushing (6g5)
Loading…
↗
18
9038618MA0
Bush
Loading…
↗
19
6H18214800
Wire, lead
Loading…
↗
20
9024912M38
Pin
Loading…
↗
21
9038112M10
Bush, solid
Loading…
↗
22
9038112M11
Bush, solid
Loading…
↗
23
9908010600
Circlip
Loading…
↗
24
9011010M02
Bolt, hexagon socket head
Loading…
↗
25
9018510M13
Nut, self-locking
Loading…
↗
26
9299510600
Washer, plate
Loading…
↗
27
65W4525100
Anode
Loading…
↗
28
9010106020
Bolt
Loading…
↗
29
9708506010
Bolt
Loading…
↗
30
6U08212700
Wire, lead 5
Loading…
↗
31
97E9506514
Bolt, hexagon w/w deep recess
Loading…
↗
32
9046508M07
Clamp (1e6)
Loading…
↗
33
9010112063
Bolt
Loading…
↗
34
9020112062
Washer, plate
Loading…
↗
35
9020112426
Washe, plate(663)
Loading…
↗
36
9538012600
Nut (707)
Loading…
↗
