FT50PEHD (2025)
BRACKET 1

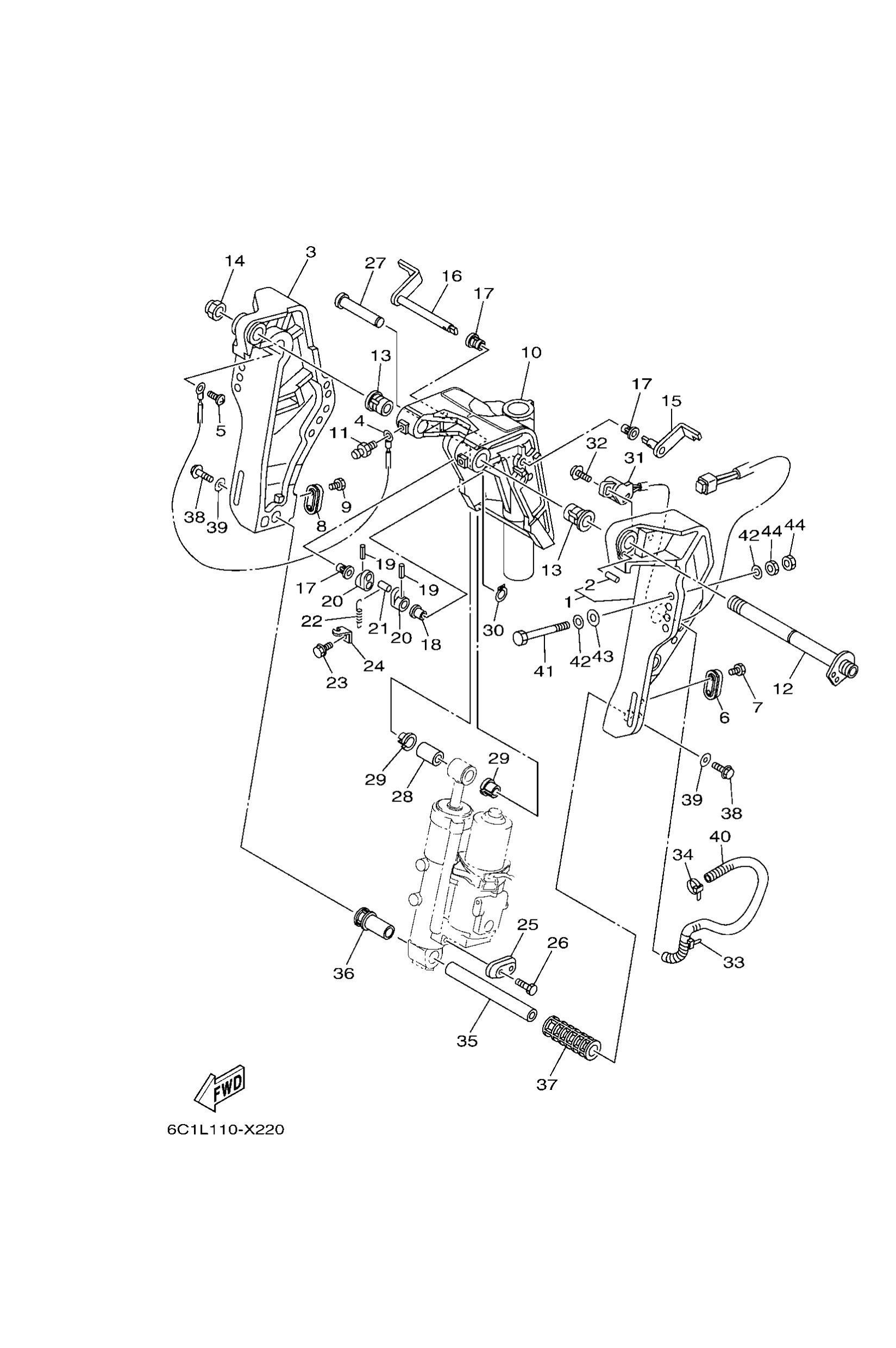

Diagram: BRACKET 1
Parts List
Reference
Description
Price
1
6C543111108D
Bracket, clamp 1
Loading…
↗
2
9360619002
Pin, dowel
Loading…
↗
3
6C543112018D
Bracket, clamp 2
Loading…
↗
4
6E58214800
Wire, lead 5
Loading…
↗
5
9788506008
Screw, pan head(6a3)
Loading…
↗
6
65W4525100
Anode
Loading…
↗
7
9010106020
Bolt
Loading…
↗
10
6C643311008D
-
Loading…
↗
11
9370006002
Nipple, grease
Loading…
↗
12
6C54313100
Bolt, clamp bracket
Loading…
↗
13
9038622MA4
Bush
Loading…
↗
14
9018522M11
Nut, self-locking
Loading…
↗
15
6C54318100
Lever, tilt stop 1
Loading…
↗
16
6C54318500
Lever, tilt stop 2
Loading…
↗
17
9038610M16
Bushing (688)
Loading…
↗
18
9038610025
Bushing (658)
Loading…
↗
19
9169030020
Pin, spring (6h4)
Loading…
↗
20
6G54314800
Collar, distance
Loading…
↗
21
9024906M19
Pin(6e5)
Loading…
↗
22
9050614M24
Spring, tension(6e5)
Loading…
↗
23
97E9506512
Bolt, hexagon w/w deep recess
Loading…
↗
24
6G54314400
Hook, spring
Loading…
↗
27
6E54312602
Pin, upper shock mount
Loading…
↗
28
9038618M92
Bush(62x)
Loading…
↗
29
9038618M35
Bush (688)
Loading…
↗
30
9341018M05
Circlip (6f2)
Loading…
↗
31
63D8367211
Trim sender
Loading…
↗
32
9798506216
Screw, with washer(6h2)
Loading…
↗
33
9046499004
Clamp
Loading…
↗
34
9046511M10
Clamp
Loading…
↗
35
6CJ4381800
Pin, lower shock mount
Loading…
↗
36
6C54383300
Pipe
Loading…
↗
37
6C54383400
Pipe
Loading…
↗
38
9011910054
Bolt, with washer
Loading…
↗
39
9020110060
Washer, plate
Loading…
↗
40
9044719009
Hose, with spring
Loading…
↗
41
9010112063
Bolt
Loading…
↗
42
9020112062
Washer, plate
Loading…
↗
43
9020112426
Washe, plate(663)
Loading…
↗
44
9538012600
Nut (707)
Loading…
↗
