FT9.9DMH (2005)
BRACKET 1

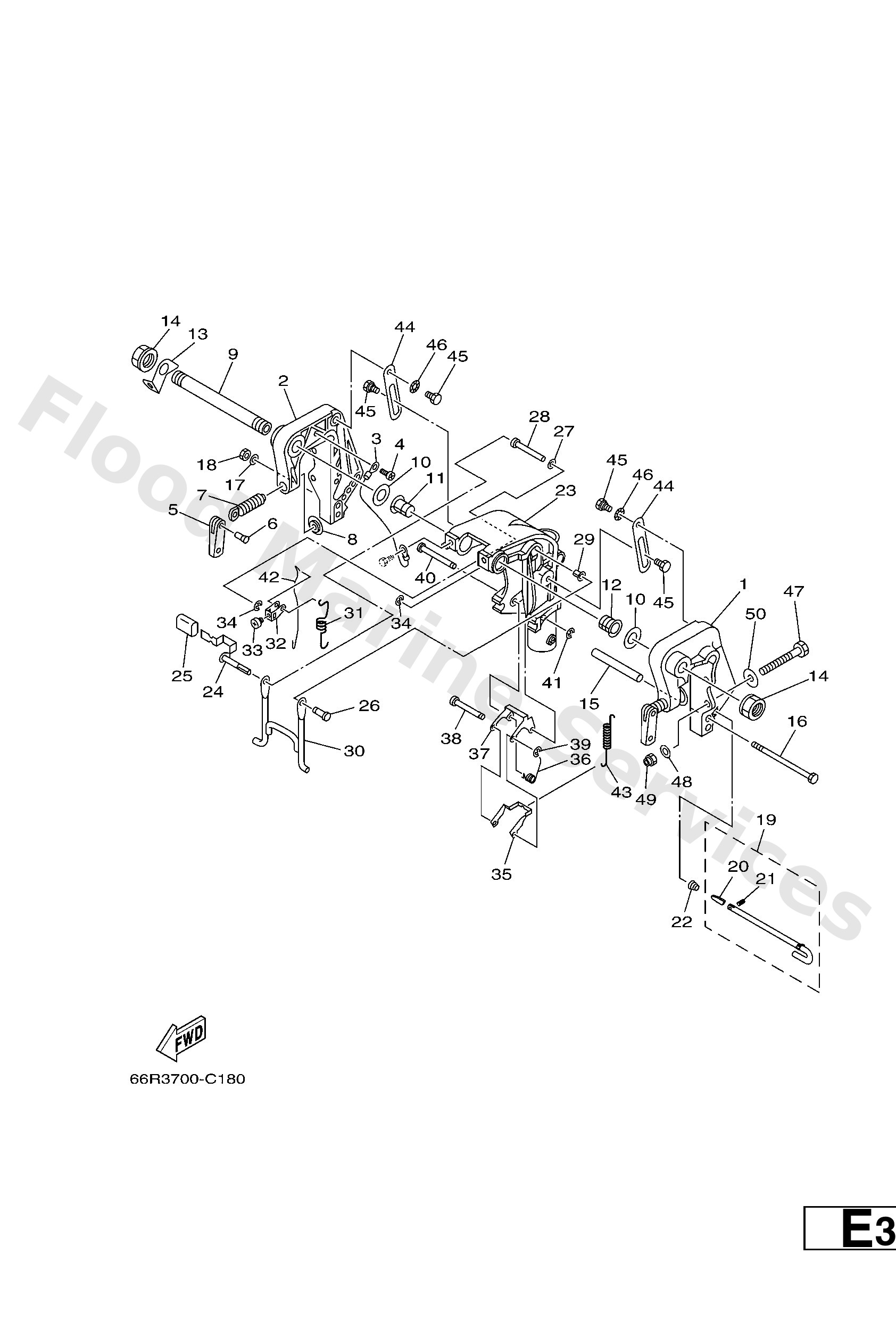

Diagram: BRACKET 1
Parts List
Reference
Description
Price
1
63V43111064D
Bracket, clamp 1
Loading…
↗
2
63V43112074D
Bracket, clamp 2
Loading…
↗
3
66M8214800
Wire, lead 4
Loading…
↗
4
9788506008
Screw, pan head(6a3)
Loading…
↗
5
6E04311801
Handle, transom clamp
Loading…
↗
6
9024304M01
Pin(6a1)
Loading…
↗
7
6E74311600
Screw, transom clamp
Loading…
↗
8
6484311401
Pad, transom clamp
Loading…
↗
9
63W4313110
FOR RIDE GUIDE
Bolt, clamp bracket
Loading…
↗
10
9020222M54
Washer, plate(63v)
Loading…
↗
11
9038622M94
Bush(63v)
Loading…
↗
13
66R4311300
Plate, clamp bracket
Loading…
↗
14
9018522043
Nut, self-locking
Loading…
↗
15
9038706M13
Collar(6h6)
Loading…
↗
16
9010106M29
Bolt, hexagon (682)
Loading…
↗
17
9299506600
Washer, plain (646)
Loading…
↗
18
9538006700
Nut
Loading…
↗
19
66M4316001
Tilt rod assembly
Loading…
↗
20
6894316500
Plate, tilt lock
Loading…
↗
21
9169030008
Pin. spring(656)
Loading…
↗
22
9050210M07
Spring, conical(6k3)
Loading…
↗
23
66M43311104D
Bracket, swivel 1
Loading…
↗
24
66M4363001
Tilt lever assembly
Loading…
↗
25
6824331801
Cover
Loading…
↗
26
63V4319100
Shaft, stopper
Loading…
↗
27
9020207M60
Washer, plate
Loading…
↗
28
9038707M07
Collar
Loading…
↗
29
9038607M95
Bush(63v)
Loading…
↗
30
66M4335001
Receiver assembly
Loading…
↗
31
9050720M00
Spring, tension(63v)
Loading…
↗
32
63V4364101
Lever, tilt
Loading…
↗
33
9015705014
Screw, pan head
Loading…
↗
34
9908005600
Circlip(22k)
Loading…
↗
35
66R4361400
Plate, tilt lock
Loading…
↗
36
9050818M41
Spring, torsion
Loading…
↗
37
66R4361500
Plate, tilt lock
Loading…
↗
38
66R4361100
Shaft, tilt lock
Loading…
↗
39
9343004M03
Circlip (eu0)
Loading…
↗
40
63V4365900
Shaft, reverse lock
Loading…
↗
42
66R4361700
Rod, tilt lock
Loading…
↗
43
9050626M38
Spring, reverse lock 1
Loading…
↗
44
63V4318100
Lever, tilt stop 1
Loading…
↗
45
9010906M84
Bolt
Loading…
↗
46
9020610M24
Washer, wave
Loading…
↗
47
9010108M88
Bolt (6g8)
Loading…
↗
48
9299008600
Washer, plain (663)
Loading…
↗
49
9018508057
Nut, nylon (6j8)
Loading…
↗
50
9020108MA4
Washer, plate (6g8)
Loading…
↗
