L250AETO (2002)
BRACKET 1

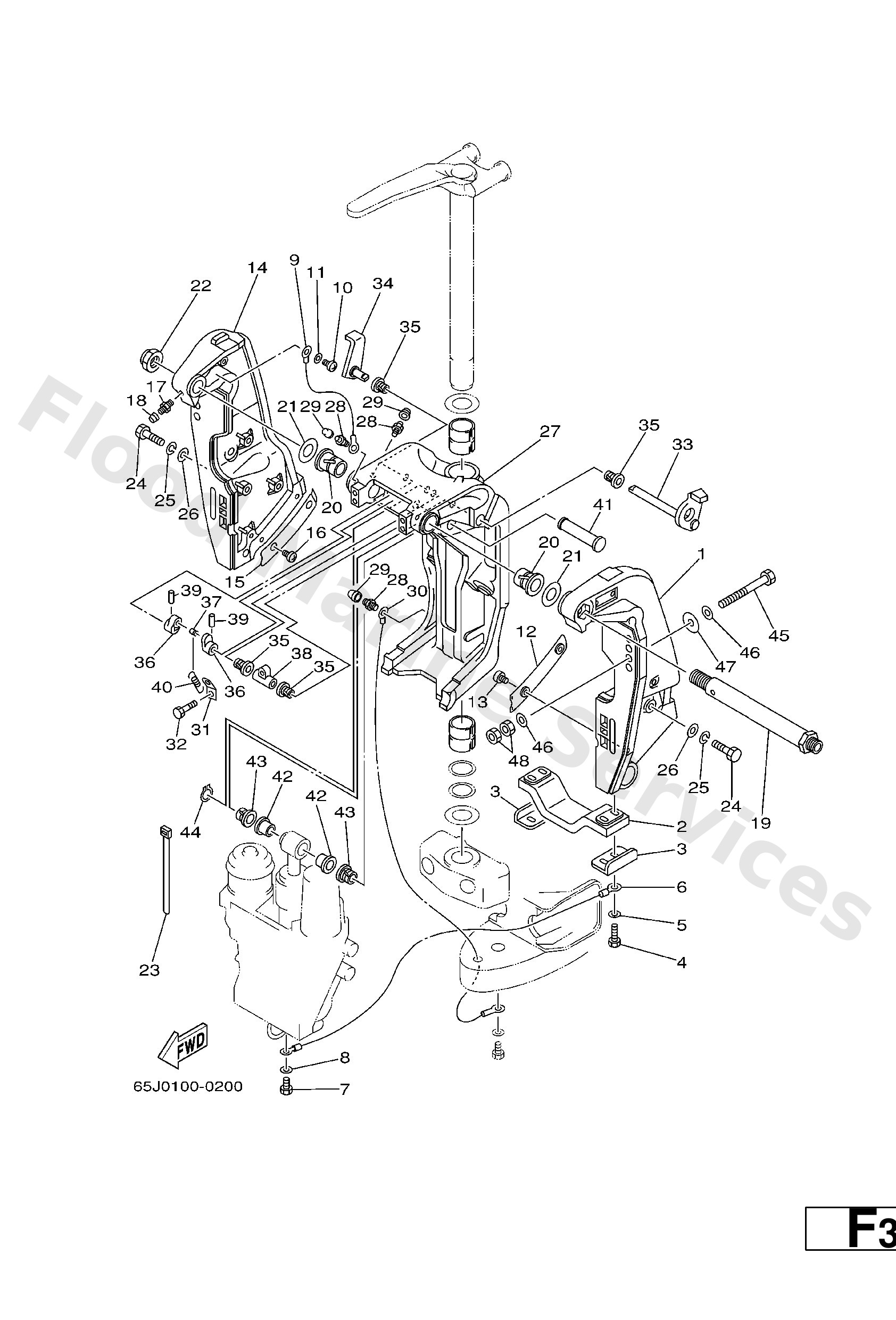

Diagram: BRACKET 1
Parts List
Reference
Description
Price
1
61A−43111−23−8D
Bracket, Clamp
Loading…
↗
2
6G5−45251−01
Anode
Loading…
↗
3
6G5−44526−00
Plate
Loading…
↗
4
97095−06025
Bolt
Loading…
↗
5
92995−06600
Washer, plain (646)
Loading…
↗
6
6H1−82148−00
Wire, lead
Loading…
↗
7
97095−06010
Bolt
Loading…
↗
9
6E5−82148−00
Wire, lead 5
Loading…
↗
10
97885−06012
Screw, pan head(62j)
Loading…
↗
12
61A−43132−00
Washer, friction
Loading…
↗
13
97885−06010
Screw pan head
Loading…
↗
14
61A−43112−23−8D
Bracket, clamp
Loading…
↗
15
61A−43133−00
Washer,friction
Loading…
↗
17
93700−06M03
Nipple, grease(6a1)
Loading…
↗
18
663−45119−00
Cap, grease nipple
Loading…
↗
19
6R3−43131−00
Bolt, clamp bracket
Loading…
↗
20
90386−25M31
Bushing (6e5)
Loading…
↗
21
90201−26M59
Washer, plate (6e5)
Loading…
↗
22
90185−22M11
Nut, self-locking
Loading…
↗
23
90465−11M10
Clamp
Loading…
↗
24
97095−10045
Bolt(64d)
Loading…
↗
25
92995−10100
Ybs67-10 washer, spring
Loading…
↗
26
92995−10600
Washer, plate
Loading…
↗
27
61A−43311−21−8D
X
Bracket, swivel 1
Loading…
↗
30
61A−82147−20
X
Wire, lead 5
Loading…
↗
31
6G5−43144−00
Hook, spring
Loading…
↗
33
61A−43181−01
Lever, tilt stop 1
Loading…
↗
34
6G5−43185−02
Lever, tilt stop 2
Loading…
↗
35
90386−10M16
Bushing (688)
Loading…
↗
36
6G5−43148−00
Collar, distance
Loading…
↗
37
90249−06M19
Pin(6e5)
Loading…
↗
38
90387−10M02
Collar(6e5)
Loading…
↗
39
91690−30020
Pin, spring (6h4)
Loading…
↗
40
90506−14M24
Spring, tension(6e5)
Loading…
↗
41
6E5−43126−02
Pin, upper shock mount
Loading…
↗
42
90386−18M63
Bush(6e5)
Loading…
↗
43
90386−18M14
Bushing (6e5)
Loading…
↗
44
93410−18M02
Circlip (6f2)
Loading…
↗
45
90101−12M05
Bolt (l:130mm)
Loading…
↗
46
90201−13M01
Washer, plate(6e5)
Loading…
↗
47
90201−12M05
Washe, plate(663)
Loading…
↗
48
95380−12600
Nut (707)
Loading…
↗
