Z200NETO (2002)
BRACKET 1

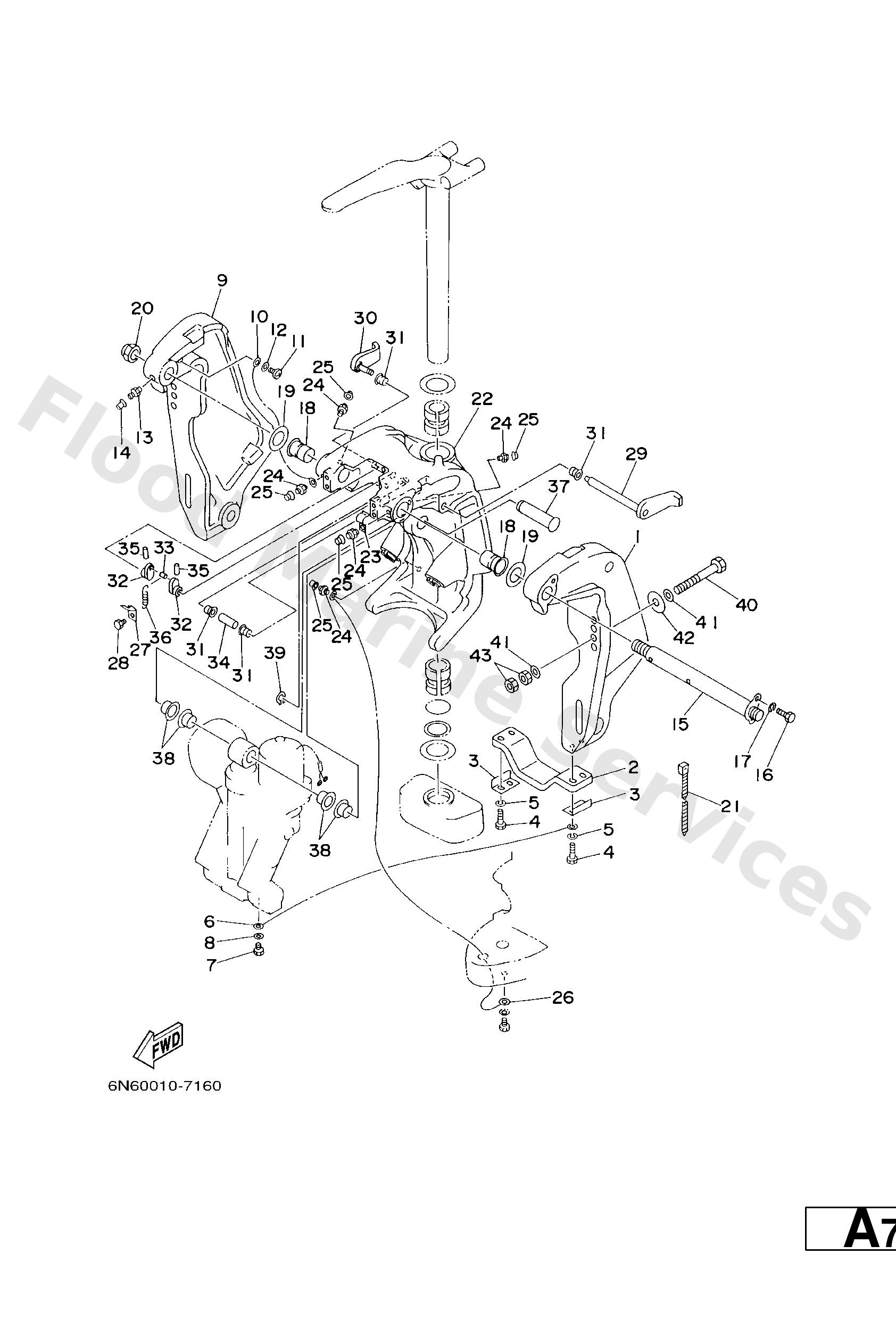

Diagram: BRACKET 1
Parts List
Reference
Description
Price
1
64E--43111--02--8D
Bracket, clamp
Loading…
↗
2
6G5--45251--02
Anode
Loading…
↗
3
6G5--44526--00
Plate
Loading…
↗
4
97095--06030
Bolt(jf7)
Loading…
↗
5
92995--06100
Washer(6a1)
Loading…
↗
6
6E5--82148--00
Wire, lead 5
Loading…
↗
7
97095--06010
Bolt
Loading…
↗
8
92995--06600
Washer, plain (646)
Loading…
↗
9
64E--43112--02--8D
Bracket, clamp
Loading…
↗
11
97880--06012
Screw, pan head(62j)
Loading…
↗
12
92990--06600
Washer, plain (646)
Loading…
↗
13
93700--06M03
Nipple, grease(6a1)
Loading…
↗
14
663--45119--00
AP
Cap, grease nipple
Loading…
↗
15
64E--43131--01
Bolt, clamp bracket
Loading…
↗
16
97095--08020
Bolt, hexagon
Loading…
↗
17
92995--08100
Ybs67-8 washer, spring
Loading…
↗
18
90386--25M31
Bushing (6e5)
Loading…
↗
19
90201--26M59
Washer, plate (6e5)
Loading…
↗
20
90185--22M11
Nut, self-locking
Loading…
↗
21
90465--11M10
Clamp
Loading…
↗
22
64E--43311--10--8D
L
Bracket, swibel
Loading…
↗
22
64E--43311--20--8D
X
Bracket, swibel
Loading…
↗
23
90465--08M63
Clamp(61u)
Loading…
↗
26
6E5--82147--00
L
Wire, lead 5
Loading…
↗
26
6E5--82147--20
X
Wire, lead 5
Loading…
↗
27
6G5--43144--00
Hook, spring
Loading…
↗
29
6G5--43181--02
Lever, tilt stop 1
Loading…
↗
30
6G5--43185--02
Lever, tilt stop 2
Loading…
↗
31
90386--10M16
Bushing (688)
Loading…
↗
32
6G5--43148--00
Collar, distance
Loading…
↗
33
90249--06M19
Pin(6e5)
Loading…
↗
34
90387--10M05
Collar(6e5)
Loading…
↗
35
91690--30020
Pin, spring (6h4)
Loading…
↗
36
90506--14M24
Spring, tension(6e5)
Loading…
↗
37
64E--43126--00
Pin, upper shock mount
Loading…
↗
38
90386--22M98
Bush(61u)
Loading…
↗
39
93410--22M11
Circlip(61u)
Loading…
↗
40
90101--12M03
Bolt (l:115mm)
Loading…
↗
40
90101--12M05
Bolt (l:130mm)
Loading…
↗
41
90201--13M01
Washer, plate(6e5)
Loading…
↗
42
90201--12M05
Washe, plate(663)
Loading…
↗
43
95380--12600
Nut (707)
Loading…
↗
