Z250FETO (2005)
BRACKET 1

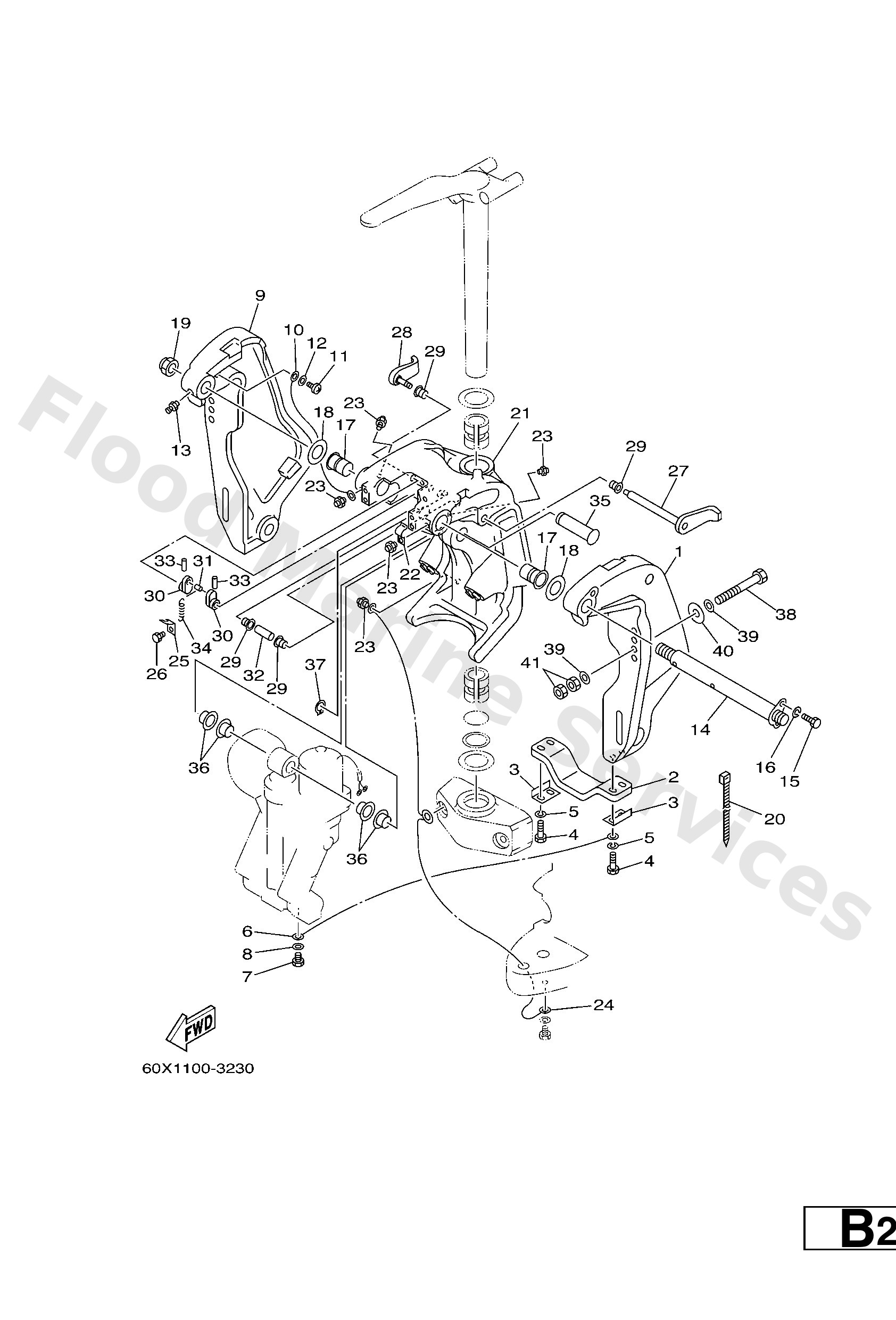

Diagram: BRACKET 1
Parts List
Reference
Description
Price
1
64E43111028D
Bracket, clamp
Loading…
↗
2
6G54525102
Anode
Loading…
↗
3
6G54452600
Plate
Loading…
↗
4
9709506030
Bolt(jf7)
Loading…
↗
5
9299506100
Washer(6a1)
Loading…
↗
6
6E58214800
Wire, lead 5
Loading…
↗
7
9709506010
Bolt
Loading…
↗
8
9299506600
Washer, plain (646)
Loading…
↗
9
64E43112028D
Bracket, clamp
Loading…
↗
11
9788006012
Screw, pan head(62j)
Loading…
↗
12
9299006600
Washer, plain (646)
Loading…
↗
13
9370006M03
Nipple, grease(6a1)
Loading…
↗
14
64E4313101
Bolt, clamp bracket
Loading…
↗
15
9709508020
Bolt, hexagon
Loading…
↗
16
9299508100
Ybs67-8 washer, spring
Loading…
↗
17
9038625M31
Bushing (6e5)
Loading…
↗
18
9020126M59
Washer, plate (6e5)
Loading…
↗
19
9018522M11
Nut, self-locking
Loading…
↗
20
9046511M10
Clamp
Loading…
↗
21
64E43311108D
Bracket, swibel
Loading…
↗
22
9046508M63
Clamp(61u)
Loading…
↗
24
66K8214900
Wire, lead 3
Loading…
↗
25
6G54314400
Hook, spring
Loading…
↗
27
6G54318102
Lever, tilt stop 1
Loading…
↗
28
6G54318502
Lever, tilt stop 2
Loading…
↗
29
9038610M16
Bushing (688)
Loading…
↗
30
6G54314800
Collar, distance
Loading…
↗
31
9024906M19
Pin(6e5)
Loading…
↗
32
9038710M05
Collar(6e5)
Loading…
↗
33
9169030020
Pin, spring (6h4)
Loading…
↗
34
9050616003
Spring, tension
Loading…
↗
35
64E4312600
Pin, upper shock mount
Loading…
↗
36
9038622M98
Bush(61u)
Loading…
↗
37
9341022M11
Circlip(61u)
Loading…
↗
38
9010112M05
UR
Bolt (l:130mm)
Loading…
↗
38
9010112M77
UR
Bolt (l:150mm)
Loading…
↗
39
9020113M01
Washer, plate(6e5)
Loading…
↗
40
9020112M05
Washe, plate(663)
Loading…
↗
41
9538012600
Nut (707)
Loading…
↗
