115CETO (2013)
BRACKET 2

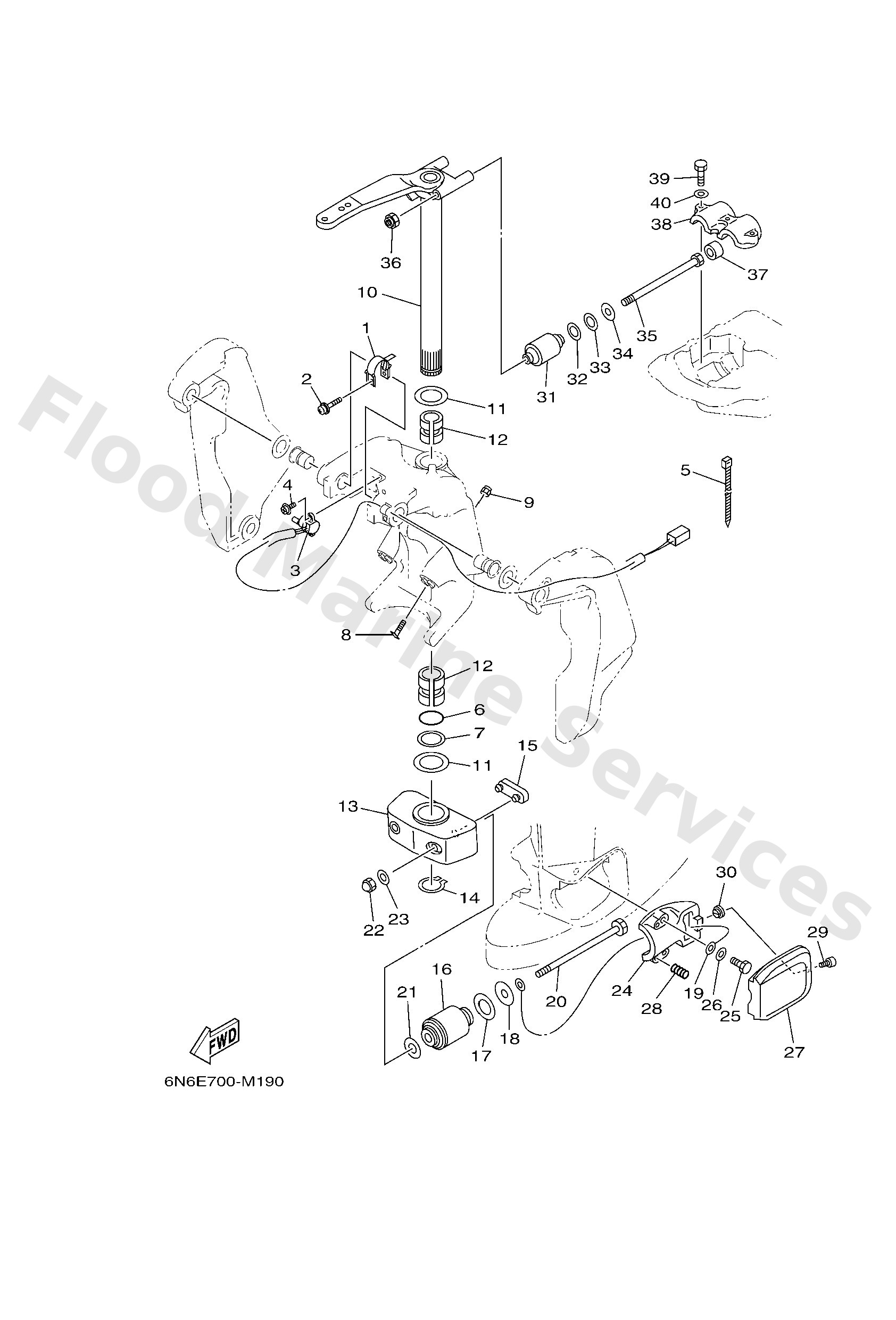

Diagram: BRACKET 2
Parts List
Reference
Description
Price
1
64E4313910
Cam, trim sender
Loading…
↗
2
9015905059
Screw, with washer
Loading…
↗
3
67H8367201
Trim sender
Loading…
↗
4
9798506216
Screw, with washer(6h2)
Loading…
↗
5
9046511M10
Clamp
Loading…
↗
6
9321037MH7
O-ring(61u)
Loading…
↗
7
9020240M47
Washer, plate(61a)
Loading…
↗
8
61A4337600
Bolt, thrust receiver
Loading…
↗
9
9578010300
Nut, nylon (6e5)
Loading…
↗
10
6E542510C08D
L(20.3")
Steering bracket assembly
Loading…
↗
11
9020138M60
Washer, plate (6e5)
Loading…
↗
12
9038638M32
Bush(6e5)
Loading…
↗
13
6G544551018D
Housing, lower mount rubber
Loading…
↗
14
9341037M04
Circlip (6e5)
Loading…
↗
15
6E54457500
Damper, lower mount rubber
Loading…
↗
16
6E54455500
Mount damper, lower side
Loading…
↗
17
9020232M19
Washer, plate (6e5)
Loading…
↗
18
9020116M55
Washer, plate (6e5)
Loading…
↗
19
6E58214900
Wire, lead 3
Loading…
↗
20
9010914M34
Bolt(6e5)
Loading…
↗
21
9020115M58
Washer, plate (6e5)
Loading…
↗
22
9538014800
Nut, crown (6e5)
Loading…
↗
23
9299514600
Washer (6e5)
Loading…
↗
24
6E54455201CA
Housing, lower mount rubber
Loading…
↗
25
9709510045
Bolt(64d)
Loading…
↗
26
9299510600
Washer, plate
Loading…
↗
27
6E544553018D
Cover, lower mount
Loading…
↗
28
9050116M28
Spring (6e5)
Loading…
↗
29
9788506016
Screw, pan head(6b0)
Loading…
↗
30
9017906066
Nut(663)
Loading…
↗
31
6E54451400
Mount damper, upper side
Loading…
↗
32
9020126M57
Washer, plate (6e5)
Loading…
↗
33
9020226M18
Washer, plate (6e5)
Loading…
↗
34
9020114M56
Washer, plate (6e5)
Loading…
↗
35
9010912007
Bolt
Loading…
↗
36
9018512M12
Nut, self-locking(6e5)
Loading…
↗
37
6634457500
Damper, lower mount rubber
Loading…
↗
38
6E5445110094
Cover, upper mount
Loading…
↗
