115TRC (2004)
BRACKET 2

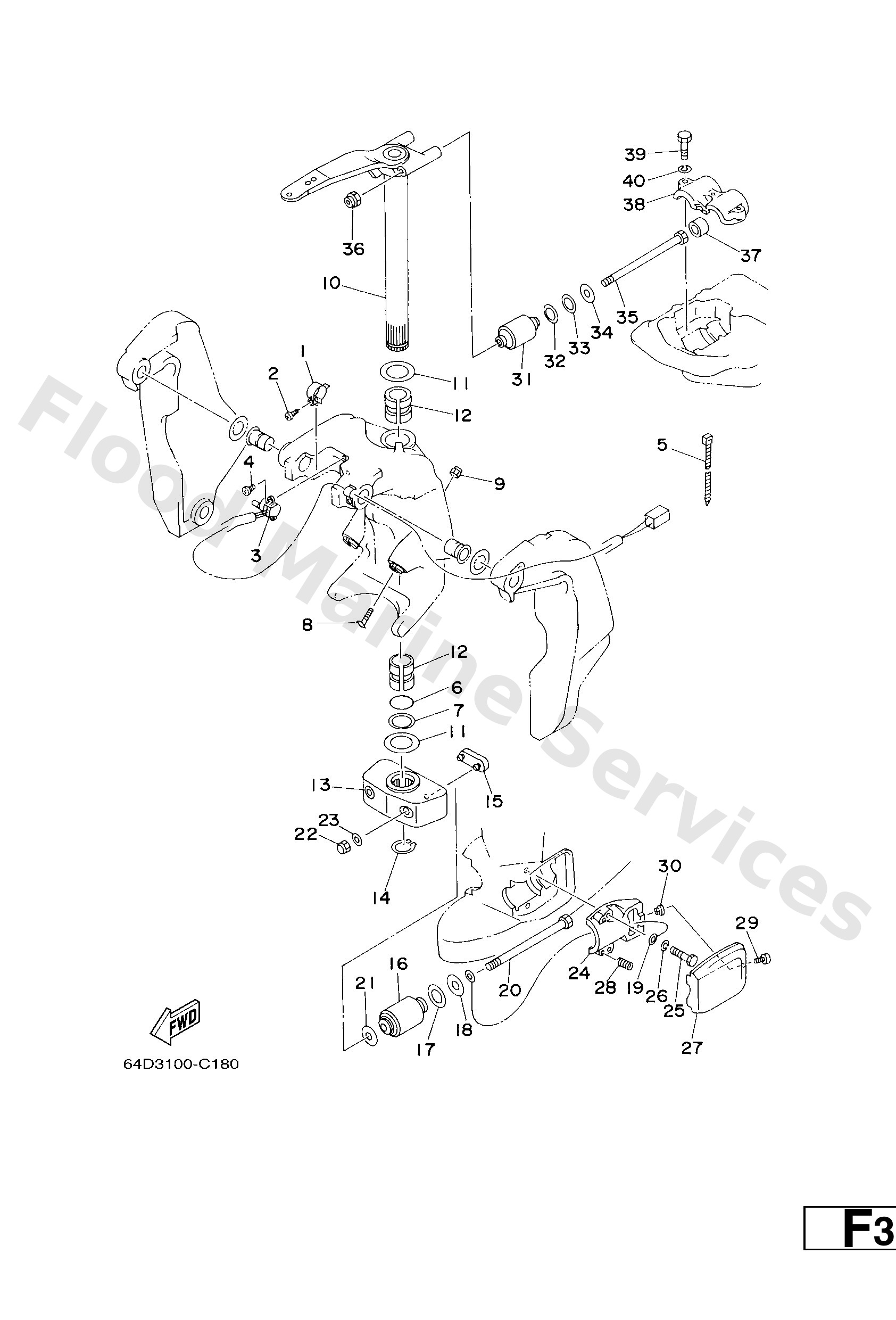

Diagram: BRACKET 2
Parts List
Reference
Description
Price
1
64E4313902
Cam, trim sender (with screw)
Loading…
↗
2
9778060525
Screw, tapping(65j)
Loading…
↗
3
64E8367202
FOR OCE,CAR,BRA
Trim sender
Loading…
↗
3
67H8367200
FOR USA
Trim sender
Loading…
↗
4
9788506016
Screw, pan head(6b0)
Loading…
↗
5
9046511M10
Clamp
Loading…
↗
6
9321037MH7
O-ring(61u)
Loading…
↗
7
9020240M47
Washer, plate(61a)
Loading…
↗
8
61A4337600
Bolt, thrust receiver
Loading…
↗
9
9578010300
Nut, nylon (6e5)
Loading…
↗
10
6E542510A18D
L
Steering bracket assembly
Loading…
↗
10
6E542510B18D
X
Steering bracket assembly
Loading…
↗
11
9020138M60
Washer, plate (6e5)
Loading…
↗
12
9038638M32
Bush(6e5)
Loading…
↗
13
6G544551018D
Housing, lower mount rubber
Loading…
↗
14
9341037M04
Circlip (6e5)
Loading…
↗
15
6E54457500
Damper, lower mount rubber
Loading…
↗
16
6E5445550094
Mount damper, lower side
Loading…
↗
17
9020232M19
Washer, plate (6e5)
Loading…
↗
18
9020116M55
Washer, plate (6e5)
Loading…
↗
19
6E58214900
Wire, lead 3
Loading…
↗
20
9010914M34
Bolt(6e5)
Loading…
↗
21
9020115M58
Washer, plate (6e5)
Loading…
↗
22
9538014800
Nut, crown (6e5)
Loading…
↗
23
9299514600
Washer (6e5)
Loading…
↗
24
6E5445520194
Housing, lower mount rubber
Loading…
↗
25
9709510045
Bolt(64d)
Loading…
↗
26
9299510100
Ybs67-10 washer, spring
Loading…
↗
27
6E544553018D
Cover, lower mount
Loading…
↗
28
9050116M28
Spring (6e5)
Loading…
↗
30
9017906066
Nut(663)
Loading…
↗
31
6E5445140094
Mount damper, upper side
Loading…
↗
32
9020126M57
Washer, plate (6e5)
Loading…
↗
33
9020226M18
Washer, plate (6e5)
Loading…
↗
34
9020114M56
Washer, plate (6e5)
Loading…
↗
35
9010912M37
Bolt
Loading…
↗
36
9018512M12
Nut, self-locking(6e5)
Loading…
↗
37
6634457500
Damper, lower mount rubber
Loading…
↗
38
6E544511005B
Cover, upper mount
Loading…
↗
