15FWC (2002)
BRACKET 2

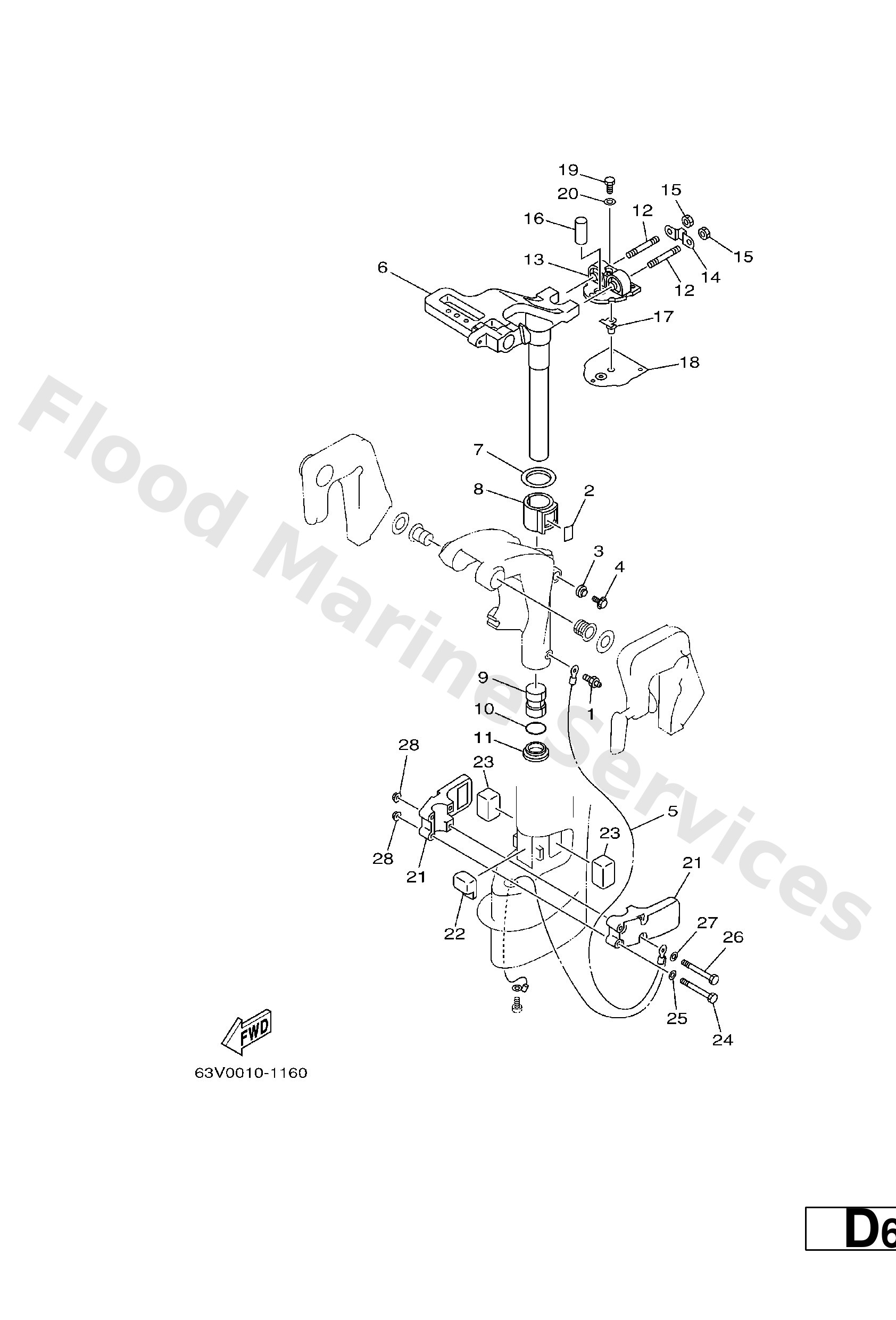

Diagram: BRACKET 2
Parts List
Reference
Description
Price
1
93700--06M03
Nipple, grease(6a1)
Loading…
↗
2
63V--42528--00
Plate, friction
Loading…
↗
3
689--43373--01
Seal, damper
Loading…
↗
4
90105--06M07
Bolt (689)
Loading…
↗
5
63V--82127--00
Wire, lead 2
Loading…
↗
6
63V--42511--04--4D
Bracket, steering
Loading…
↗
7
90209--40008
Washer
Loading…
↗
8
65F--42537--00
Bushing, pivot shaft
Loading…
↗
9
90386--30048
Bush
Loading…
↗
10
93210--29M94
O-ring(6h1)
Loading…
↗
11
90386--30M60
Bush(6j8)
Loading…
↗
12
90116--08M54
Bolt, stud(63v)
Loading…
↗
13
63V44514015B
Mount damper, upper side
Loading…
↗
14
63V--44526--00
Plate
Loading…
↗
15
95380--08600
Nut (661)
Loading…
↗
16
90387--16002
Collar
Loading…
↗
17
63V--44366--01
Damper, water seal 2
Loading…
↗
18
63V45114A0
Gasket, upper casing
Loading…
↗
19
97095--06018
Bolt (fj0)
Loading…
↗
20
92995--06600
Washer, plain (646)
Loading…
↗
21
63V--44551--01--4D
Housing, lower mount rubber 1
Loading…
↗
22
63V--44557--00
Mount damper, lower front
Loading…
↗
23
682--44555--00
Mount damper, lower side
Loading…
↗
24
9707506055
Bolt, hexagon w/w deep recess
Loading…
↗
26
9707506075
Bolt, hexagon w/w deep recess
Loading…
↗
28
90179--06M28
Nut(63v)
Loading…
↗
