20CMH (2002)
BRACKET 2

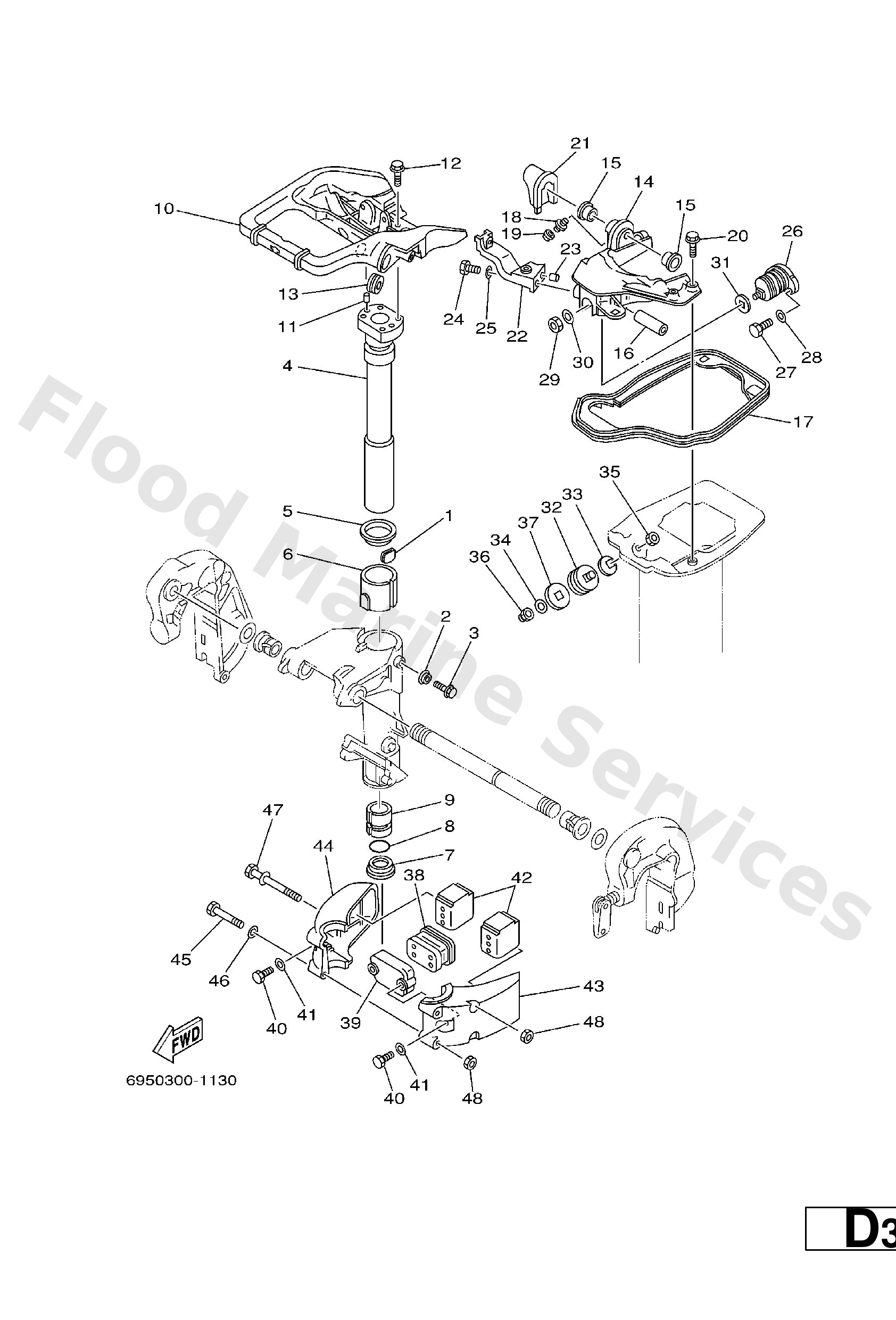

Diagram: BRACKET 2
Parts List
Reference
Description
Price
1
648--42528--00
Plate, friction
Loading…
↗
2
689--43373--01
Seal, damper
Loading…
↗
3
90105--06M18
Bolt (689)
Loading…
↗
4
689--42521--00--94
Shaft, steering pivot
Loading…
↗
5
90209--47016
Washer 648425350000
Loading…
↗
6
90386--47M22
Bushing (695)
Loading…
↗
7
90386--38022
Bush(648-42539-00)
Loading…
↗
8
93210--37160
O-ring (6g8)
Loading…
↗
9
90386--38090
Bushing (664)
Loading…
↗
10
69P--42511--00--4D
Bracket, steering
Loading…
↗
11
93608--12063
Pin, dowel (626)
Loading…
↗
12
90105--06M07
Bolt (689)
Loading…
↗
13
90480--29045
Grommet 648425510000
Loading…
↗
14
648--44518--01--94
Bracket comp.
Loading…
↗
15
90381--12M01
Bush, solid(6a4)
Loading…
↗
16
90387--10M39
Coller (689)
Loading…
↗
17
689--42716--00
Rubber, Seal 1
Loading…
↗
18
93700--06M03
Nipple, grease(6a1)
Loading…
↗
19
663--45119--00
AP
Cap, grease nipple
Loading…
↗
20
90105--06M08
Bolt (689)
Loading…
↗
21
689--42718--00
Rubber, seal 3
Loading…
↗
22
648--44519--00--94
Bracket
Loading…
↗
23
93606--12019
Pin, dowel (614)
Loading…
↗
24
9709006018
Bolt (fj0)
Loading…
↗
25
92990--06600
Washer, plain (646)
Loading…
↗
26
689--44516--00
Mount damper, upper front
Loading…
↗
27
97095--06020
Bolt(7u8)
Loading…
↗
28
92995--06600
Washer, plain (646)
Loading…
↗
29
90170--10M42
Nut
Loading…
↗
30
92990--10200
958-69527-00 washer, plain
Loading…
↗
31
648--44591--A0
Gasket
Loading…
↗
32
664--44514--00--94
Mount damper, upper side
Loading…
↗
36
90176--10M01
Nut, crown
Loading…
↗
37
664--44591--A0
Gasket
Loading…
↗
38
689--44557--00
Mount damper, lower front
Loading…
↗
39
689--44553--00--94
Cover, lower mount
Loading…
↗
40
97075--08025
Bolt, hexagon deep recess
Loading…
↗
41
92995--08600
Washer, plain (663)
Loading…
↗
42
689--44555--00
Mount damper, lower side
Loading…
↗
43
689--44551--01--4D
Housing, lower mount rubber 1
Loading…
↗
44
689--44552--01--4D
Housing, lower mount rubber 2
Loading…
↗
45
97095--08065
Bolt (gk02)
Loading…
↗
47
90119--08M03
Bolt (689)
Loading…
↗
48
95380--08600
Nut (661)
Loading…
↗
