225GETO (1999)
BRACKET 2

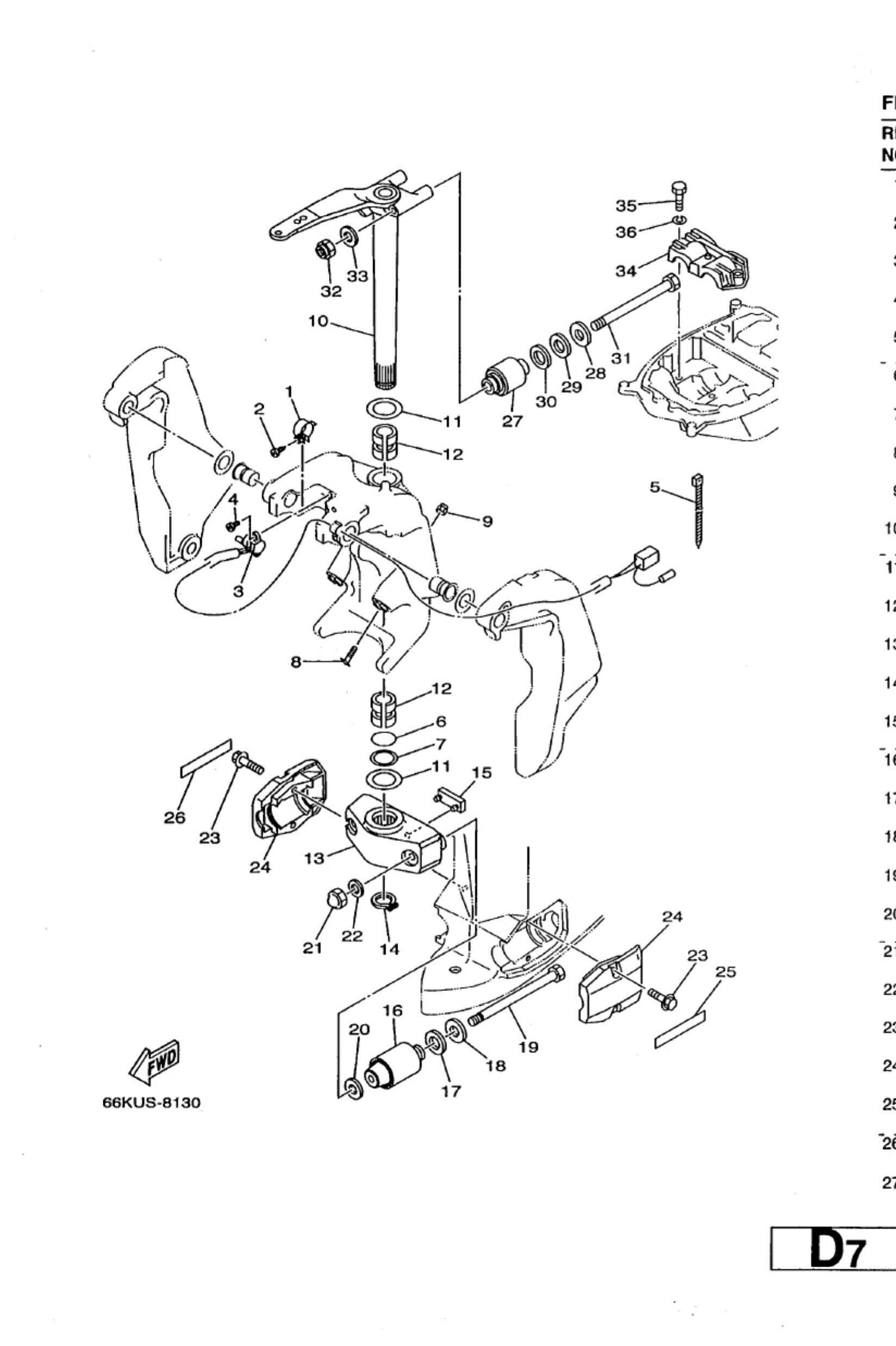

Diagram: BRACKET 2
Parts List
Reference
Description
Price
1
64E4313900
Cam, trim sender (with screw)
Loading…
↗
2
9778060525
Screw, tapping(65j)
Loading…
↗
3
64E8367200
Trim sender
Loading…
↗
4
9788506016
Screw, pan head(6b0)
Loading…
↗
5
9046511M10
Clamp
Loading…
↗
6
9321037MH7
O-ring(61u)
Loading…
↗
7
9020240M47
Washer, plate(61a)
Loading…
↗
8
B4E4337600
Bolt, Thrust Receiver
Loading…
↗
9
9578010300
Nut, nylon (6e5)
Loading…
↗
10
66K42510008D
Steering bracket assembly
Loading…
↗
11
9020138M60
Washer, plate (6e5)
Loading…
↗
12
9038638M32
Bush(6e5)
Loading…
↗
13
66K44551008D
Housing, lower mount rubber
Loading…
↗
14
9341037M04
Circlip (6e5)
Loading…
↗
15
6E54457500
Damper, lower mount rubber
Loading…
↗
16
61A445550194
Mount damper, lower side
Loading…
↗
17
9020232M19
Washer, plate (6e5)
Loading…
↗
18
9020116M55
Washer, plate (6e5)
Loading…
↗
19
9010914M80
Bolt
Loading…
↗
20
9020115M58
Washer, plate (6e5)
Loading…
↗
22
9299514600
Washer (6e5)
Loading…
↗
23
9010110M70
Bolt(6j9)
Loading…
↗
23
66KUS8130
25 65N-43155-N0
Loading…
↗
27
61A445140094
Mount Damper, Upper Side
Loading…
↗
28
9020116M01
Washer, plate(61a)
Loading…
↗
29
9020228M46
Washer, plate(61a)
Loading…
↗
30
9020128M01
Washer, plate(61a)
Loading…
↗
31
9010914M10
Bolt
Loading…
↗
32
9018514M00
Nut, self-locking(61a)
Loading…
↗
34
61A445110094
Cover, upper mount
Loading…
↗
35
9709510045
Bolt(64d)
Loading…
↗
36
9299510600
Washer, plate
Loading…
↗
