250GETO (2008)
BRACKET 2

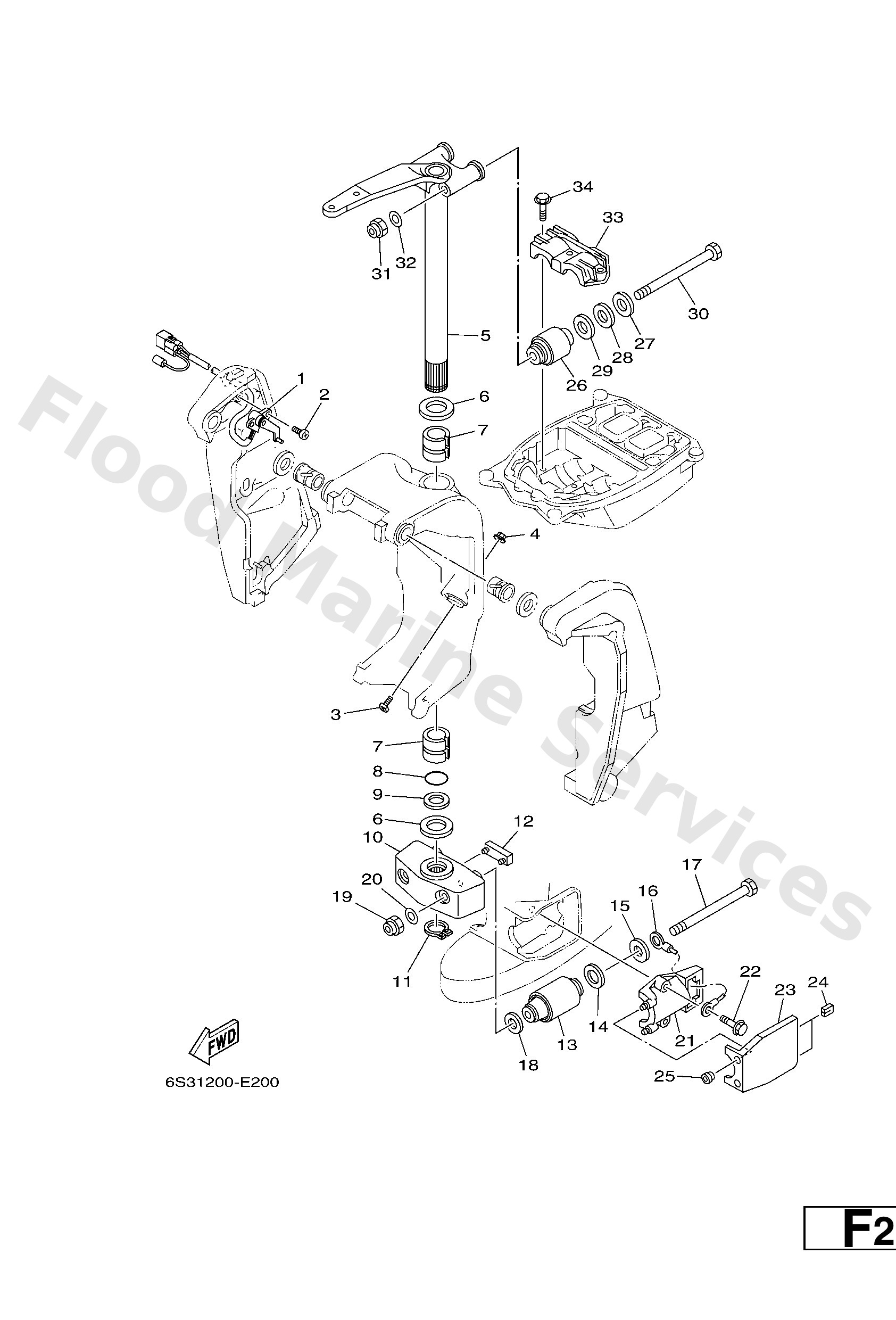

Diagram: BRACKET 2
Parts List
Reference
Description
Price
1
69J8367200
Trim sender
Loading…
↗
2
9788506016
Screw, pan head(6b0)
Loading…
↗
3
61A4337600
Bolt, thrust receiver
Loading…
↗
4
9578010300
Nut, nylon (6e5)
Loading…
↗
5
69J42510008D
X(25.3")
Steering bracket assembly
Loading…
↗
6
9020140M00
Washer, plate(61a)
Loading…
↗
7
9038639M89
Bush(61a)
Loading…
↗
8
9321035321
O-ring (3m7)
Loading…
↗
9
9020240M47
Washer, plate(61a)
Loading…
↗
10
61A44551018D
Housing, lower mount rubber
Loading…
↗
11
9341037M04
Circlip (6e5)
Loading…
↗
12
61A4457500
Damper, lower mount rubber
Loading…
↗
13
60V445550094
Mount damper, lower side
Loading…
↗
14
9020232M19
Washer, plate (6e5)
Loading…
↗
15
9020116016
Washer, plate
Loading…
↗
16
6E58214900
Wire, lead 3
Loading…
↗
17
9010114002
Bolt
Loading…
↗
18
9020115M58
Washer, plate (6e5)
Loading…
↗
19
9538014800
Nut, crown (6e5)
Loading…
↗
20
9299514600
Washer (6e5)
Loading…
↗
21
61A445520194
Housing, lower mount rubber
Loading…
↗
22
9011910024
Bolt, with washer
Loading…
↗
23
61A44553028D
Cover, lower mount
Loading…
↗
24
6S31578901
Damper
Loading…
↗
25
6A01578900
Damper
Loading…
↗
26
60V445140094
Mount damper, upper side
Loading…
↗
27
9020116015
Washer, plate
Loading…
↗
28
9020228M46
Washer, plate(61a)
Loading…
↗
29
9020128M01
Washer, plate(61a)
Loading…
↗
30
9010114003
Bolt
Loading…
↗
31
9018514M00
Nut, self-locking(61a)
Loading…
↗
33
61A445110194
Cover, upper mount
Loading…
↗
