25BMH (2003)
BRACKET 2

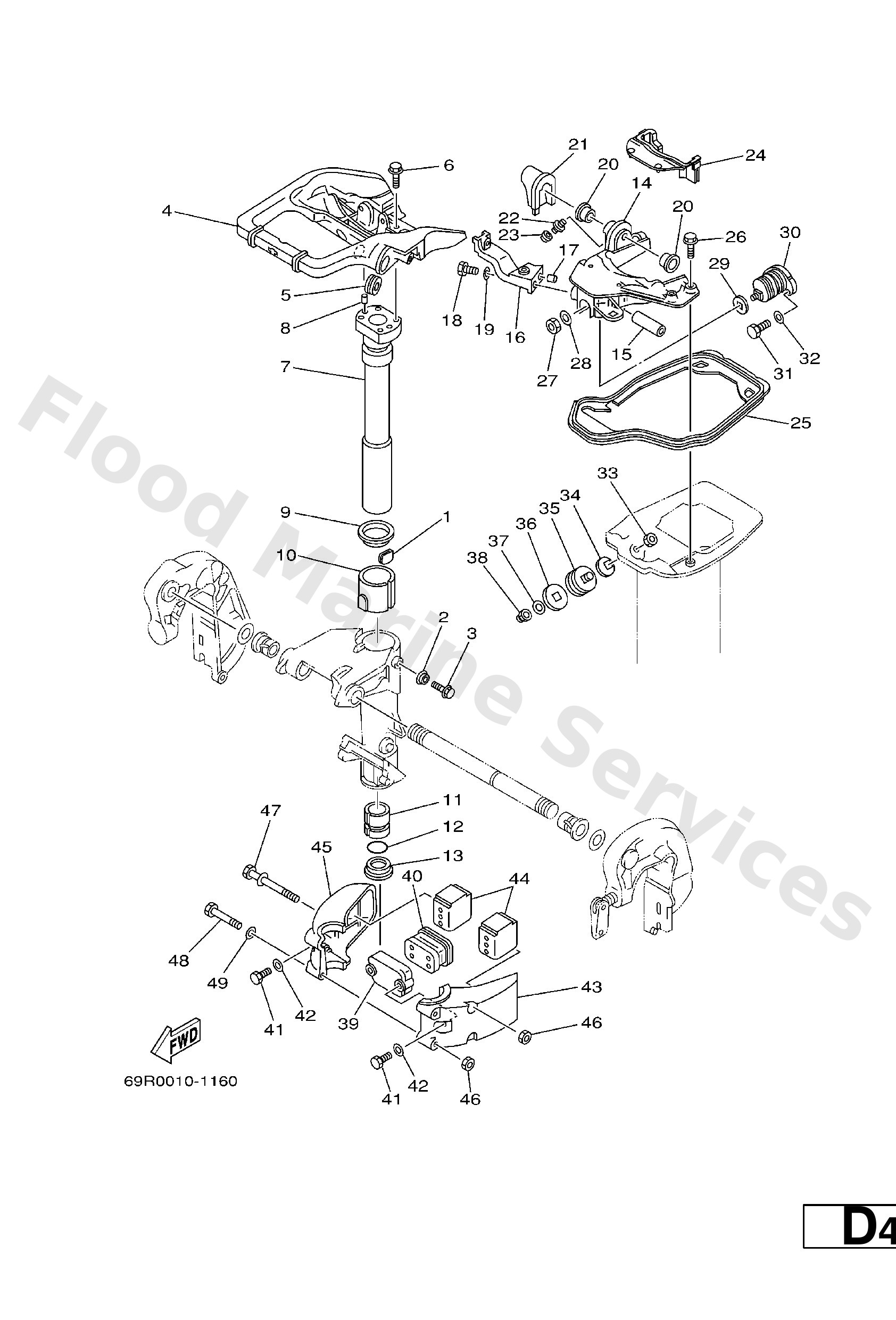

Diagram: BRACKET 2
Parts List
Reference
Description
Price
1
648−42528−00
Plate, friction
Loading…
↗
2
689−43373−01
Seal, damper
Loading…
↗
3
90105−06M18
Bolt (689)
Loading…
↗
4
69P−42511−00−4D
Bracket, steering
Loading…
↗
5
90480−29045
Grommet 648425510000
Loading…
↗
6
90105−06M07
Bolt (689)
Loading…
↗
7
689−42521−00−94
Shaft, steering pivot
Loading…
↗
8
93608−12063
Pin, dowel (626)
Loading…
↗
9
90209−47016
Washer 648425350000
Loading…
↗
10
90386−47M22
Bushing (695)
Loading…
↗
11
90386−38090
Bushing (664)
Loading…
↗
12
93210−37160
O-ring (6g8)
Loading…
↗
13
90386−38022
Bush(648-42539-00)
Loading…
↗
14
69P−44518−00−94
Bracket comp.
Loading…
↗
15
90387−10M39
Coller (689)
Loading…
↗
16
648−44519−00−94
Bracket
Loading…
↗
17
93606−12019
Pin, dowel (614)
Loading…
↗
18
97095−06018
Bolt (fj0)
Loading…
↗
19
92995−06600
Washer, plain (646)
Loading…
↗
20
90381−12M01
Bush, solid(6a4)
Loading…
↗
21
689−42718−00
Rubber, seal 3
Loading…
↗
22
93700−06M03
Nipple, grease(6a1)
Loading…
↗
23
663−45119−00
AP
Cap, grease nipple
Loading…
↗
24
69P−42717−00
Rubber, seal 2
Loading…
↗
25
69P−42716−00
Rubber seal 1
Loading…
↗
26
90105−06M08
Bolt (689)
Loading…
↗
27
90170−10M42
Nut
Loading…
↗
28
92990−10200
958-69527-00 washer, plain
Loading…
↗
29
648−44591−A0
Gasket
Loading…
↗
30
689−44516−00
Mount damper, upper front
Loading…
↗
31
97095−06020
Bolt(7u8)
Loading…
↗
35
664−44514−00−94
Mount damper, upper side
Loading…
↗
36
664−44591−A0
Gasket
Loading…
↗
38
90176−10M01
Nut, crown
Loading…
↗
39
689−44553−00−94
Cover, lower mount
Loading…
↗
40
689−44557−00
Mount damper, lower front
Loading…
↗
41
97075−08025
Bolt, hexagon deep recess
Loading…
↗
42
92995−08600
Washer, plain (663)
Loading…
↗
43
689−44551−01−4D
Housing, lower mount rubber 1
Loading…
↗
44
689−44555−00
Mount damper, lower side
Loading…
↗
45
689−44552−01−4D
Housing, lower mount rubber 2
Loading…
↗
46
95380−08600
Nut (661)
Loading…
↗
47
90119−08M03
Bolt (689)
Loading…
↗
48
97095−08065
Bolt (gk02)
Loading…
↗
