25BMH (2007)
BRACKET 2

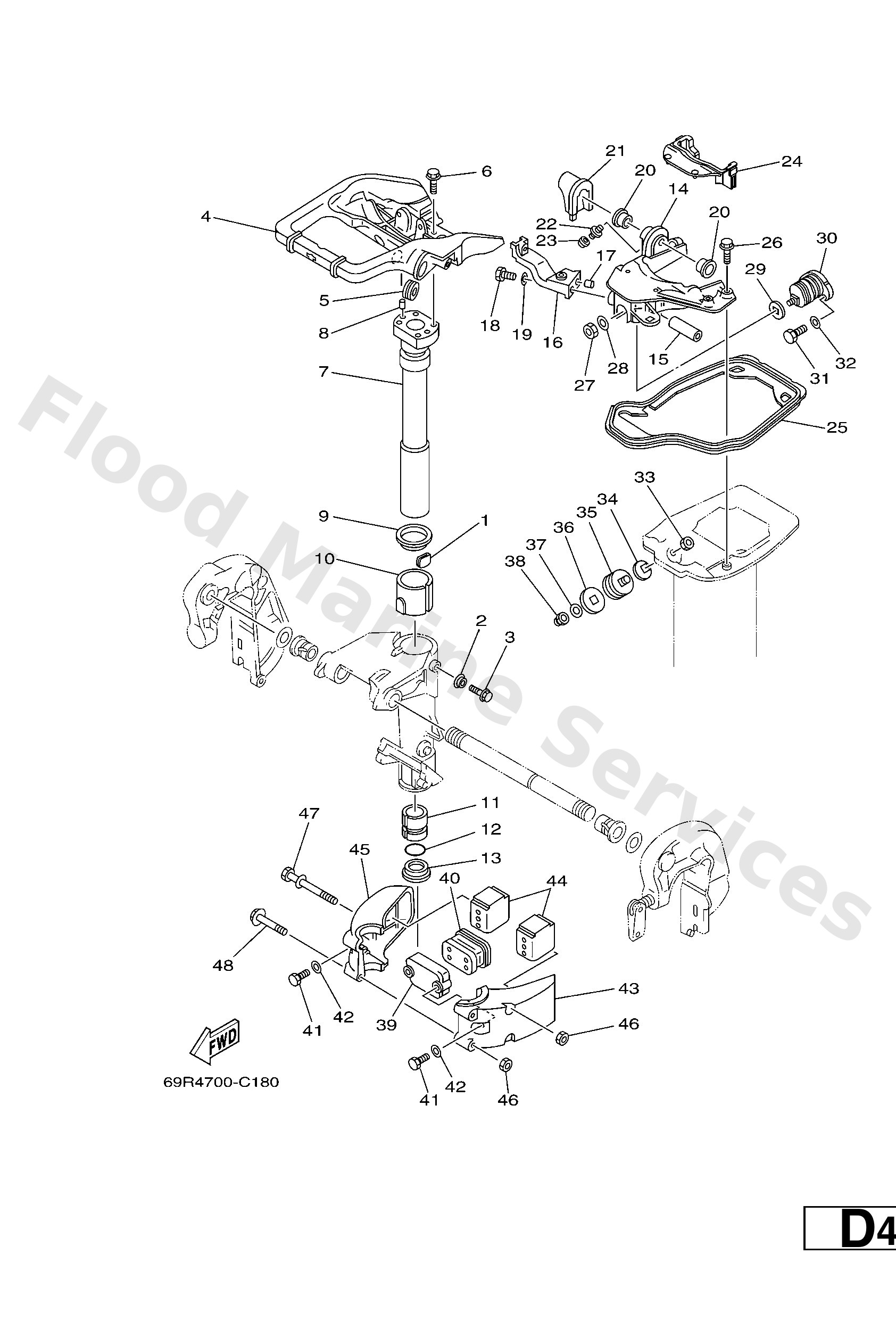

Diagram: BRACKET 2
Parts List
Reference
Description
Price
1
6484252800
Plate, friction
Loading…
↗
2
6894337301
Seal, damper
Loading…
↗
3
9010506M18
Bolt (689)
Loading…
↗
4
69P42511004D
Bracket, steering
Loading…
↗
5
9048029045
Grommet 648425510000
Loading…
↗
6
9010506M07
Bolt (689)
Loading…
↗
7
689425210094
Shaft, steering pivot
Loading…
↗
8
9360812063
Pin, dowel (626)
Loading…
↗
9
9020947016
Washer 648425350000
Loading…
↗
10
9038647M22
Bushing (695)
Loading…
↗
11
9038638090
Bushing (664)
Loading…
↗
12
9321037160
O-ring (6g8)
Loading…
↗
13
9038638022
Bush(648-42539-00)
Loading…
↗
14
69P445180094
Bracket comp.
Loading…
↗
15
9038710M39
Coller (689)
Loading…
↗
16
648445190094
Bracket
Loading…
↗
17
9360612019
Pin, dowel (614)
Loading…
↗
18
9709506018
Bolt (fj0)
Loading…
↗
19
9299506600
Washer, plain (646)
Loading…
↗
20
9038112M01
Bush, solid(6a4)
Loading…
↗
21
6894271800
Rubber, seal 3
Loading…
↗
22
9370006M03
Nipple, grease(6a1)
Loading…
↗
23
6634511900
AP
Cap, grease nipple
Loading…
↗
24
69P4271700
Rubber, seal 2
Loading…
↗
25
69P4271600
Rubber seal 1
Loading…
↗
26
9010506M08
Bolt (689)
Loading…
↗
27
9017010M42
Nut
Loading…
↗
28
9299010200
958-69527-00 washer, plain
Loading…
↗
29
64844591A0
Gasket
Loading…
↗
30
6894451600
Mount damper, upper front
Loading…
↗
31
9709506020
Bolt(7u8)
Loading…
↗
35
664445140094
Mount damper, upper side
Loading…
↗
36
66444591A0
Gasket
Loading…
↗
38
9017610M01
Nut, crown
Loading…
↗
39
689445530094
Cover, lower mount
Loading…
↗
40
6894455700
Mount damper, lower front
Loading…
↗
41
9707508025
Bolt, hexagon deep recess
Loading…
↗
42
9299508600
Washer, plain (663)
Loading…
↗
43
68944551014D
Housing, lower mount rubber 1
Loading…
↗
44
6894455500
Mount damper, lower side
Loading…
↗
45
68944552014D
Housing, lower mount rubber 2
Loading…
↗
46
9538008600
Nut (661)
Loading…
↗
47
9011908M03
Bolt (689)
Loading…
↗
48
9759508565
Bolt, with washer
Loading…
↗
