25NMHO (2012)
BRACKET 2

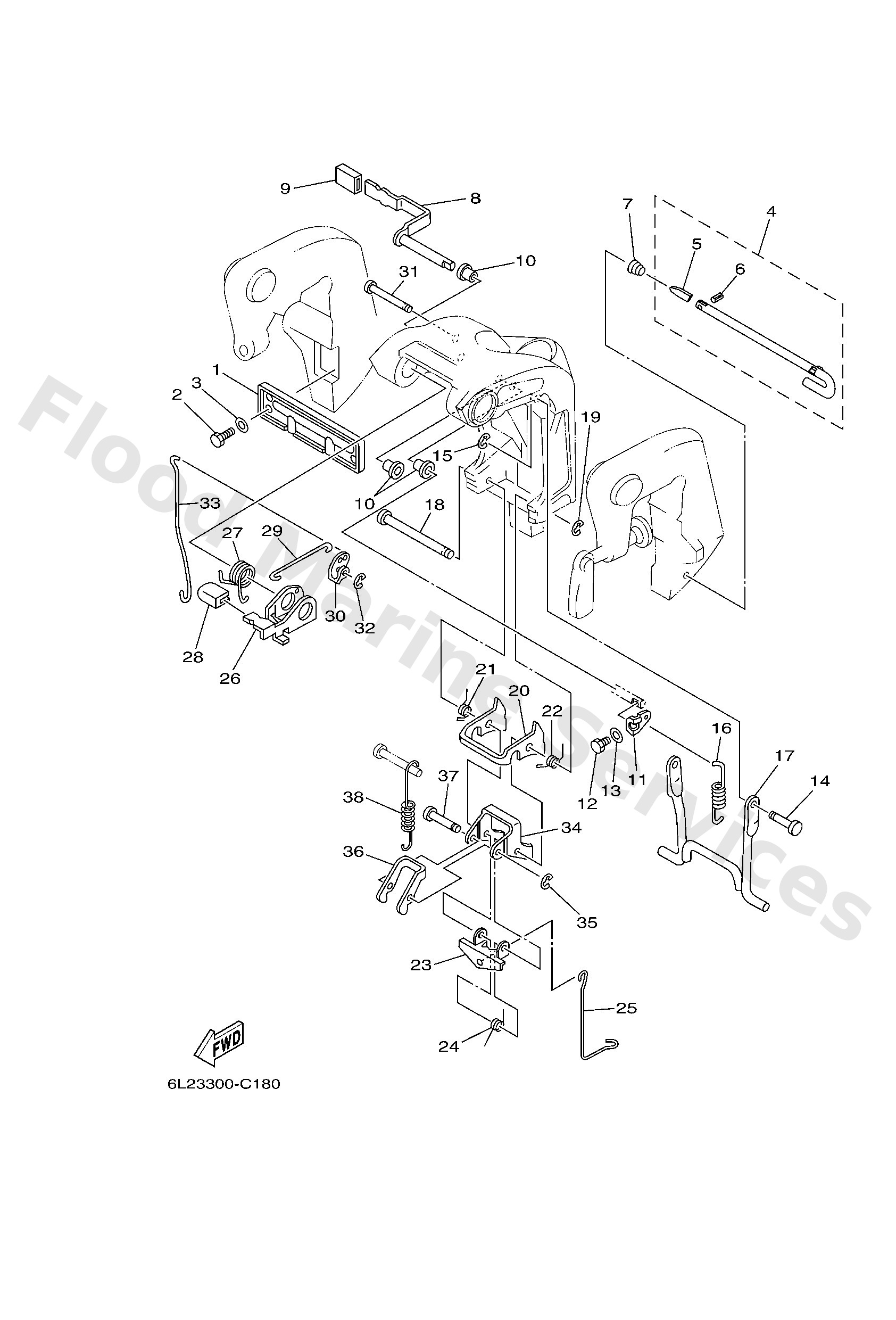

Diagram: BRACKET 2
Parts List
Reference
Description
Price
1
6L24316501
Plate, tilt lock
Loading…
↗
2
9709006010
Bolt
Loading…
↗
3
9299006600
Washer, plain (646)
Loading…
↗
4
6L24316001
Tilt rod assembly
Loading…
↗
5
6894316500
Plate, tilt lock
Loading…
↗
6
9169030008
Pin. spring(656)
Loading…
↗
7
9050210M07
Spring, conical(6k3)
Loading…
↗
8
6L24363001
Tilt lever assembly
Loading…
↗
9
6824331801
Cover
Loading…
↗
10
9038608032
Bushing (650)
Loading…
↗
11
6L24368201
Lever, shallow water drive 2
Loading…
↗
12
9709505010
Bolt (682)
Loading…
↗
13
9299505600
Washer, plain (646)
Loading…
↗
14
6L24319101
Shaft, stopper
Loading…
↗
15
9908005600
Circlip(22k)
Loading…
↗
16
9050620M27
Spring, tension(6l2)
Loading…
↗
17
6L24335002
Receiver assembly
Loading…
↗
18
6J84361101
Shaft, tilt lock
Loading…
↗
20
6L24361400
Plate, tilt lock
Loading…
↗
21
9050812M28
Spring, torsion(6l2)
Loading…
↗
22
9050812M29
Spring, torsion(6l2)
Loading…
↗
23
6L24361500
Plate, tilt lock
Loading…
↗
24
6L24365700
Spring, lock
Loading…
↗
25
6L24367600
Hook
Loading…
↗
26
6L24363100
Lever, tilt
Loading…
↗
27
6L24318800
Spring
Loading…
↗
28
6L24363310
Cover, tilt lever
Loading…
↗
29
6L24361100
Shaft, tilt lock
Loading…
↗
30
6L24364100
Lever, tilt
Loading…
↗
31
6L24365900
Shaft, reverse lock
Loading…
↗
33
6L24361700
Rod, tilt lock
Loading…
↗
34
6L24361300
Arm, tilt lock
Loading…
↗
36
6L24362400
Plate, tilt rock
Loading…
↗
37
6L24333600
Pin
Loading…
↗
38
9050623M11
Spring, tension(6l2)
Loading…
↗
