30DMH (2003)
BRACKET 2

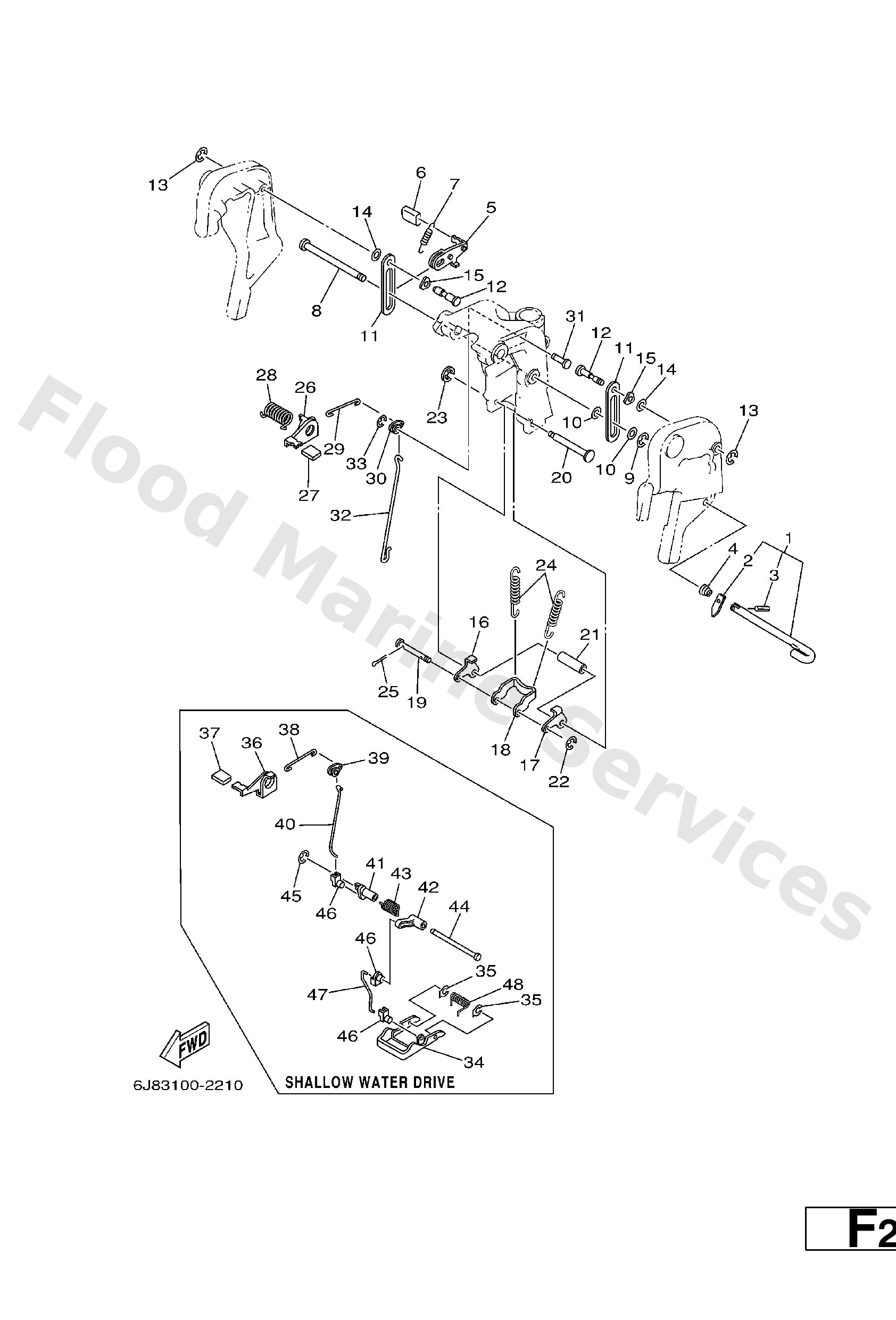

Diagram: BRACKET 2
Parts List
Reference
Description
Price
1
6H4−43160−01
Tilt rod assembly
Loading…
↗
2
676−43165−00
Stopper plate, titl lock rod
Loading…
↗
3
91690−30010
Pin, spring (663)
Loading…
↗
4
90502−10M04
Spring, conical(6f5)
Loading…
↗
5
6J8−43181−01
Lever, tilt stop 1
Loading…
↗
6
682−43318−01
Cover
Loading…
↗
7
90506−12M25
Spring, tension(6h4)
Loading…
↗
8
90249−12M28
Pin(6h4)
Loading…
↗
9
93430−10M00
Circlip
Loading…
↗
10
90202−12031
Washer, plate 6484412600
Loading…
↗
11
6J8−43627−00
Stopper
Loading…
↗
12
90249−12M27
Pin(6f6)
Loading…
↗
15
90206−12M16
Washer, wave(6j8)
Loading…
↗
16
6J8−43614−00
Plate, tilt lock
Loading…
↗
17
6J8−43615−00
Plate, tilt lock
Loading…
↗
18
6J8−43613−01
Arm, tilt lock
Loading…
↗
19
6H4−43659−00
Shaft, reverse lock
Loading…
↗
20
6J8−43611−01
Shaft, tilt lock
Loading…
↗
21
90387−07M64
Collar (6h4)
Loading…
↗
22
93430−06M02
Circlip (689)
Loading…
↗
23
99080−05600
Circlip(22k)
Loading…
↗
24
90506−32M22
Spring, tension(6j8)
Loading…
↗
25
91490−20010
Pin, cotter
Loading…
↗
26
6J8−43631−00
Lever, tilt
Loading…
↗
27
6J8−43633−00
Cover, tilt lever
Loading…
↗
28
90508−18M23
FOR SHALLOW
Spring, torsion(6h4)
Loading…
↗
29
6H4−43616−00
Rod, tilt lock 1
Loading…
↗
30
6J8−43641−00
Lever, tilt
Loading…
↗
31
90249−06M24
FOR SHALLOW
Pin(6h4)
Loading…
↗
32
6J8−43617−00
Rod, tilt lock
Loading…
↗
34
6J8−43681−01
Lever, shallow water drive
Loading…
↗
35
6J8−43673−00
Washer 1
Loading…
↗
36
6J8−43631−10
Lever, tilt
Loading…
↗
40
6J8−43617−10
Rod, tilt lock
Loading…
↗
41
6J8−43186−00
Lever
Loading…
↗
42
6J8−43187−00
Lever 2
Loading…
↗
43
90508−25M21
Spring, torsion(6h4)
Loading…
↗
44
90249−07M25
Pin(6h4)
Loading…
↗
46
6J8−41262−00
Joint, choke lever
Loading…
↗
47
6J8−43616−10
Rod, tilt lock
Loading…
↗
48
90508−20M22
Spring, torsion(6h4)
Loading…
↗
