40XMH (2016)
BRACKET 2

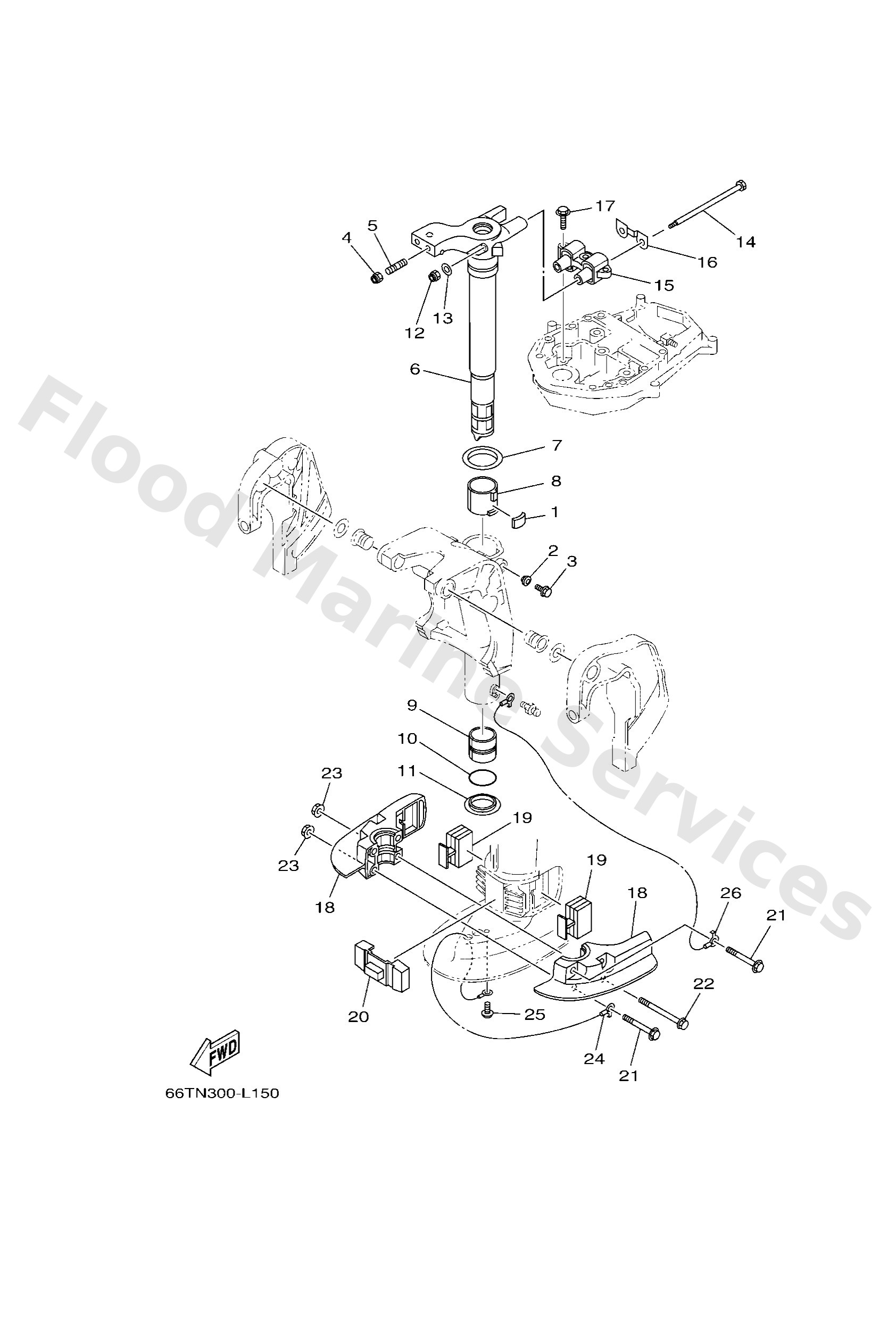

Diagram: BRACKET 2
Parts List
Reference
Description
Price
1
6484252800
Plate, friction
Loading…
↗
2
65W4337300
Seal, damper
Loading…
↗
3
9010508M76
Bolt, washer based
Loading…
↗
4
9018510027
Nut, self-locking
Loading…
↗
5
9011610063
Bolt, stud
Loading…
↗
6
65W42511118D
L(21.7")
Bracket, steering
Loading…
↗
7
9020952M00
Washer (676)
Loading…
↗
8
9038652M02
Bushing (676)
Loading…
↗
9
9038644M03
Bushing (676)
Loading…
↗
10
9321043MJ0
O-ring
Loading…
↗
11
9038644M99
Bush
Loading…
↗
12
9018508018
Nut, self-locking
Loading…
↗
13
9299508200
Ybs66-8 washer, plain
Loading…
↗
14
9010108M86
Bolt (6h4)
Loading…
↗
15
66T4451400
L(21.7")
Mount damper, upper side
Loading…
↗
16
66T4452600
L(21.7")
Plate
Loading…
↗
17
9757508530
Bolt, hexagon w/w deep recess
Loading…
↗
18
65W44551008D
Housing, lower mount rubber 1
Loading…
↗
19
65W4455510
Mount damper, lower side
Loading…
↗
20
66T4457500
Damper, lower mount rubber
Loading…
↗
21
9757510570
Bolt, hexagon w/w deep recess
Loading…
↗
22
9011910M04
Bolt, with washer
Loading…
↗
23
9017910M33
Nut
Loading…
↗
24
66T8212710
Wire, lead 2
Loading…
↗
25
9788506008
Screw, pan head(6a3)
Loading…
↗
26
66T8212700
L(21.7")
Wire, lead 2
Loading…
↗
