40YETO (2003)
BRACKET 2

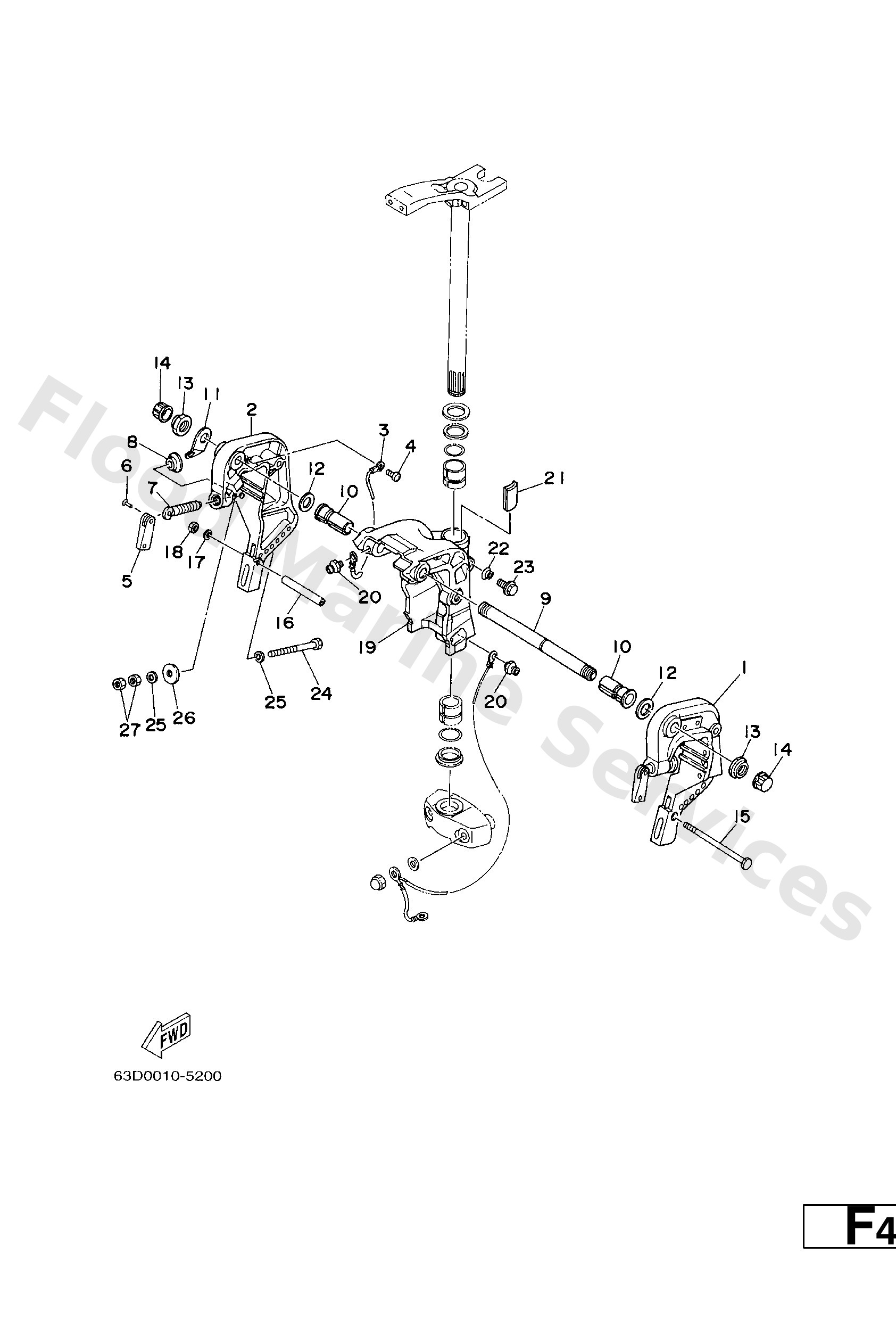

Diagram: BRACKET 2
Parts List
Reference
Description
Price
1
6H4−43111−05−4D
Bracket, clamp 1
Loading…
↗
2
6H4−43112−04−4D
Bracket, clamp 2
Loading…
↗
3
6E5−82148−00
Wire, lead 5
Loading…
↗
4
97885−06008
Screw, pan head(6a3)
Loading…
↗
5
6E0−43118−01
Handle, transom clamp
Loading…
↗
6
90243−04M01
Pin(6a1)
Loading…
↗
7
90149−14M12
Screw(6h4)
Loading…
↗
8
648−43114−01
Pad, transom clamp
Loading…
↗
9
63D−43131−01
Bolt, clamp bracket
Loading…
↗
10
90386−22M69
Bush(6k9)
Loading…
↗
11
6J8−43113−01
Plate, clamp bracket
Loading…
↗
12
90201−22M03
Washer, plate(64j)
Loading…
↗
13
90185−22M11
Nut, self-locking
Loading…
↗
14
6G5−43145−01
Cap, clamp bracket
Loading…
↗
15
90101−08339
Bolt, hexagon (656)
Loading…
↗
16
90387−08M03
Collar
Loading…
↗
17
92990−08600
Washer, plain (663)
Loading…
↗
18
95380−08600
Nut (661)
Loading…
↗
19
6J8−43311−04−4D
S
Bracket, swivel
Loading…
↗
19
6J8−43311−10−4D
L
Bracket, swivel 1
Loading…
↗
20
93700−06M03
Nipple, grease(6a1)
Loading…
↗
21
6J8−42528−00
Plate, friction
Loading…
↗
22
689−43373−01
Seal, damper
Loading…
↗
23
90105−06M18
Bolt (689)
Loading…
↗
24
90101−10M58
Bolt
Loading…
↗
25
92995−10600
Washer, plate
Loading…
↗
26
90201−12426
Washe, plate(663)
Loading…
↗
27
95380−10600
Nut(624)
Loading…
↗
