40YETO (2004)
BRACKET 2

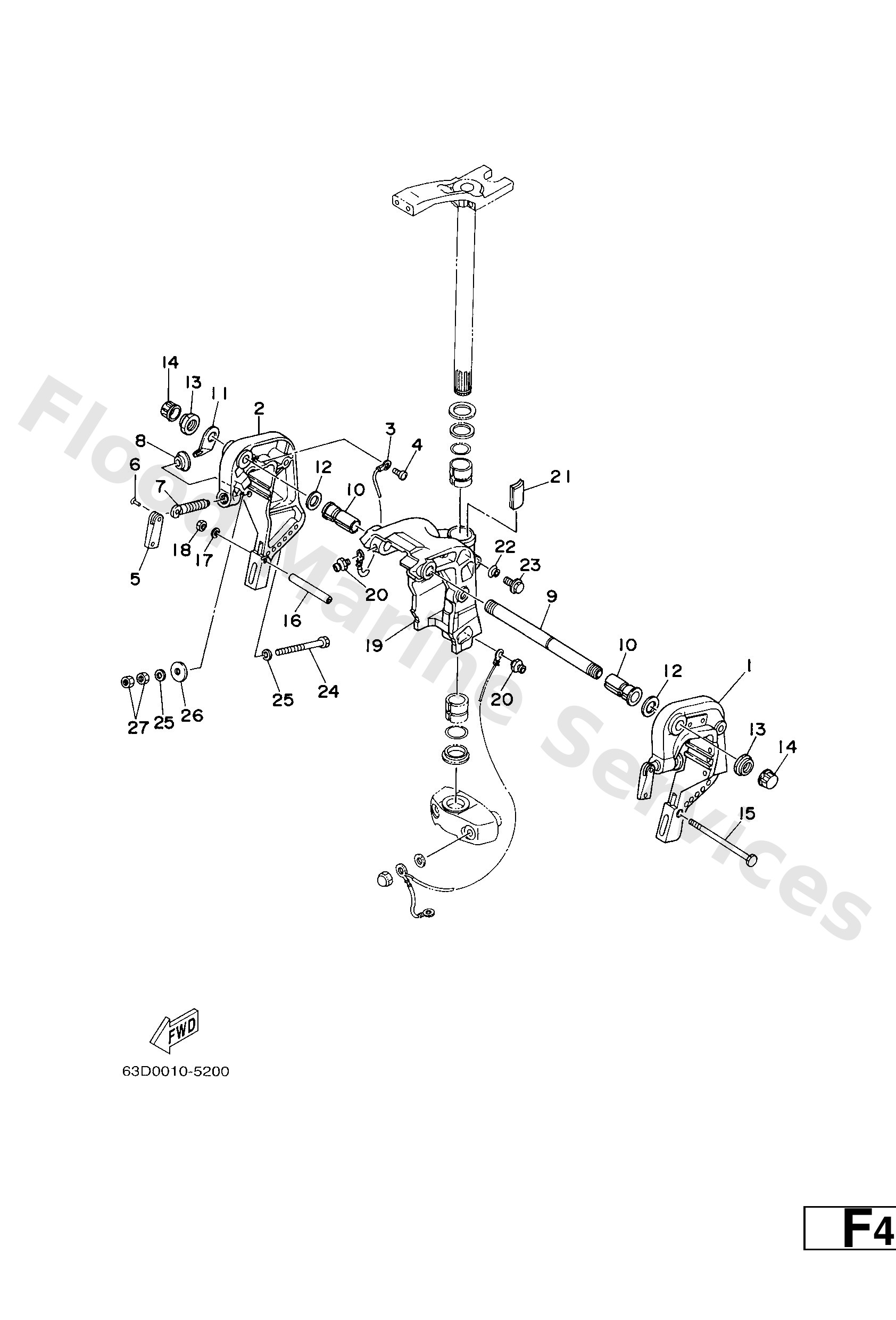

Diagram: BRACKET 2
Parts List
Reference
Description
Price
1
6H443111054D
Bracket, clamp 1
Loading…
↗
2
6H443112044D
Bracket, clamp 2
Loading…
↗
3
6E58214800
Wire, lead 5
Loading…
↗
4
9788506008
Screw, pan head(6a3)
Loading…
↗
5
6E04311801
Handle, transom clamp
Loading…
↗
6
9024304M01
Pin(6a1)
Loading…
↗
7
9014914M12
Screw(6h4)
Loading…
↗
8
6484311401
Pad, transom clamp
Loading…
↗
9
63D4313101
Bolt, clamp bracket
Loading…
↗
10
9038622M69
Bush(6k9)
Loading…
↗
11
6J84311301
Plate, clamp bracket
Loading…
↗
12
9020122M03
Washer, plate(64j)
Loading…
↗
13
9018522M11
Nut, self-locking
Loading…
↗
14
6G54314501
Cap, clamp bracket
Loading…
↗
15
9010108339
Bolt, hexagon (656)
Loading…
↗
16
9038708M03
Collar
Loading…
↗
17
9299008600
Washer, plain (663)
Loading…
↗
18
9538008600
Nut (661)
Loading…
↗
19
6J843311044D
S
Bracket, swivel
Loading…
↗
19
6J843311104D
L
Bracket, swivel 1
Loading…
↗
20
9370006M03
Nipple, grease(6a1)
Loading…
↗
21
6J84252800
Plate, friction
Loading…
↗
22
6894337301
Seal, damper
Loading…
↗
23
9010506M18
Bolt (689)
Loading…
↗
24
9010110M58
Bolt
Loading…
↗
25
9299510600
Washer, plate
Loading…
↗
26
9020112426
Washe, plate(663)
Loading…
↗
27
9538010600
Nut(624)
