55BET (2002)
BRACKET 2

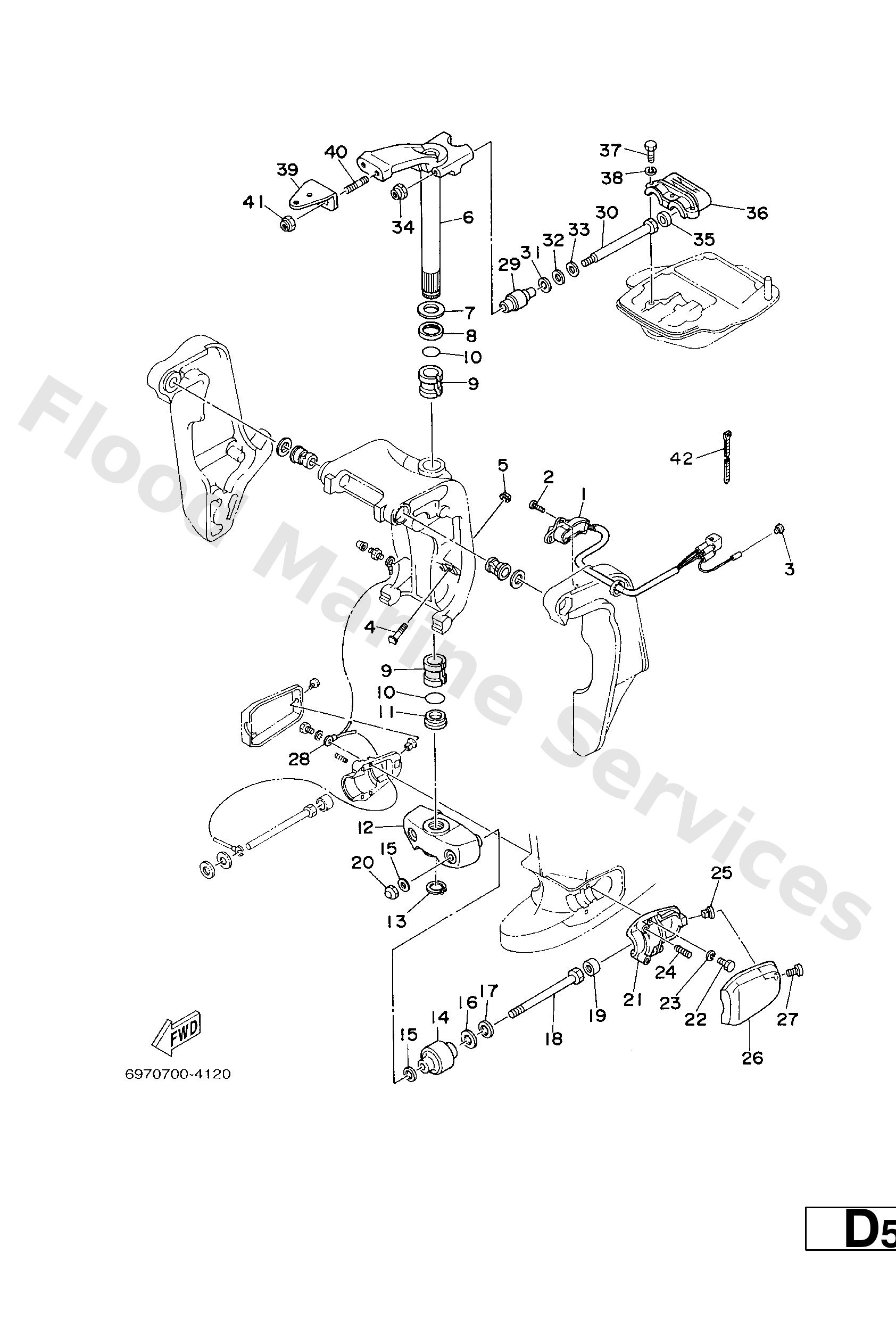

Diagram: BRACKET 2
Parts List
Reference
Description
Price
1
6H18367212
Trim sender
Loading…
↗
2
97885--06016
Screw, pan head(6b0)
Loading…
↗
3
703--82119--00
Cover, lead wire
Loading…
↗
4
6H1--43376--00
Bolt, thrust receiver
Loading…
↗
5
90185--08057
Nut, nylon (6j8)
Loading…
↗
6
66342510134D
Steering bracket assembly
Loading…
↗
7
90201--30M00
Washer, plate(6h1)
Loading…
↗
8
90386--30M78
Bush(6h0)
Loading…
↗
9
90386--30M77
Bush(6h0)
Loading…
↗
10
93210--29M94
O-ring(6h1)
Loading…
↗
11
90386--30M60
Bush(6j8)
Loading…
↗
12
66344551024D
Housing, lower mount rubber
Loading…
↗
13
93410--28M06
Circlip (688)
Loading…
↗
14
687--44555--00--94
Mount damper, lower side
Loading…
↗
15
90201--12M16
Washer, plate (679)
Loading…
↗
16
90202--25M04
Washer, plate (663)
Loading…
↗
17
90201--13M19
Washer, plate (663)
Loading…
↗
18
90109--12261
Bolt(663)
Loading…
↗
19
663--44575--00
Damper, lower mount rubber
Loading…
↗
20
95380--12800
Nut crown(663)
Loading…
↗
21
687445520294
Housing, lower mount rubber
Loading…
↗
22
97075--08025
Bolt, hexagon deep recess
Loading…
↗
23
92995--08100
Ybs67-8 washer, spring
Loading…
↗
24
90501--14M08
Spring, compression(64j)
Loading…
↗
25
90179--06066
Nut(663)
Loading…
↗
26
66344553014D
Cover, lower mount
Loading…
↗
28
688--82127--02
Wire, lead 2
Loading…
↗
29
670445140094
Mount damper, upper side
Loading…
↗
30
9010908262
Bolt(663)
Loading…
↗
31
90201--15423
Washer, plate(663)
Loading…
↗
32
9020215065
Washer, plate (663)
Loading…
↗
33
90201--09425
Washer, plate (663)
Loading…
↗
34
90185--08045
Nut, self-locking
Loading…
↗
35
663--44533--00
Damper, upper mount
Loading…
↗
36
663445110094
Cover, upper mount
Loading…
↗
37
97075--08035
Bolt(70w)
Loading…
↗
39
68848511014D
Hook, steering
Loading…
↗
40
90116--10175
Bolt, stud
Loading…
↗
41
90185--10051
Nut, self-locking
Loading…
↗
42
90465--11M10
Clamp
Loading…
↗
