9.9FMH (2012)
BRACKET 2

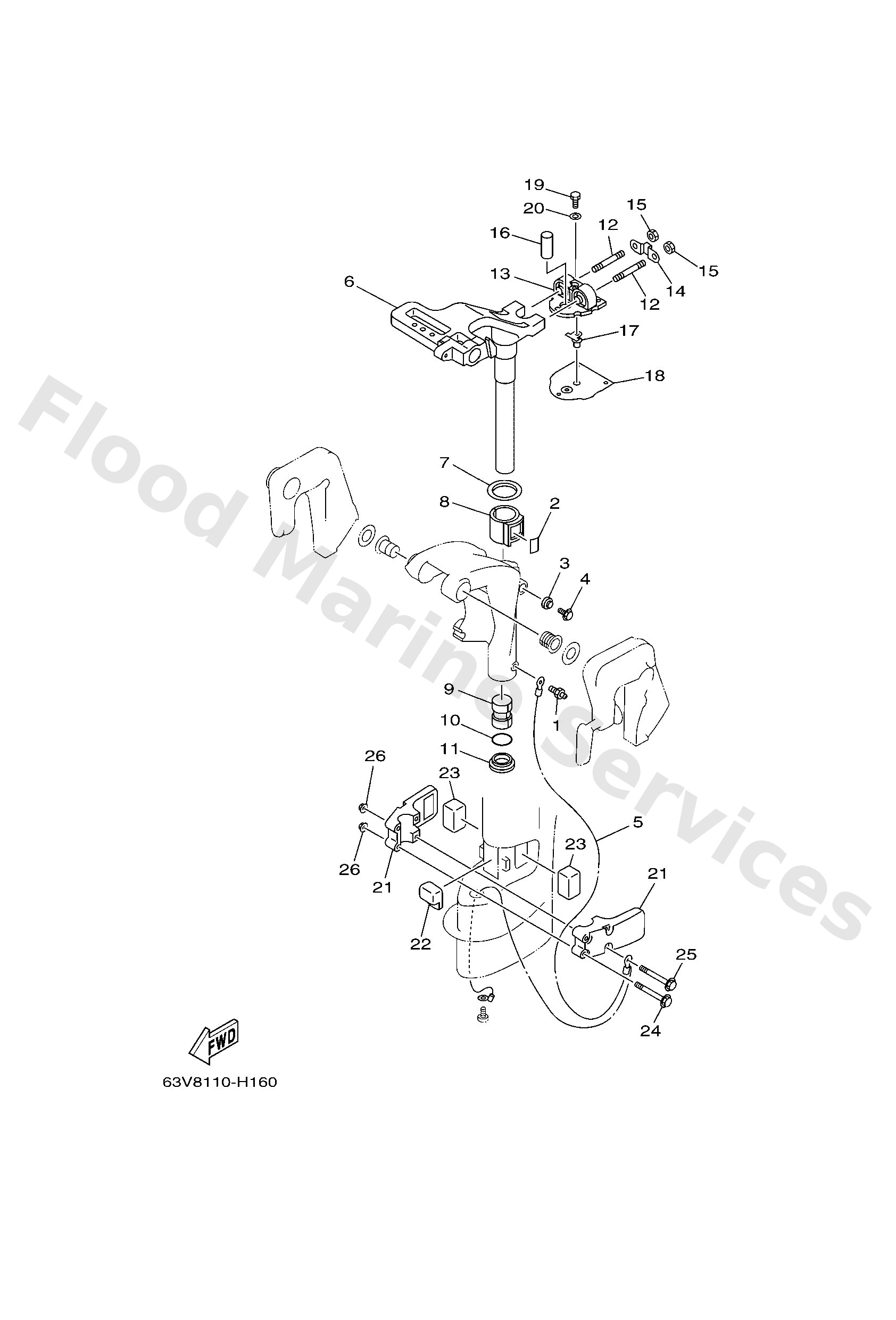

Diagram: BRACKET 2
Parts List
Reference
Description
Price
1
9370006M03
Nipple, grease(6a1)
Loading…
↗
2
63V4252800
Plate, friction
Loading…
↗
3
6894337301
Seal, damper
Loading…
↗
4
9010506M07
Bolt (689)
Loading…
↗
5
63V8212700
Wire, lead 2
Loading…
↗
6
63V42511044D
Bracket, steering
Loading…
↗
7
9020940008
Washer
Loading…
↗
8
65F4253700
Bushing, pivot shaft
Loading…
↗
9
9038630048
Bush
Loading…
↗
10
9321029M94
O-ring(6h1)
Loading…
↗
11
9038630M60
Bush(6j8)
Loading…
↗
12
9011608M54
Bolt, stud(63v)
Loading…
↗
13
63V4451401CA
Mount damper, upper side
Loading…
↗
14
63V4452600
Plate
Loading…
↗
15
9538008600
Nut (661)
Loading…
↗
16
9038716002
Collar
Loading…
↗
17
63V4436601
Damper, water seal 2
Loading…
↗
18
63V45114A1
Gasket, upper casing
Loading…
↗
19
9709506018
Bolt (fj0)
Loading…
↗
20
9299506600
Washer, plain (646)
Loading…
↗
21
63V44551014D
Housing, lower mount rubber 1
Loading…
↗
22
63V4455700
Mount damper, lower front
Loading…
↗
23
6824455500
Mount damper, lower side
Loading…
↗
24
9757506555
Bolt, hexagon w/w deep recess
Loading…
↗
25
9757506575
Bolt, hexagon w/w deep recess
Loading…
↗
26
9017906M28
Nut(63v)
Loading…
↗
