90AETO (2010)
BRACKET 2

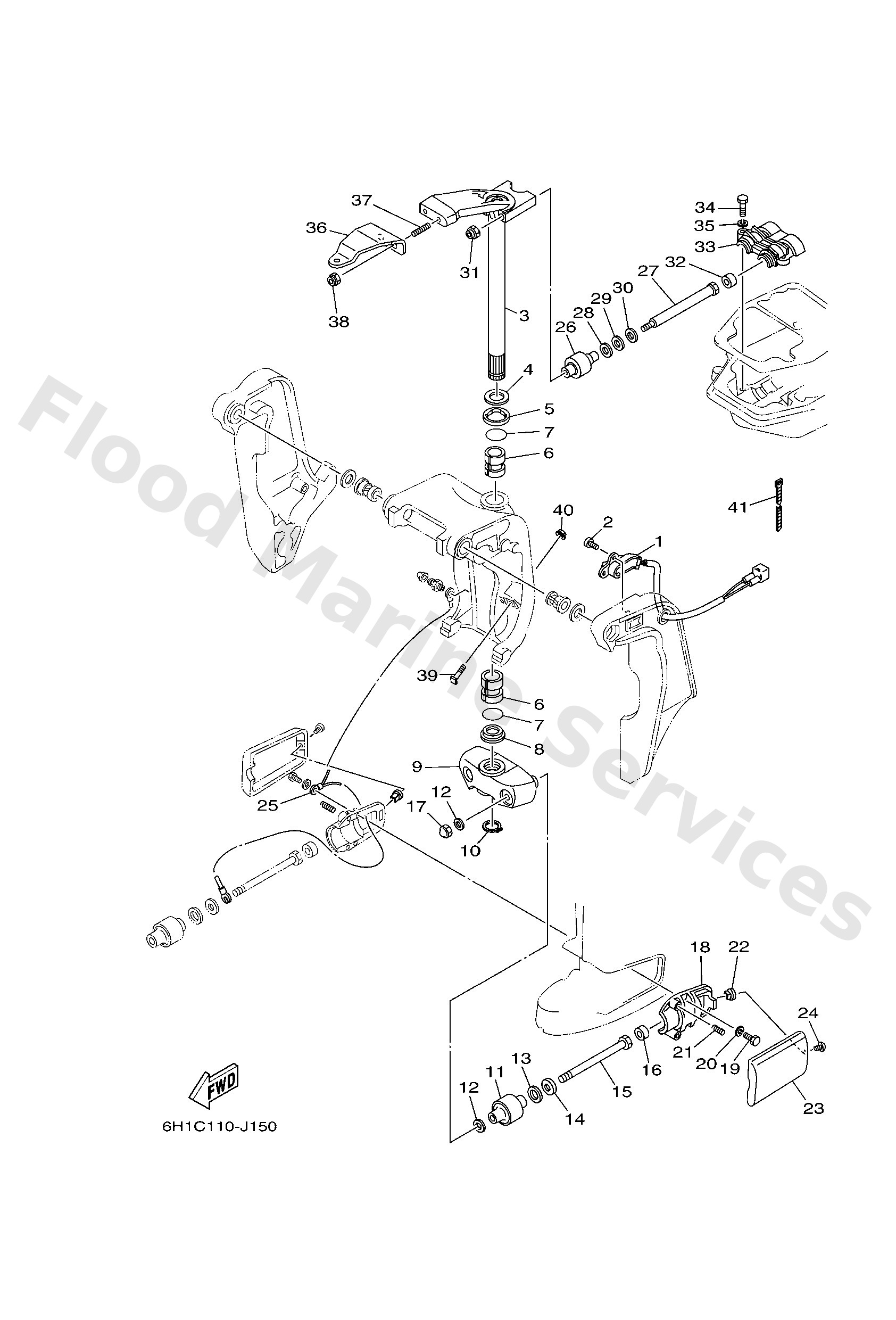

Diagram: BRACKET 2
Parts List
Reference
Description
Price
1
6H18367221
Trim sender
Loading…
↗
2
9788506016
Screw, pan head(6b0)
Loading…
↗
3
68842510038D
Steering bracket assembly
Loading…
↗
4
9020130M00
Washer, plate(6h1)
Loading…
↗
5
9038630M78
Bush(6h0)
Loading…
↗
6
9038630M77
Bush(6h0)
Loading…
↗
7
9321029M94
O-ring(6h1)
Loading…
↗
8
9038630M60
Bush(6j8)
Loading…
↗
9
66344551028D
Housing, lower mount rubber
Loading…
↗
10
9341028M06
Circlip (688)
Loading…
↗
11
687445550094
Mount damper, lower side
Loading…
↗
12
9020112M16
Washer, plate (679)
Loading…
↗
13
9020225M04
Washer, plate (663)
Loading…
↗
14
9020113M19
Washer, plate (663)
Loading…
↗
15
9010912261
Bolt(663)
Loading…
↗
16
6634457500
Damper, lower mount rubber
Loading…
↗
17
9538012800
Nut crown(663)
Loading…
↗
18
687445520294
Housing, lower mount rubber
Loading…
↗
19
9707508025
Bolt, hexagon deep recess
Loading…
↗
20
9299508100
Ybs67-8 washer, spring
Loading…
↗
21
9050114M08
Spring, compression(64j)
Loading…
↗
22
9017906066
Nut(663)
Loading…
↗
23
66344553018D
Cover, lower mount
Loading…
↗
25
6888212702
Wire, lead 2
Loading…
↗
26
688445140094
Mount damper, upper side
Loading…
↗
27
9010110M49
Bolt
Loading…
↗
28
9020120M21
Washer, plate (688)
Loading…
↗
29
9020220M06
Washer, plate (688)
Loading…
↗
30
9020111M22
Washer, plate (688)
Loading…
↗
31
9018510051
Nut, self-locking
Loading…
↗
33
688445110094
Cover, upper mount
Loading…
↗
34
9707508035
Bolt(70w)
Loading…
↗
36
6884851130
STEERING GUIDE
Hook, steering
Loading…
↗
37
9011610175
Bolt, stud
Loading…
↗
39
6H14337600
Bolt, thrust receiver
Loading…
↗
40
9018508057
Nut, nylon (6j8)
Loading…
↗
41
9046511M10
Clamp
Loading…
↗
