E15DMH (2003)
BRACKET 2

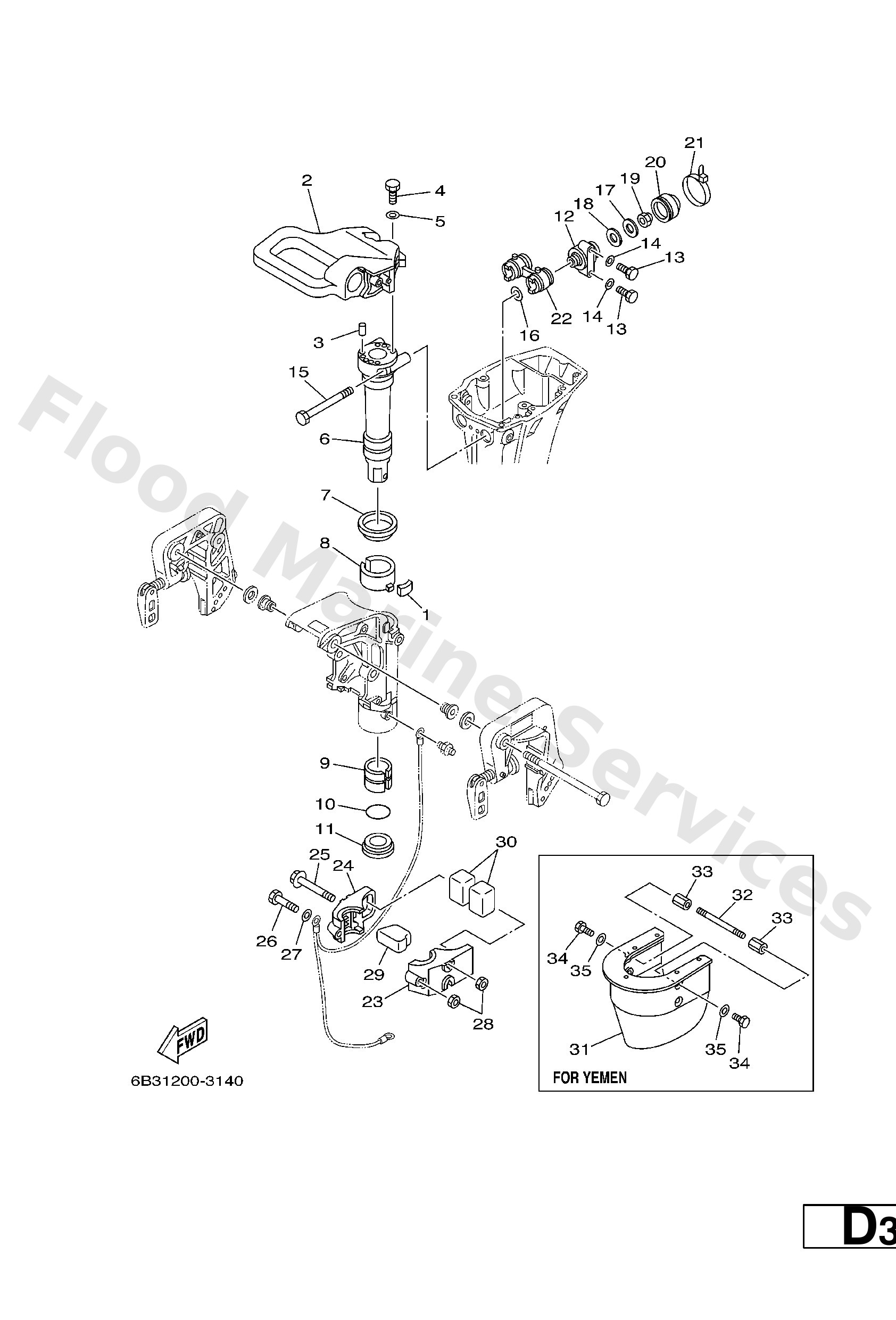

Diagram: BRACKET 2
Parts List
Reference
Description
Price
1
648−42528−00
Plate, friction
Loading…
↗
2
6B4−42511−00−4D
Bracket, steering
Loading…
↗
3
93606−12019
Pin, dowel (614)
Loading…
↗
4
97095−06025
Bolt
Loading…
↗
5
92995−06600
Washer, plain (646)
Loading…
↗
6
682−42521−00−94
Shaft, steering pivot
Loading…
↗
7
90209−52M01
Washer (682)
Loading…
↗
8
682−42537−00
Bushing, pivot shaft
Loading…
↗
9
90386−40M09
Bush (682)
Loading…
↗
10
93210−40M10
O-ring (682)
Loading…
↗
11
90386−40M08
Bush (682)
Loading…
↗
12
682−44514−01−94
S/L
Mount damper, upper side
Loading…
↗
12
682−44514−31−94
X
Mount damper, upper side
Loading…
↗
15
90101−08M30
Bolt (682)
Loading…
↗
16
90201−08M12
Washer plate (682)
Loading…
↗
17
90201−08M13
Washer plate (682)
Loading…
↗
18
90202−13M02
Washer plate (682)
Loading…
↗
19
90185−08057
Nut, nylon (6j8)
Loading…
↗
20
682−44522−01
Seal
Loading…
↗
21
90465−11M52
Clamp(6e7)
Loading…
↗
22
682−44521−01
Seal
Loading…
↗
23
682−44551−02−4D
Housing, lower mount rubber 1
Loading…
↗
24
682−44552−02−4D
Housing, lower mount rubber 2
Loading…
↗
25
90119−08M45
EXCEPT YEMEN
Bolt, with washer
Loading…
↗
26
97075−08055
Bolt
Loading…
↗
35
92995−08600
YEMEN
Washer, plain (663)
Loading…
↗
28
95380−08700
YEMEN
Nut(661)
Loading…
↗
29
682−44557−00
Mount damper, lower front
Loading…
↗
30
682−44555−30
S
Mount damper, lower side
Loading…
↗
30
6B4−44555−30
L/X
Mount damper, lower side
Loading…
↗
31
6B4−45151−00−4D
YEMEN
Cover, Upper Casing
Loading…
↗
32
90116−08013
YEMEN
Bolt, Stud
Loading…
↗
33
90170−08009
YEMEN
Nut
Loading…
↗
34
97095−08012
YEMEN
Bolt, hexagon deep recess
Loading…
↗
