E15DMH (2004)
BRACKET 2

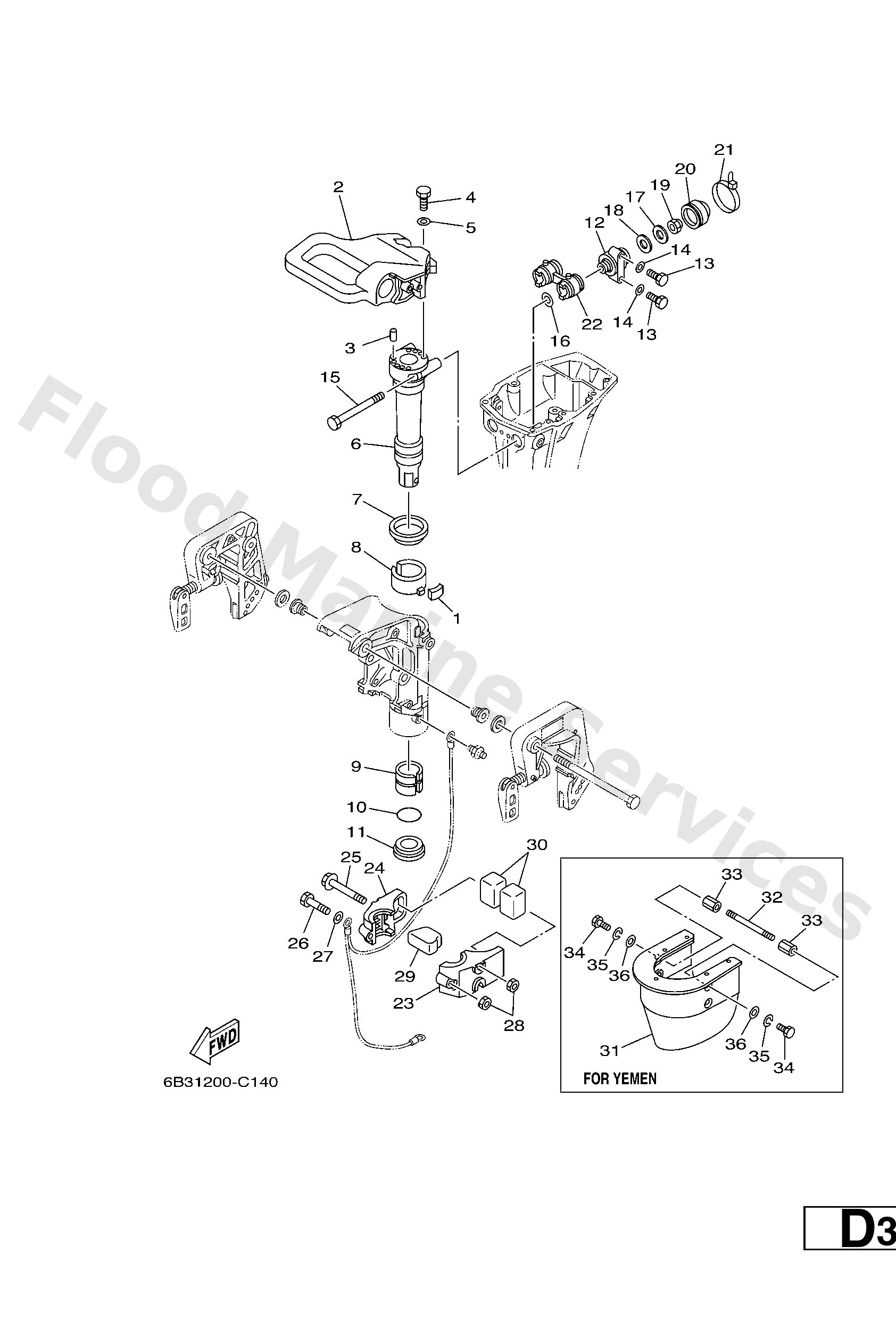

Diagram: BRACKET 2
Parts List
Reference
Description
Price
1
6484252800
Plate, friction
Loading…
↗
2
6B442511004D
Bracket, steering
Loading…
↗
3
9360612019
Pin, dowel (614)
Loading…
↗
4
9709506025
Bolt
Loading…
↗
5
9299506600
Washer, plain (646)
Loading…
↗
6
682425210094
Shaft, steering pivot
Loading…
↗
7
9020952M01
Washer (682)
Loading…
↗
8
6824253700
Bushing, pivot shaft
Loading…
↗
9
9038640M09
Bush (682)
Loading…
↗
10
9321040M10
O-ring (682)
Loading…
↗
11
9038640M08
Bush (682)
Loading…
↗
12
682445140194
S/L
Mount damper, upper side
Loading…
↗
12
682445143194
X
Mount damper, upper side
Loading…
↗
15
9010108M30
Bolt (682)
Loading…
↗
16
9020108M12
Washer plate (682)
Loading…
↗
17
9020108M13
Washer plate (682)
Loading…
↗
18
9020213M02
Washer plate (682)
Loading…
↗
19
9018508057
Nut, nylon (6j8)
Loading…
↗
20
6824452201
Seal
Loading…
↗
21
9046511M52
Clamp(6e7)
Loading…
↗
22
6824452101
Seal
Loading…
↗
23
68244551024D
Housing, lower mount rubber 1
Loading…
↗
24
68244552024D
Housing, lower mount rubber 2
Loading…
↗
25
9011908M45
EXCEPT FOR YEM
Bolt, with washer
Loading…
↗
26
9707508055
-
Loading…
↗
27
9299508600
Washer, plain (663)
Loading…
↗
28
9538008700
FOR YEM
Nut(661)
Loading…
↗
29
6824455700
Mount damper, lower front
Loading…
↗
30
6824455530
S
Mount damper, lower side
Loading…
↗
30
6B44455530
L/X
Mount damper, lower side
Loading…
↗
31
6B445151004D
FOR YEM
Cover, Upper Casing
Loading…
↗
32
9011608013
FOR YEM
Bolt, Stud
Loading…
↗
33
9017008009
FOR YEM
Nut
Loading…
↗
34
9709508012
FOR YEM
Bolt, hexagon deep recess
Loading…
↗
35
9299508100
FOR YEM
Ybs67-8 washer, spring
Loading…
↗
36
9299008600
FOR YEM
Washer, plain (663)
Loading…
↗
