E48CMH (2003)
BRACKET 2

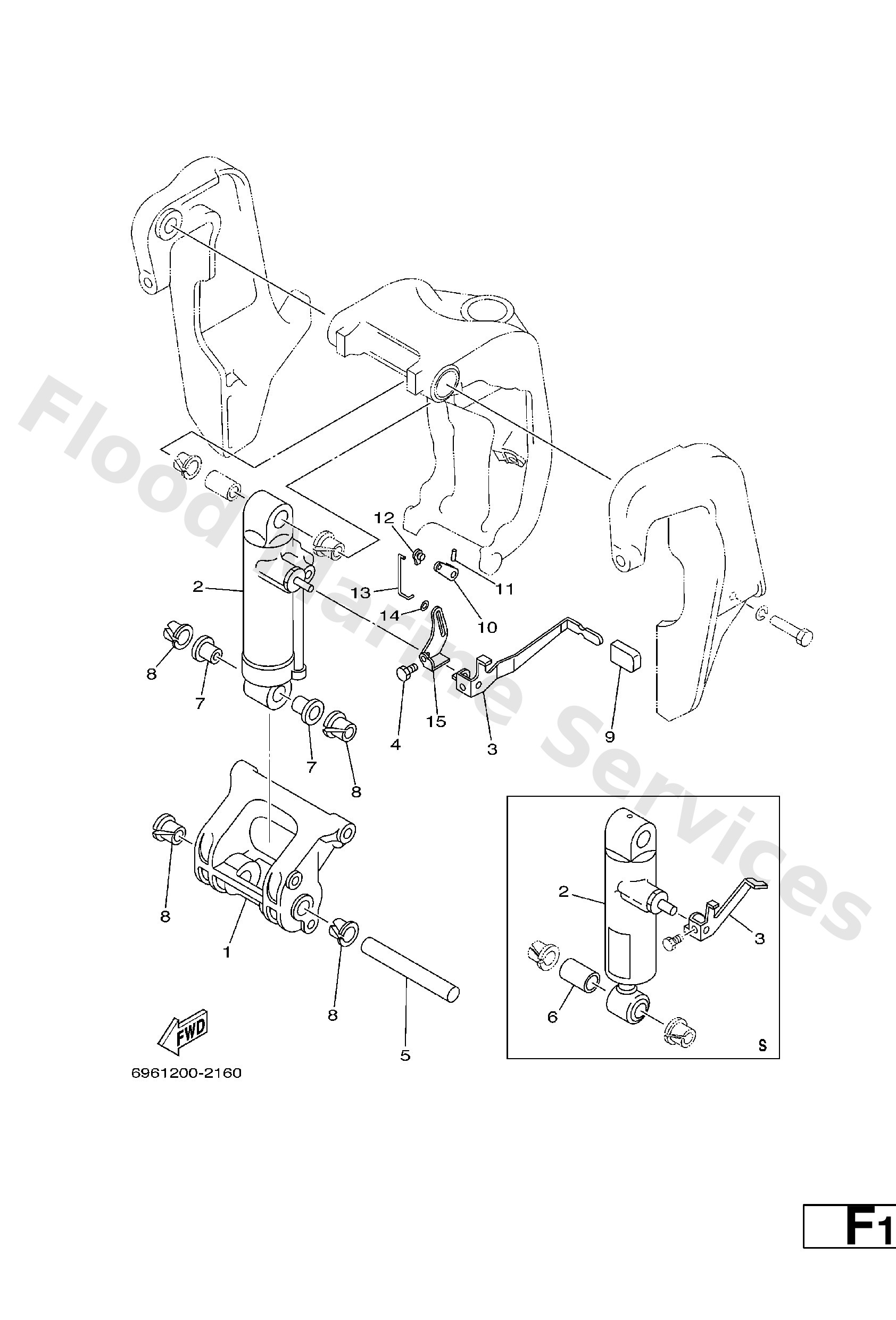

Diagram: BRACKET 2
Parts List
Reference
Description
Price
1
688−43128−01−4D
L
Spacer, clamp bracket
Loading…
↗
1
697−43128−01−4D
S
Spacer, clamp bracket
Loading…
↗
2
697−43170−03−4D
S
Shock absorber sub-assembly
Loading…
↗
2
688−43170−04−4D
L
Shock absorber sub-assembly
Loading…
↗
3
688−43631−00
S
Lever, tilt 1
Loading…
↗
3
688−43631−10
L
Lever, tilt
Loading…
↗
4
97080−06010
Bolt
Loading…
↗
5
688−43124−02
Pin, lower shock mount
Loading…
↗
6
90386−18M21
S
Bushing (688)
Loading…
↗
7
90386−18M63
L
Bush(6e5)
Loading…
↗
8
90386−18M35
Bush (688)
Loading…
↗
9
682−43318−01
L
Cover
Loading…
↗
10
688−43186−00
L
Lever
Loading…
↗
11
91690−30020
L
Pin, spring (6h4)
Loading…
↗
12
6J8−41262−00
L
Joint, choke lever
Loading…
↗
13
688−43616−00
L
Rod, tilt lock
Loading…
↗
14
90202−03M51
L
Washer, plate(688)
Loading…
↗
15
688−43651−00
L
Lever, reverse lock1
Loading…
↗
