E60HMHD (2020)
BRACKET 2

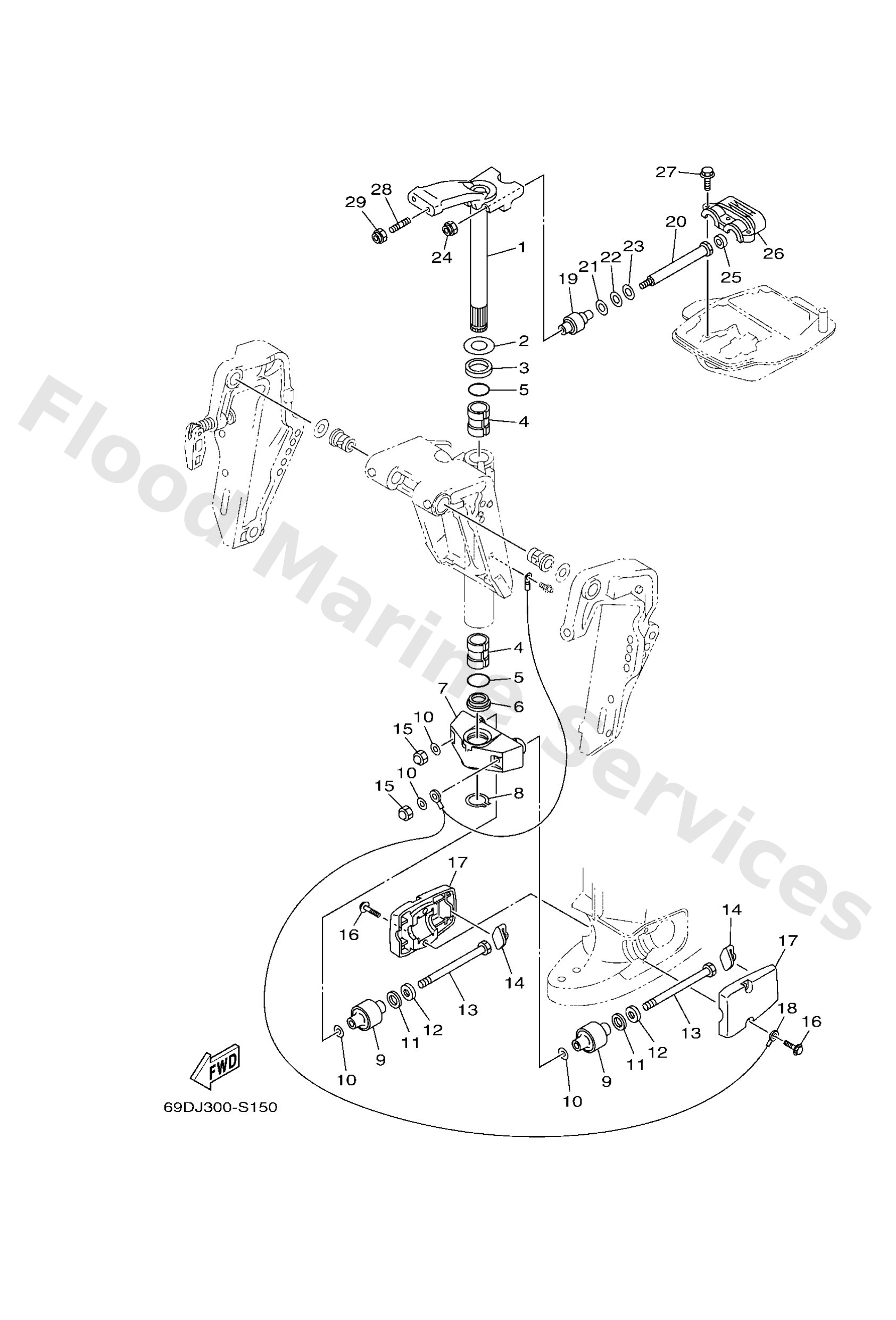

Diagram: BRACKET 2
Parts List
Reference
Description
Price
1
69D42510118D
L(22.5")
Steering bracket assembly
Loading…
↗
2
9020130M00
Washer, plate(6h1)
Loading…
↗
3
9038630M78
Bush(6h0)
Loading…
↗
4
9038630M77
Bush(6h0)
Loading…
↗
5
9321029M94
O-ring(6h1)
Loading…
↗
6
9038630M60
Bush(6j8)
Loading…
↗
7
69D44551118D
L(22.5")
Housing, lower mount rubber 1
Loading…
↗
8
9341028M06
Circlip (688)
Loading…
↗
9
6874455500
L(22.5")
Mount damper, lower side
Loading…
↗
10
9020112M16
Washer, plate (679)
Loading…
↗
11
9020225M04
Washer, plate (663)
Loading…
↗
12
9020113M19
Washer, plate (663)
Loading…
↗
13
9010912M21
Bolt (6h3)
Loading…
↗
14
6884457500
Damper, lower mount rubber
Loading…
↗
15
9538012800
Nut crown(663)
Loading…
↗
16
97E7508540
Bolt, hexagon w/w deep recess
Loading…
↗
17
6H344553108D
Cover, lower mount
Loading…
↗
18
69D8212700
L(22.5")
Wire, lead 2
Loading…
↗
19
6884451400
Mount damper, upper side
Loading…
↗
20
9010110041
Bolt
Loading…
↗
21
9020120M21
Washer, plate (688)
Loading…
↗
22
9020220M06
Washer, plate (688)
Loading…
↗
23
9020111M22
Washer, plate (688)
Loading…
↗
24
9018510027
Nut, self-locking
Loading…
↗
25
6634457500
Damper, lower mount rubber
Loading…
↗
26
6884451100
Cover, upper mount
Loading…
↗
27
97E7508535
Bolt, hexagon w/w deep recess
Loading…
↗
28
9011610063
Bolt, stud
Loading…
↗
