EK9.9HMH (2003)
BRACKET 2

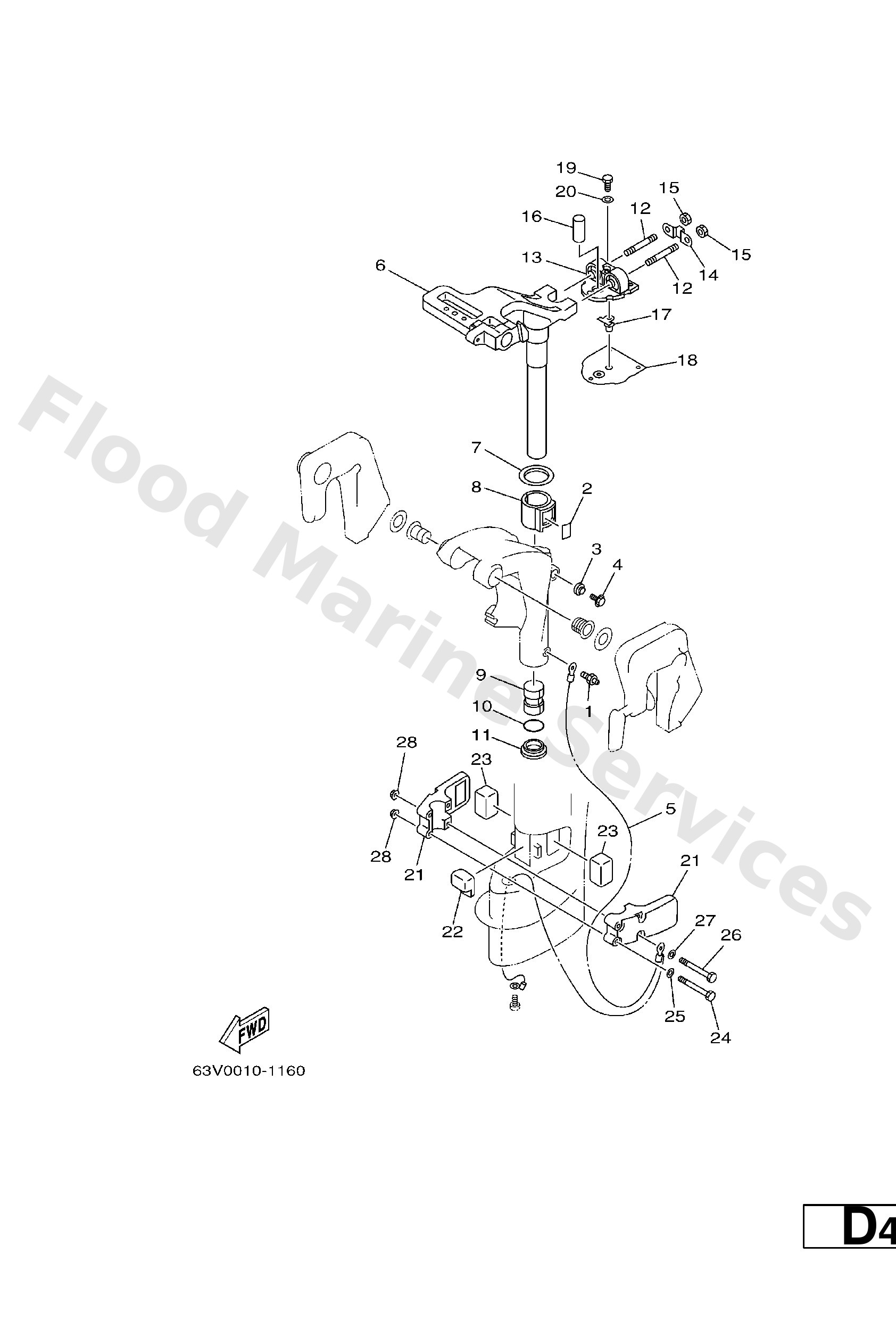

Diagram: BRACKET 2
Parts List
Reference
Description
Price
1
93700−06M03
Nipple, grease(6a1)
Loading…
↗
2
63V−42528−00
Plate, friction
Loading…
↗
3
689−43373−01
Seal, damper
Loading…
↗
4
90105−06M07
Bolt (689)
Loading…
↗
5
63V−82127−00
Wire, lead 2
Loading…
↗
6
63V−42511−04−4D
Bracket, steering
Loading…
↗
7
90209−40008
Washer
Loading…
↗
8
65F−42537−00
Bushing, pivot shaft
Loading…
↗
9
90386−30048
Bush
Loading…
↗
10
93210−29M94
O-ring(6h1)
Loading…
↗
11
90386−30M60
Bush(6j8)
Loading…
↗
12
90116−08M54
Bolt, stud(63v)
Loading…
↗
13
63V−44514−01−5B
Mount damper, upper side
Loading…
↗
14
63V−44526−00
Plate
Loading…
↗
15
95380−08600
Nut (661)
Loading…
↗
16
90387−16002
Collar
Loading…
↗
17
63V−44366−01
Damper, water seal 2
Loading…
↗
18
63V−45114−A0
Gasket, upper casing
Loading…
↗
19
97095−06018
Bolt (fj0)
Loading…
↗
20
92995−06600
Washer, plain (646)
Loading…
↗
21
63V−44551−01−4D
Housing, lower mount rubber 1
Loading…
↗
22
63V−44557−00
Mount damper, lower front
Loading…
↗
23
682−44555−00
Mount damper, lower side
Loading…
↗
24
97075−06055
Bolt, hexagon w/w deep recess
Loading…
↗
26
97075−06075
Bolt, hexagon w/w deep recess
Loading…
↗
28
90179−06M28
Nut(63v)
Loading…
↗
