F100FET (2025)
BRACKET 2

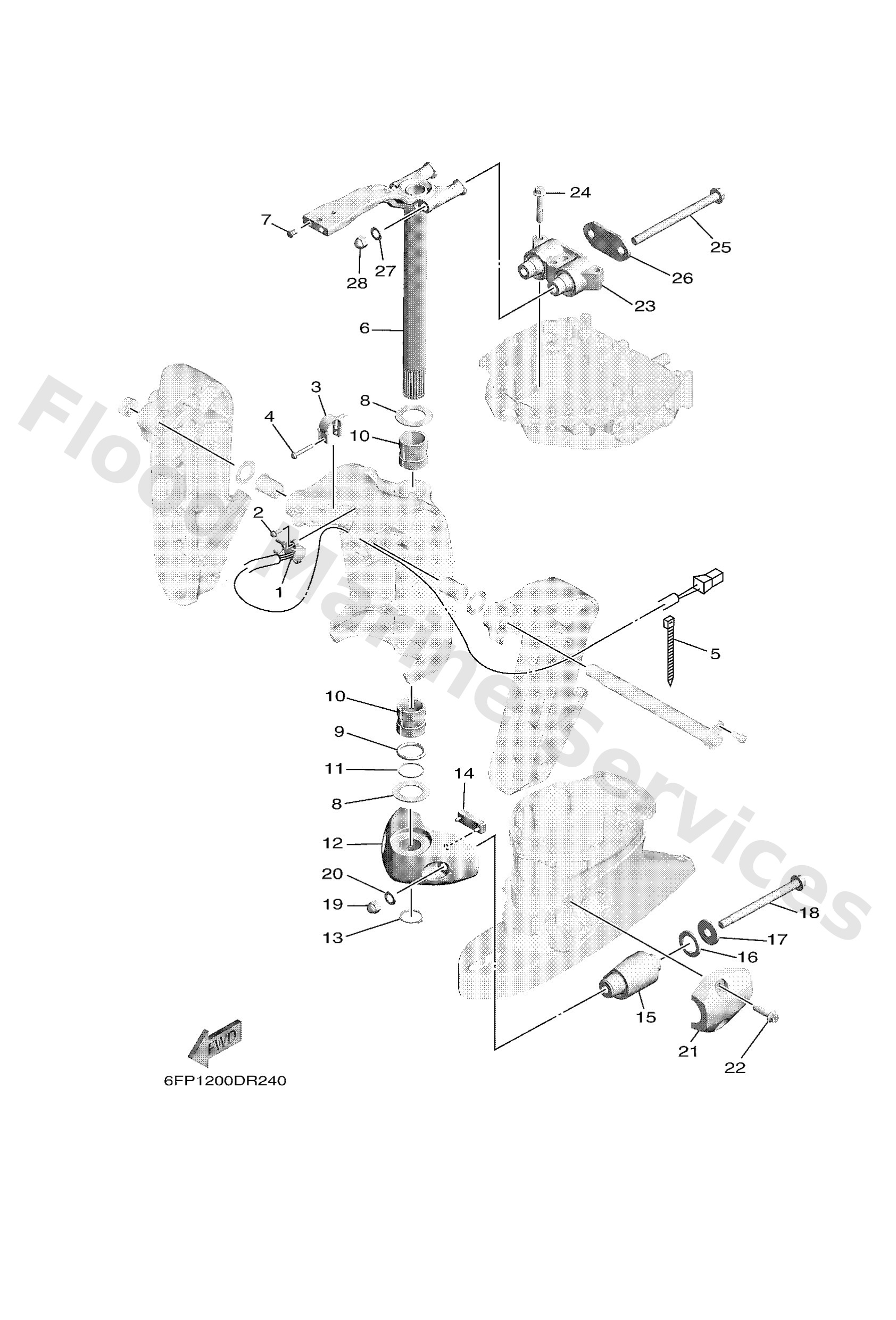

Diagram: BRACKET 2
Parts List
Reference
Description
Price
1
67H8367202
Trim sender
Loading…
↗
2
9798506216
Screw, with washer(6h2)
Loading…
↗
3
64E4313911
Cam, trim sender
Loading…
↗
4
9015905059
Screw, with washer
Loading…
↗
5
9046511M10
Clamp
Loading…
↗
6
6EK42510008D
L(20.3")
Steering bracket assembly
Loading…
↗
7
9033808174
Plug (1hx)
Loading…
↗
8
9020138M60
Washer, plate (6e5)
Loading…
↗
9
9321037MH7
O-ring(61u)
Loading…
↗
10
9038638M32
Bush(6e5)
Loading…
↗
11
9020240M47
Washer, plate(61a)
Loading…
↗
12
6EK44551008D
Housing, lower mount rubber 1
Loading…
↗
13
9341036102
Circlip
Loading…
↗
14
61A4457501
Damper, lower mount rubber
Loading…
↗
15
63P4455500
Mount damper, lower side
Loading…
↗
16
9020232M19
Washer, plate (6e5)
Loading…
↗
17
9020116M55
Washer, plate (6e5)
Loading…
↗
18
9010514013
Bolt, flange
Loading…
↗
19
9017614002
Nut, crown
Loading…
↗
20
9299514600
Washer (6e5)
Loading…
↗
21
6EK44553008D
Cover, lower mount
Loading…
↗
22
9011910058
Bolt, with washer
Loading…
↗
23
6FP4451400
Mount damper, upper side
Loading…
↗
24
95D7510060
Bolt, flange deep recess
Loading…
↗
25
9010514007
Bolt, flange
Loading…
↗
26
6EK4452600
Plate
Loading…
↗
