F175AET (2014)
BRACKET 2

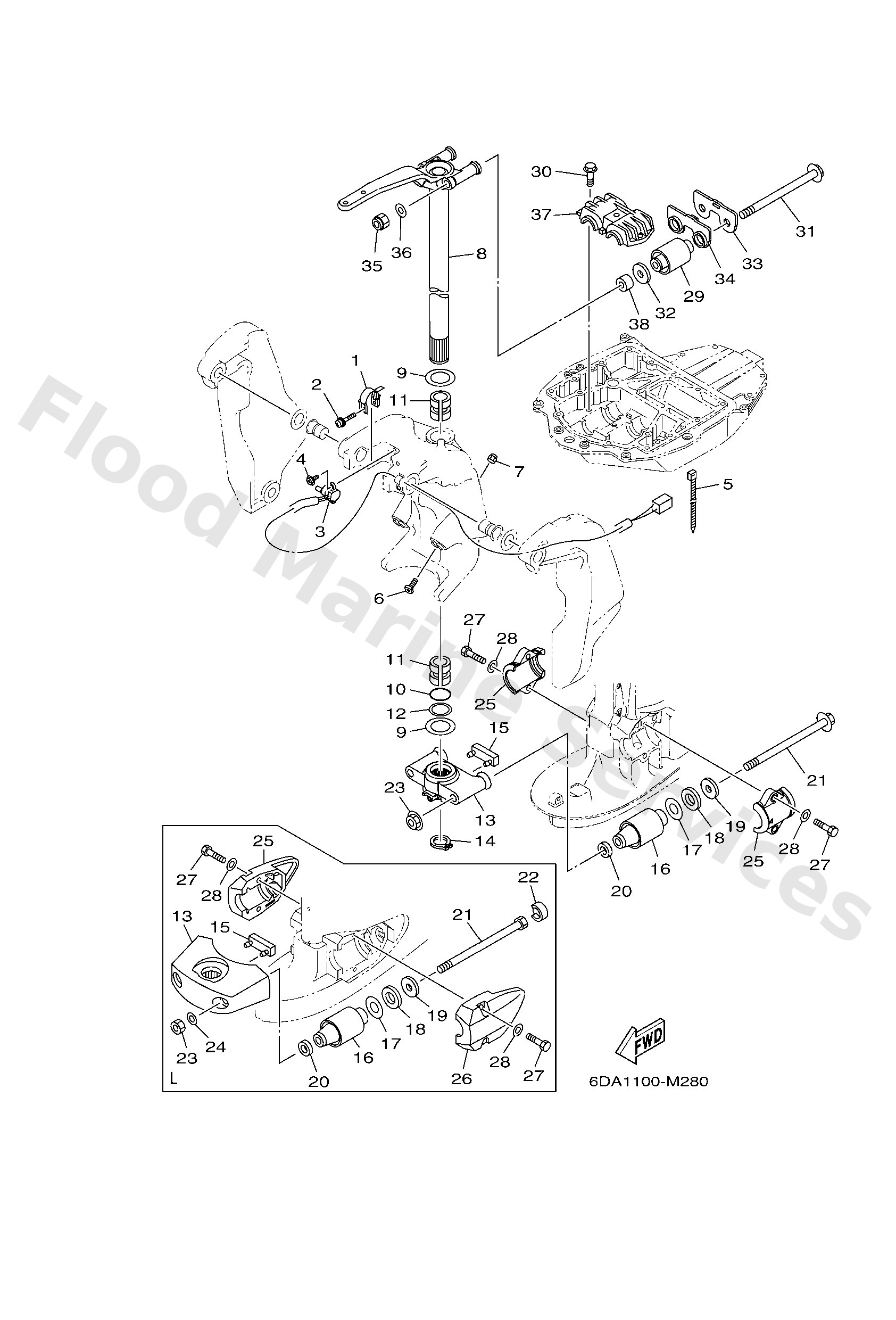

Diagram: BRACKET 2
Parts List
Reference
Description
Price
1
64E4313910
Cam, trim sender
Loading…
↗
2
9015905059
Screw, with washer
Loading…
↗
3
67H8367201
Trim sender
Loading…
↗
4
9798506216
Screw, with washer(6h2)
Loading…
↗
5
9046511M10
Clamp
Loading…
↗
6
61A4337600
Bolt, thrust receiver
Loading…
↗
7
9578010300
Nut, nylon (6e5)
Loading…
↗
8
6DA42510108D
L(20.3")
Steering bracket assembly
Loading…
↗
8
6DA42510008D
X(25.3")
Steering bracket assembly
Loading…
↗
9
9020138M60
Washer, plate (6e5)
Loading…
↗
10
9321037MH7
O-ring(61u)
Loading…
↗
11
9038638M32
Bush(6e5)
Loading…
↗
12
9020240M47
Washer, plate(61a)
Loading…
↗
13
6DA4455100CA
X(25.3")
Housing, lower mount rubber 1
Loading…
↗
13
68V44551008D
L(20.3")
Housing, lower mount rubber
Loading…
↗
14
9341037M04
Circlip (6e5)
Loading…
↗
15
61A4457500
L(20.3")
Damper, lower mount rubber
Loading…
↗
15
6DA4457500
X(25.3")
Damper, lower mount rubber
Loading…
↗
16
60V4455500
L(20.3")
Mount damper, lower side
Loading…
↗
16
63P4455500
X(25.3")
Mount damper, lower side
Loading…
↗
17
9020135008
Washer, plate
Loading…
↗
18
9020232M19
Washer, plate (6e5)
Loading…
↗
19
9020116M55
Washer, plate (6e5)
Loading…
↗
20
9020115M58
Washer, plate (6e5)
Loading…
↗
21
9010514012
X(25.3")
Bolt, flange
Loading…
↗
21
9010114004
L(20.3")
Bolt
Loading…
↗
22
69J4453300
L(20.3")
Damper, upper mount rubber
Loading…
↗
23
9560414200
X(25.3")
Nut, self-locking(4tr)
Loading…
↗
23
9538014600
L(20.3")
Nut,hex. (ge6)
Loading…
↗
24
9299514600
L(20.3")
Washer (6e5)
Loading…
↗
25
6DA4455200CA
X(25.3")
Housing, lower mount rubber 2
Loading…
↗
25
63P44553008D
L(20.3")
Cover, lower mount
Loading…
↗
26
63P44556008D
L(20.3")
Cover, lower mount 2
Loading…
↗
27
9707510040
Bolt, hexagon deep recess
Loading…
↗
28
9299510600
Washer, plate
Loading…
↗
29
6DA4451400
Mount damper, upper side
Loading…
↗
30
9011910024
Bolt, with washer
Loading…
↗
31
9010514009
Bolt, flange
Loading…
↗
32
9020116M01
Washer, plate(61a)
Loading…
↗
33
6DA4452600
Plate
Loading…
↗
34
6DA4453200
Stopper, upper mount
Loading…
↗
35
9018514M00
Nut, self-locking(61a)
Loading…
↗
37
63P4451100
Cover, upper mount
Loading…
↗
38
9038714004
Collar
Loading…
↗
