F20DET (2017)
BRACKET 2

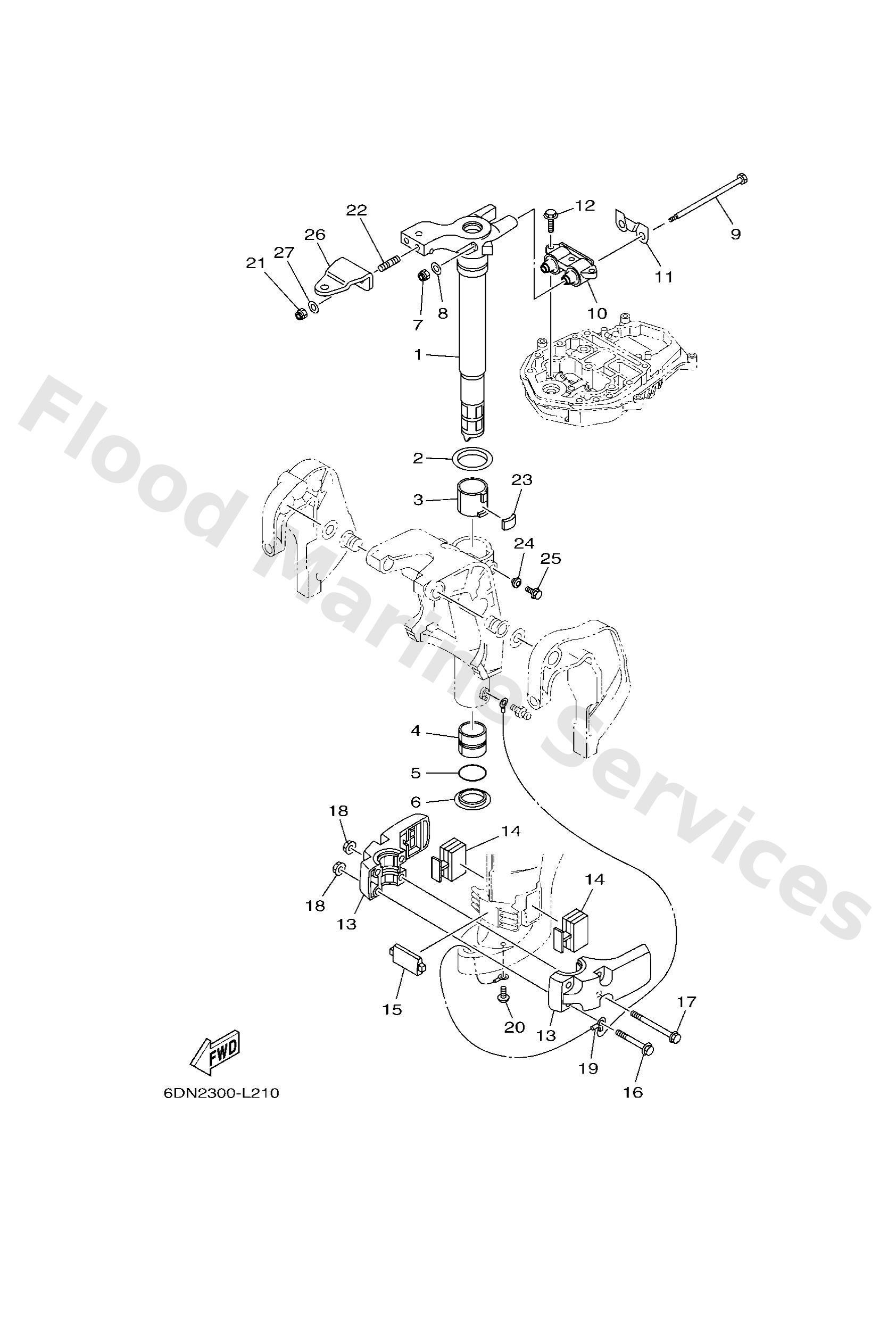

Diagram: BRACKET 2
Parts List
Reference
Description
Price
1
65W42511118D
Bracket, steering
Loading…
↗
2
9020952M00
Washer (676)
Loading…
↗
3
9038652M02
Bushing (676)
Loading…
↗
4
9038644M03
Bushing (676)
Loading…
↗
5
9321043MJ0
O-ring
Loading…
↗
6
9038644M99
Bush
Loading…
↗
7
9018508018
Nut, self-locking
Loading…
↗
8
9299508200
Ybs66-8 washer, plain
Loading…
↗
9
9010108M86
Bolt (6h4)
Loading…
↗
10
67C4451420
Mount damper, upper side
Loading…
↗
11
66T4452630
Plate
Loading…
↗
12
9757508530
Bolt, hexagon w/w deep recess
Loading…
↗
13
65W44551118D
Housing, lower mount rubber 1
Loading…
↗
14
65W4455500
Mount damper, lower side
Loading…
↗
15
65W4457501
Damper, lower mount rubber
Loading…
↗
16
9757510580
Bolt, hexagon w/w deep recess
Loading…
↗
17
9011910M14
Bolt, with washer
Loading…
↗
18
9017910M33
Nut
Loading…
↗
19
65W8212710
Wire, lead 2
Loading…
↗
20
9788506008
Screw, pan head(6a3)
Loading…
↗
21
9018510027
Nut, self-locking
Loading…
↗
22
9011610064
Bolt, stud
Loading…
↗
23
6484252800
Plate, friction
Loading…
↗
24
65W4337300
Seal, damper
Loading…
↗
25
9010508M76
Bolt, washer based
Loading…
↗
26
65W4851101
Hook, steering
Loading…
↗
27
9020110049
Washer, plate
