F20GMH (2020)
BRACKET 2

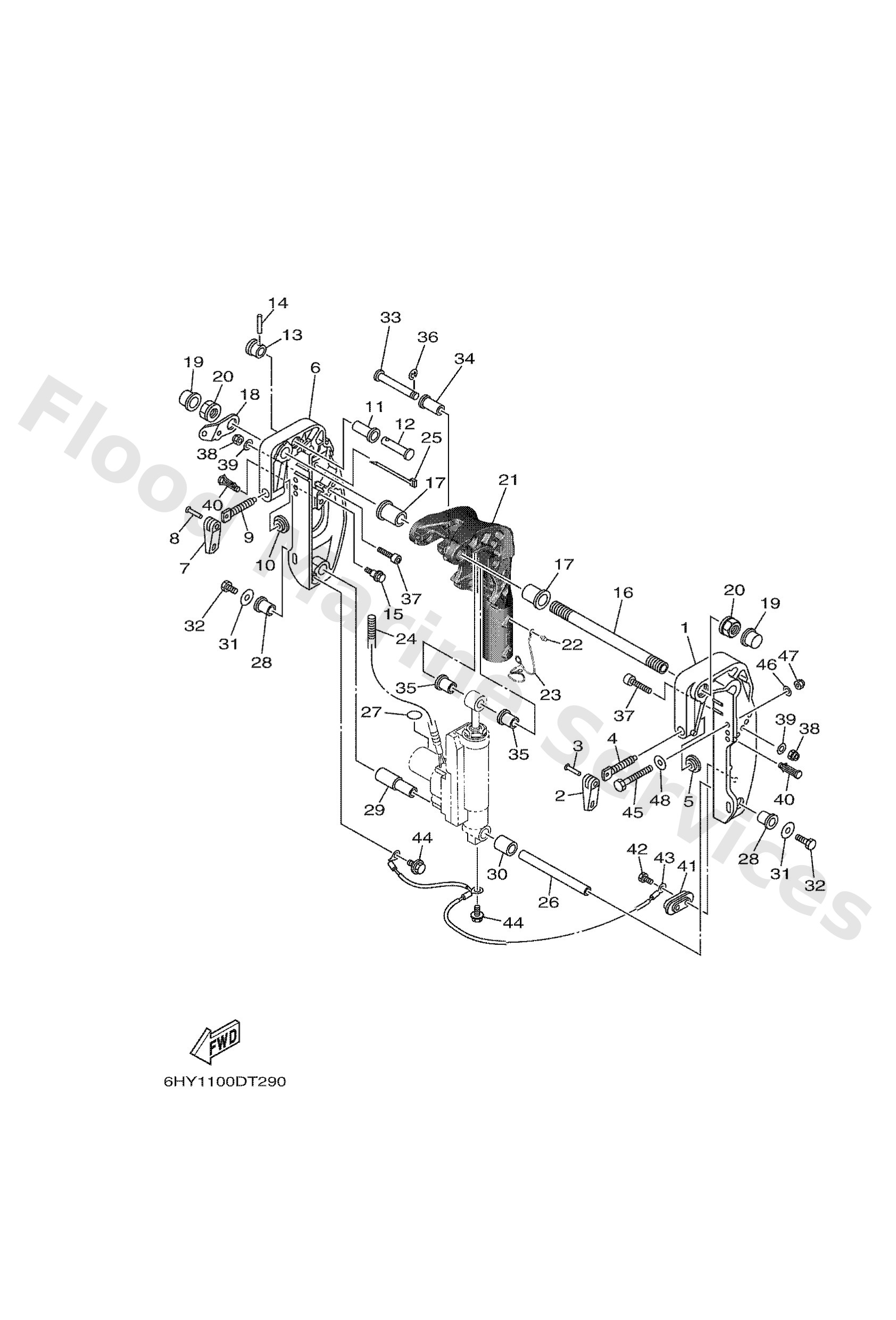

Diagram: BRACKET 2
Parts List
Reference
Description
Price
1
69A43111018D
Bracket, clamp 1
Loading…
↗
2
6E04311801
Handle, transom clamp
Loading…
↗
3
9024304M01
Pin(6a1)
Loading…
↗
4
6E74311600
Screw, transom clamp
Loading…
↗
5
6484311401
Pad, transom clamp
Loading…
↗
6
69A43112028D
Bracket, clamp 2
Loading…
↗
11
9038614MA1
Bush
Loading…
↗
12
65W4319100
Shaft, stopper
Loading…
↗
13
65W4319200
Knob, stopper
Loading…
↗
14
9169030018
926-51502-00 pin, spring (700)
Loading…
↗
15
9010906MA1
Bolt
Loading…
↗
16
69A4313100
FOR REMOTE CONTROL
Bolt, clamp bracket
Loading…
↗
17
9038622MA4
Bush
Loading…
↗
18
69A4311300
Plate, clamp bracket
Loading…
↗
19
6G54314501
Cap, clamp bracket
Loading…
↗
20
9018522043
Nut, self-locking
Loading…
↗
21
6HY43311008D
S(16.7")
Bracket, swivel 1
Loading…
↗
21
6HY43311108D
L(21.7")
Bracket, swivel 1
Loading…
↗
22
9370006M03
Nipple, grease(6a1)
Loading…
↗
23
6AH8212700
Wire, lead 2
Loading…
↗
24
9044614MH7
Hose
Loading…
↗
25
9046513M97
Clamp
Loading…
↗
26
69G4381800
Pin, lower shock mount
Loading…
↗
27
69A4315500
Mark 1
Loading…
↗
28
9038616MA7
Bush
Loading…
↗
29
9038616MA8
Bush
Loading…
↗
30
9038716M02
Collar
Loading…
↗
31
9020108M00
Washer, plate(6e0)
Loading…
↗
32
9708008016
Bolt
Loading…
↗
33
9024912M36
Pin
Loading…
↗
34
9038112M10
Bush, solid
Loading…
↗
35
9038112M11
Bush, solid
Loading…
↗
36
9908010600
Circlip
Loading…
↗
37
9011008121
Bolt, hexagon socket head
Loading…
↗
38
9018508057
Nut, nylon (6j8)
Loading…
↗
39
9299008600
Washer, plain (663)
Loading…
↗
40
9033808M19
S(16.7")
Plug
Loading…
↗
41
65W4525100
Anode
Loading…
↗
42
9010106020
Bolt
Loading…
↗
43
63V8212700
Wire, lead 2
Loading…
↗
44
97E9506510
Bolt, hexagon w/w deep recess
Loading…
↗
45
9010108M88
Bolt (6g8)
Loading…
↗
48
9020108MA4
Washer, plate (6g8)
Loading…
↗
