F225AET (2002)
BRACKET 2

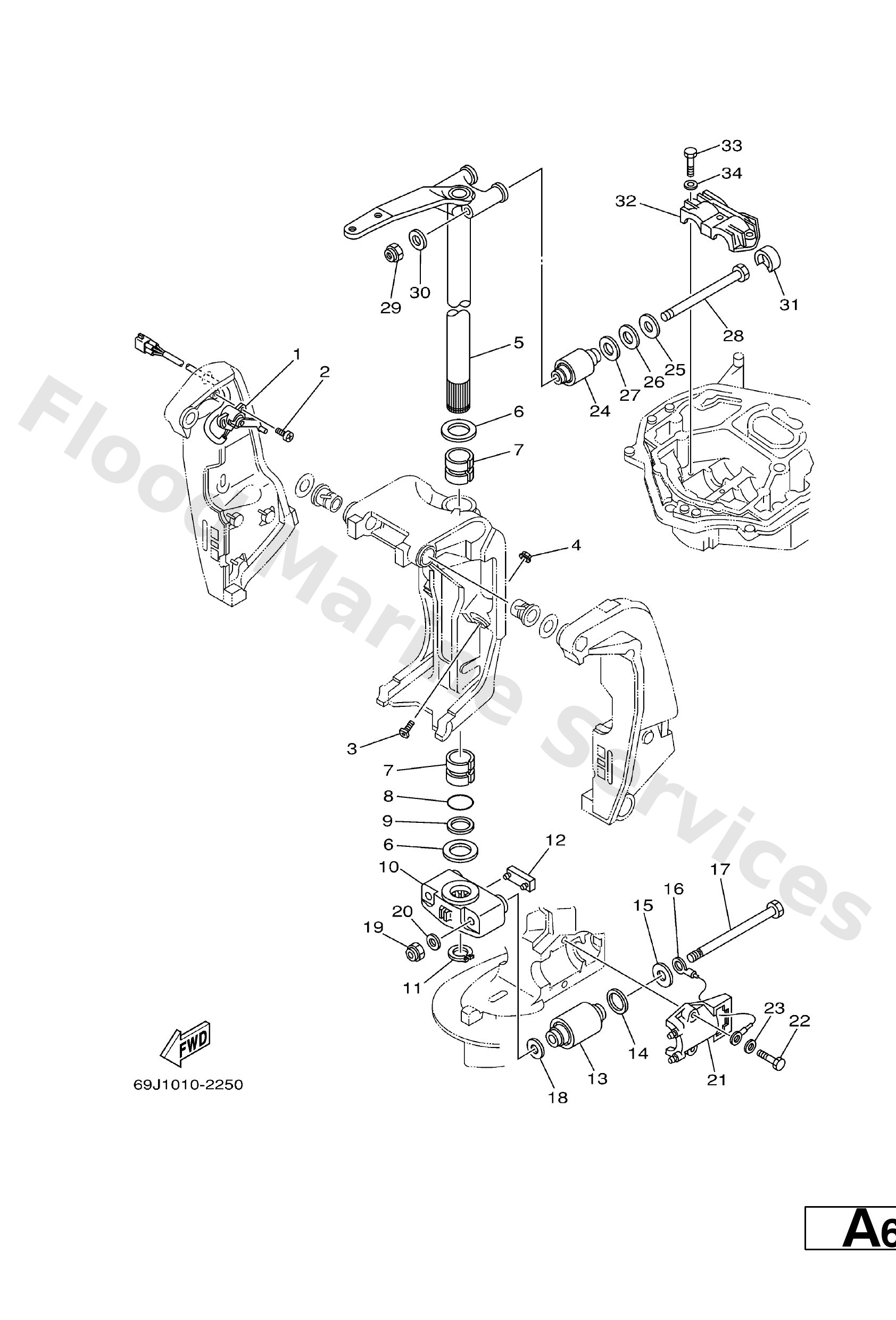

Diagram: BRACKET 2
Parts List
Reference
Description
Price
1
69J8367200
Trim sender
Loading…
↗
2
9788506016
Screw, pan head(6b0)
Loading…
↗
3
61A4337600
Bolt, thrust receiver
Loading…
↗
4
9578010300
Nut, nylon (6e5)
Loading…
↗
5
69J42510008D
Steering bracket assembly
Loading…
↗
6
9020140M00
Washer, plate(61a)
Loading…
↗
7
9038639M89
Bush(61a)
Loading…
↗
8
9321035321
O-ring (3m7)
Loading…
↗
9
9020240M47
Washer, plate(61a)
Loading…
↗
10
69J44551008D
Housing, lower mount rubber 1
Loading…
↗
11
9341037M04
Circlip (6e5)
Loading…
↗
12
61A4457500
Damper, lower mount rubber
Loading…
↗
13
66K445550094
Mount damper, lower side
Loading…
↗
14
9020232M19
Washer, plate (6e5)
Loading…
↗
15
9020116M55
Washer, plate (6e5)
Loading…
↗
16
6E58214900
Wire, lead 3
Loading…
↗
17
9010914M48
Bolt
Loading…
↗
18
9020115M58
Washer, plate (6e5)
Loading…
↗
19
9018514M00
Nut, self-locking(61a)
Loading…
↗
20
9299514600
Washer (6e5)
Loading…
↗
21
61A445520194
Housing, lower mount rubber
Loading…
↗
22
9709510045
Bolt(64d)
Loading…
↗
23
9299510600
Washer, plate
Loading…
↗
24
66K445140094
Mount damper, upper side
Loading…
↗
25
9020116M01
Washer, plate(61a)
Loading…
↗
26
9020228M46
Washer, plate(61a)
Loading…
↗
27
9020128M01
Washer, plate(61a)
Loading…
↗
28
9010914M10
Bolt
Loading…
↗
31
69J4453300
Damper, upper mount rubber
Loading…
↗
32
61A445110094
Cover, upper mount
Loading…
↗
