F225XCB (2023)
BRACKET 2

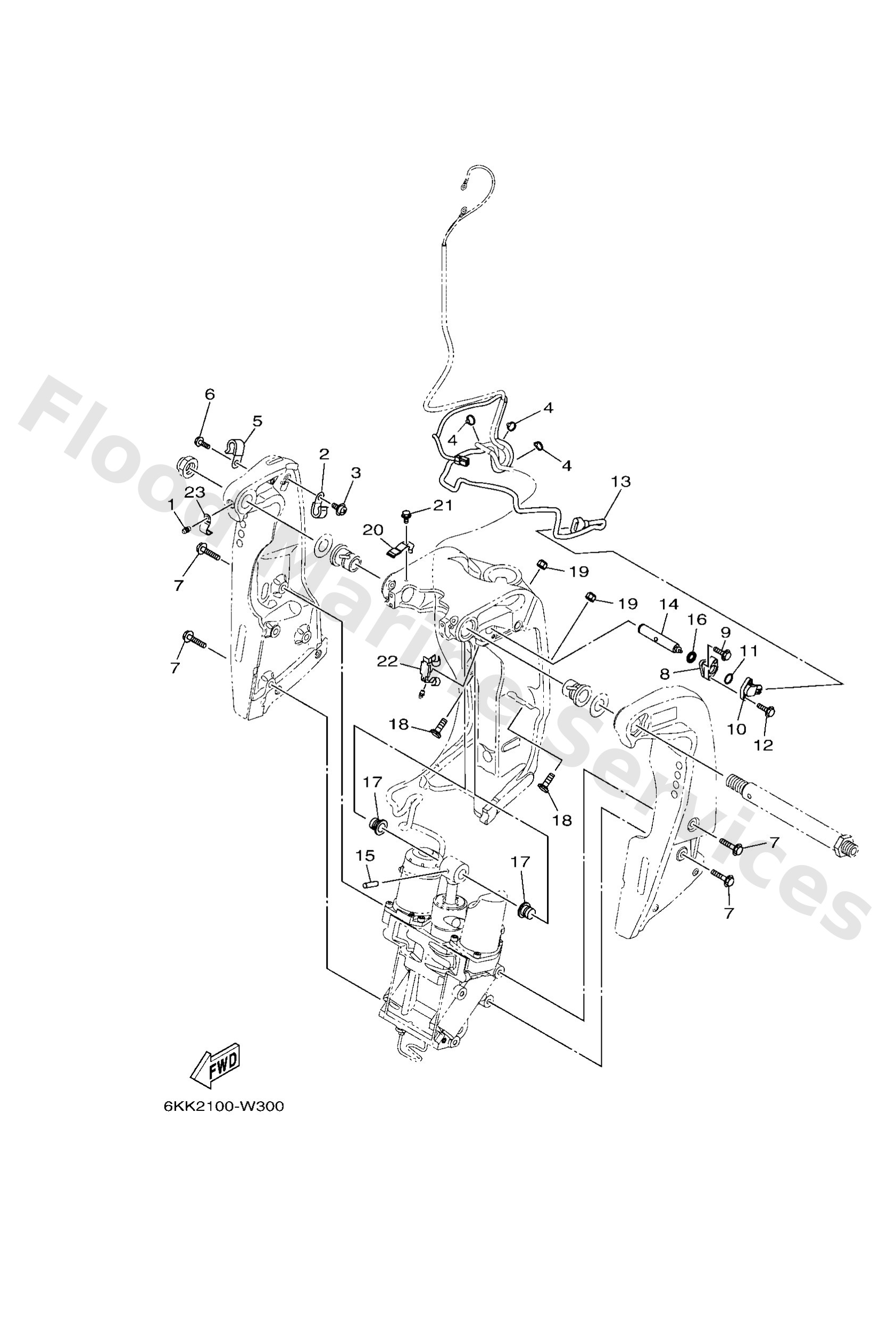

Diagram: BRACKET 2
Parts List
Reference
Description
Price
1
9370006002
Nipple, grease
Loading…
↗
2
9046508M83
Clamp
Loading…
↗
3
9798506212
Screw, with washer(6h3)
Loading…
↗
4
9046511M10
Clamp
Loading…
↗
6
9758506510
Bolt, with washer
Loading…
↗
7
9011910024
Bolt, with washer
Loading…
↗
8
6KA4382A00
Adaptor 1
Loading…
↗
9
9759505516
Bolt, with washer
Loading…
↗
10
6GR8588700
Sensor angle
Loading…
↗
11
9321017MF9
O-ring(6u1)
Loading…
↗
13
6KF8255300
Extension, wire lead
Loading…
↗
14
6KA4312600
Pin, upper shock mount
Loading…
↗
15
9169060022
Pin, spring
Loading…
↗
16
9321006ME6
O-ring
Loading…
↗
17
9038618M14
Bushing (6e5)
Loading…
↗
18
6AW4337600
Bolt, thrust receiver
Loading…
↗
19
9578010300
Nut, nylon (6e5)
Loading…
↗
20
6KF4282900
Plate, clamp 2
Loading…
↗
22
6KF4282800
Plate, clamp
Loading…
↗
23
9046208104
Clamp
Loading…
↗
