F25AEH (1998)
BRACKET 2

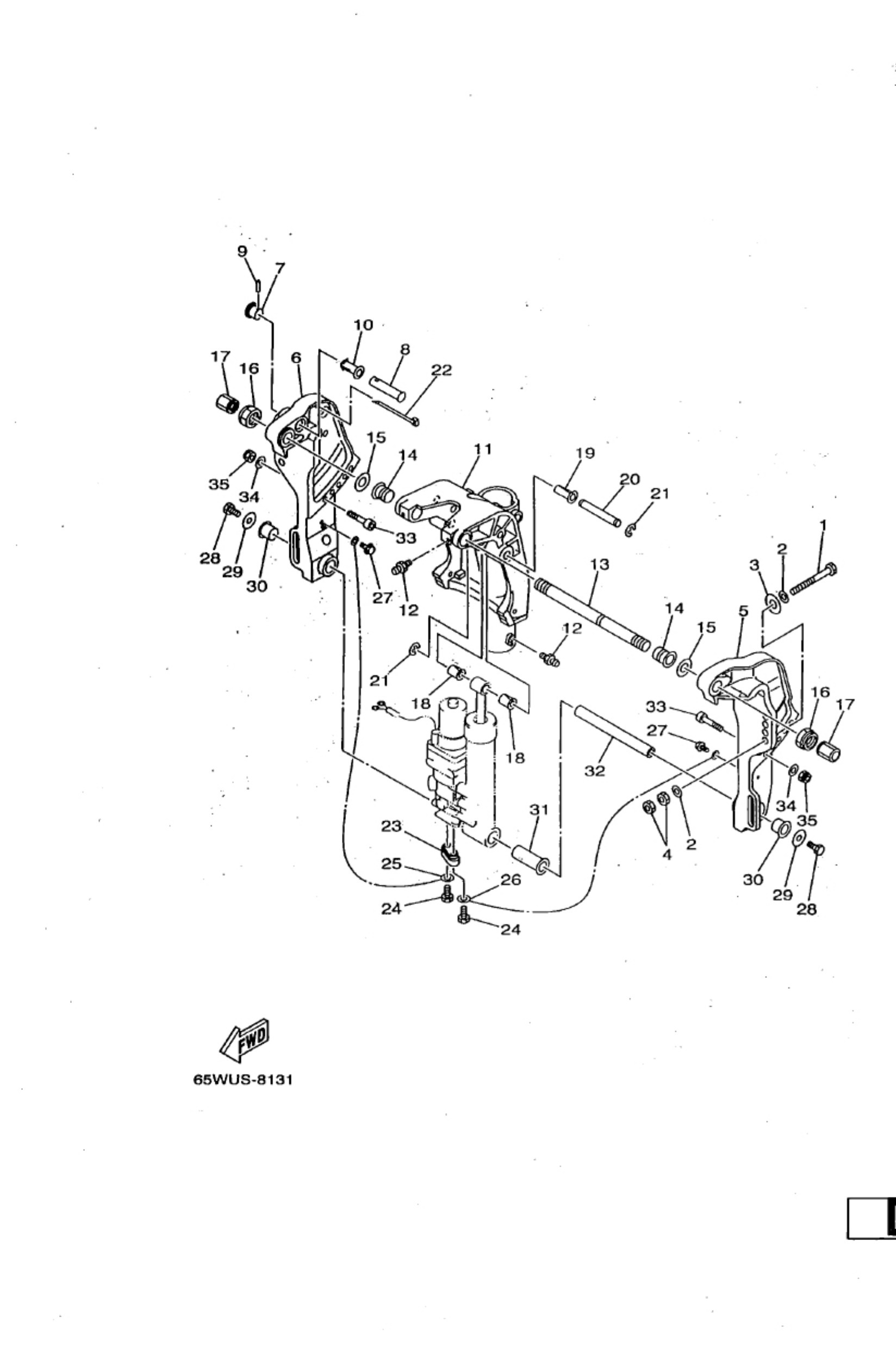

Diagram: BRACKET 2
Parts List
Reference
Description
Price
1
9010112M65
Bolt
Loading…
↗
2
9299512200
Ybs66-12 washer,plain
Loading…
↗
3
9020112426
Washe, plate(663)
Loading…
↗
4
9538012600
Nut (707)
Loading…
↗
5
65W43111104D
Bracket, clamp 1
Loading…
↗
5
65W4319200
Knob, stopper
Loading…
↗
5
65W4319100
Shaft, stopper
Loading…
↗
9
9169030018
926-51502-00 pin, spring (700)
Loading…
↗
10
9038614MA1
Bush
Loading…
↗
12
9370006M03
Nipple, grease(6a1)
Loading…
↗
13
363D4313100
Bolt, Clamp Bracket
Loading…
↗
14
9038622M15
Bushing (688)
Loading…
↗
15
9020122M03
Washer, plate(64j)
Loading…
↗
17
6G54314500
Cap, clamp bracket
Loading…
↗
18
9038612MA0
Bush, solid
Loading…
↗
22
9046513M11
Clamp (6e5)
Loading…
↗
23
65W4525100
Anode
Loading…
↗
24
9708506025
Bolt
Loading…
↗
24
65WUS8131
WIRE, LEAD 4
25 6H1-82148-00
Loading…
↗
27
9759506514
Bolt(gj3)
Loading…
↗
28
9708008016
Bolt
Loading…
↗
29
9020108M00
Washer, plate(6e0)
Loading…
↗
30
9038618M44
Bushing (6g5)
Loading…
↗
31
9038618MAO
Bush
Loading…
↗
32
9024918M35
Pin, lower shock mount
Loading…
↗
33
011010M02
Bolt. Hexagon Socket Head
Loading…
↗
34
9299510600
Washer, plate
Loading…
↗
35
9018510M13
Nut, self-locking
Loading…
↗
