F25AMH (2009)
BRACKET 2

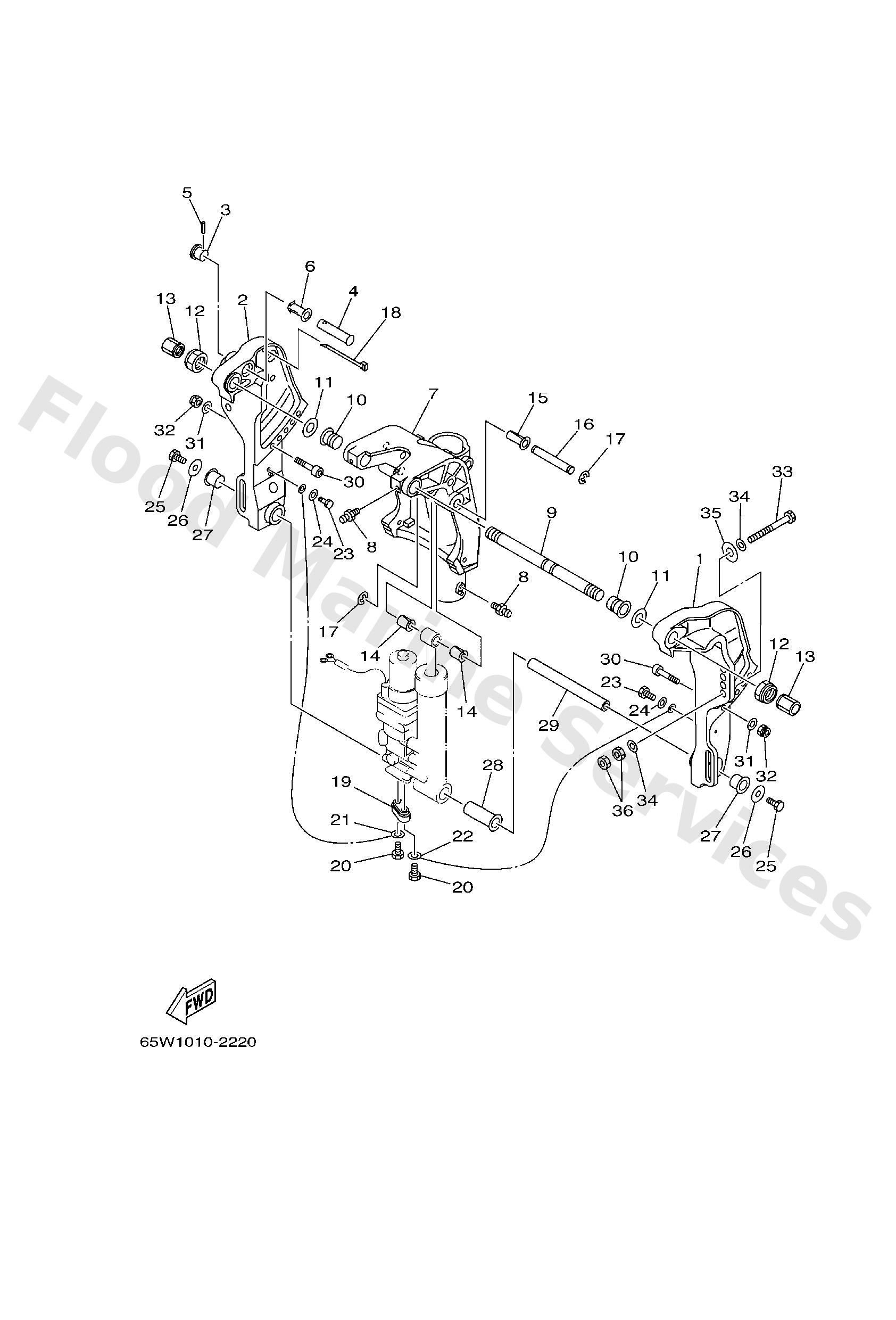

Diagram: BRACKET 2
Parts List
Reference
Description
Price
1
65W43111104D
Bracket, clamp 1
Loading…
↗
2
65W43112104D
Bracket, clamp 2
Loading…
↗
3
65W4319200
Knob, stopper
Loading…
↗
4
65W4319100
Shaft, stopper
Loading…
↗
5
9169030018
926-51502-00 pin, spring (700)
Loading…
↗
6
9038614MA1
Bush
Loading…
↗
7
65W43311104D
L(21.6")
Bracket, swivel 1
Loading…
↗
8
9370006M03
Nipple, grease(6a1)
Loading…
↗
9
63D4313101
Bolt, clamp bracket
Loading…
↗
10
9038622M15
Bushing (688)
Loading…
↗
11
9020122M03
Washer, plate(64j)
Loading…
↗
12
9018522M11
Nut, self-locking
Loading…
↗
13
6G54314501
Cap, clamp bracket
Loading…
↗
14
9038612MA0
Bush, solid
Loading…
↗
15
9038612M98
Bush
Loading…
↗
16
9024912M38
Pin
Loading…
↗
17
9908010600
Circlip
Loading…
↗
18
9046513M11
Clamp (6e5)
Loading…
↗
19
65W4525100
Anode
Loading…
↗
20
9010106020
Bolt
Loading…
↗
21
6H18214800
Wire, lead
Loading…
↗
22
6U08212700
Wire, lead 5
Loading…
↗
23
9709506014
Bolt(gj3)
Loading…
↗
24
9299506600
Washer, plain (646)
Loading…
↗
25
9708008016
Bolt
Loading…
↗
26
9020108M00
Washer, plate(6e0)
Loading…
↗
27
9038618M44
Bushing (6g5)
Loading…
↗
28
9038618MA0
Bush
Loading…
↗
29
9024918M35
Pin, lower shock mount
Loading…
↗
30
9011010M02
Bolt, hexagon socket head
Loading…
↗
31
9299510600
Washer, plate
Loading…
↗
32
9018510M13
Nut, self-locking
Loading…
↗
33
9010112M65
Bolt
Loading…
↗
34
9299512200
Ybs66-12 washer,plain
Loading…
↗
35
9020112426
Washe, plate(663)
Loading…
↗
36
9538012600
Nut (707)
Loading…
↗
