F25GWH (2022)
BRACKET 2

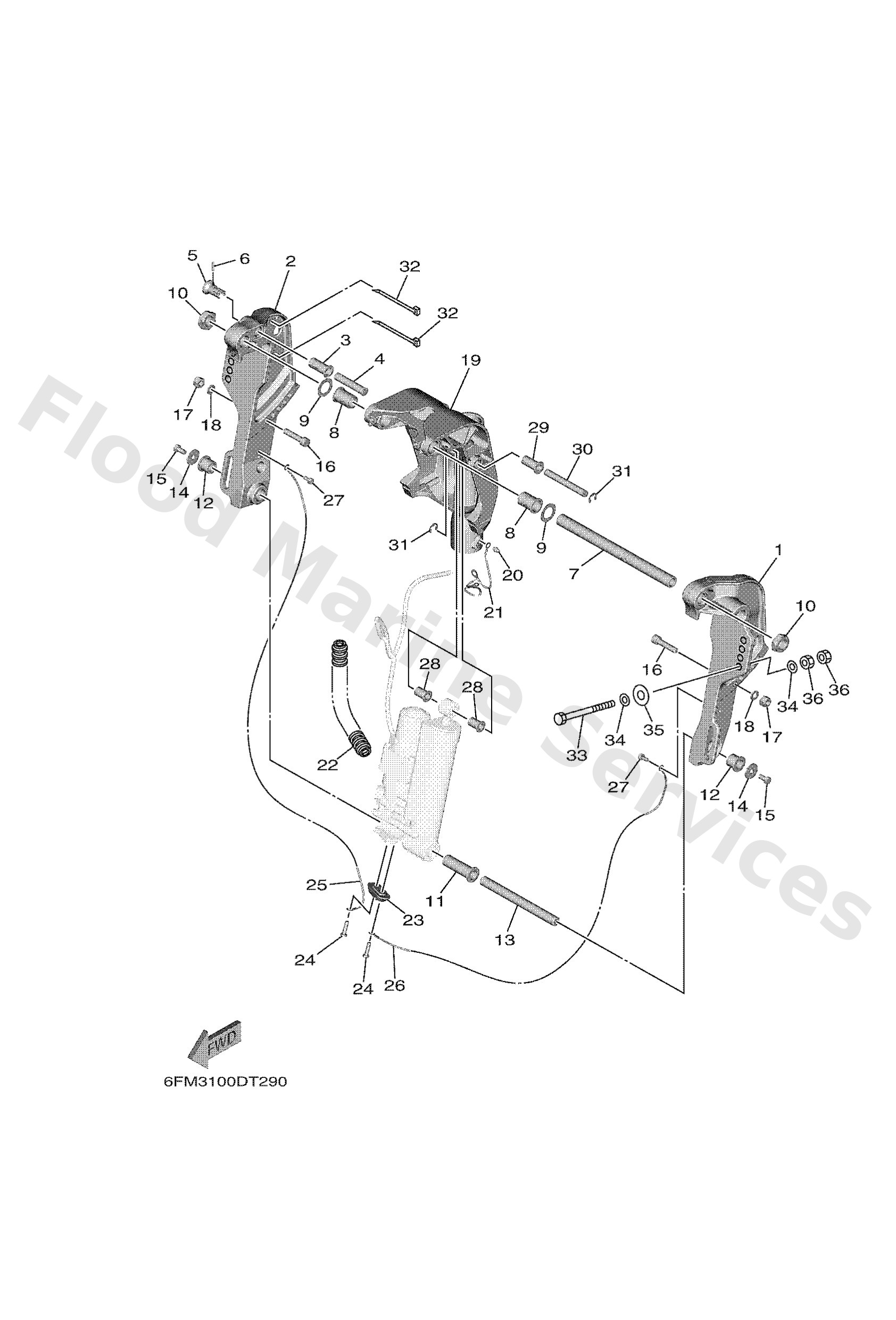

Diagram: BRACKET 2
Parts List
Reference
Description
Price
1
65W43111108D
Bracket, clamp 1
Loading…
↗
2
65W43112108D
Bracket, clamp 2
Loading…
↗
3
6FM4318900
Bushing
Loading…
↗
4
65W4319100
Shaft, stopper
Loading…
↗
5
6FM4319200
Knob, stopper
Loading…
↗
6
9169030018
926-51502-00 pin, spring (700)
Loading…
↗
7
63D4313101
Bolt, clamp bracket
Loading…
↗
8
9038622M15
Bushing (688)
Loading…
↗
9
9020122M03
Washer, plate(64j)
Loading…
↗
10
9018522043
Nut, self-locking
Loading…
↗
11
9038618MA0
Bush
Loading…
↗
12
9038618M44
Bushing (6g5)
Loading…
↗
13
9024918M35
Pin, lower shock mount
Loading…
↗
14
9020108M00
Washer, plate(6e0)
Loading…
↗
15
9708008016
Bolt
Loading…
↗
16
9011010061
Bolt, hexagon socket head
Loading…
↗
17
9018510M13
Nut, self-locking
Loading…
↗
18
9299510600
Washer, plate
Loading…
↗
19
6FM43311308D
S(16.7")
Bracket, swivel 1
Loading…
↗
19
6FM43311208D
L(21.7")
Bracket, swivel 1
Loading…
↗
20
9370006M03
Nipple, grease(6a1)
Loading…
↗
21
6FM8212700
Wire, lead 2
Loading…
↗
22
9044710010
Tube
Loading…
↗
23
65W4525100
Anode
Loading…
↗
24
9010106020
Bolt
Loading…
↗
25
6H18214800
Wire, lead
Loading…
↗
26
6U08212700
Wire, lead 5
Loading…
↗
27
97E9506514
Bolt, hexagon w/w deep recess
Loading…
↗
28
9038112M11
Bush, solid
Loading…
↗
29
9038612M98
Bush
Loading…
↗
30
9024912M38
Pin
Loading…
↗
31
9908010600
Circlip
Loading…
↗
32
9046513M11
Clamp (6e5)
Loading…
↗
33
9010112063
Bolt
Loading…
↗
34
9020112062
Washer, plate
Loading…
↗
35
9020112426
Washe, plate(663)
Loading…
↗
36
9538012600
Nut (707)
Loading…
↗
