F300NSB (2025)
BRACKET 2

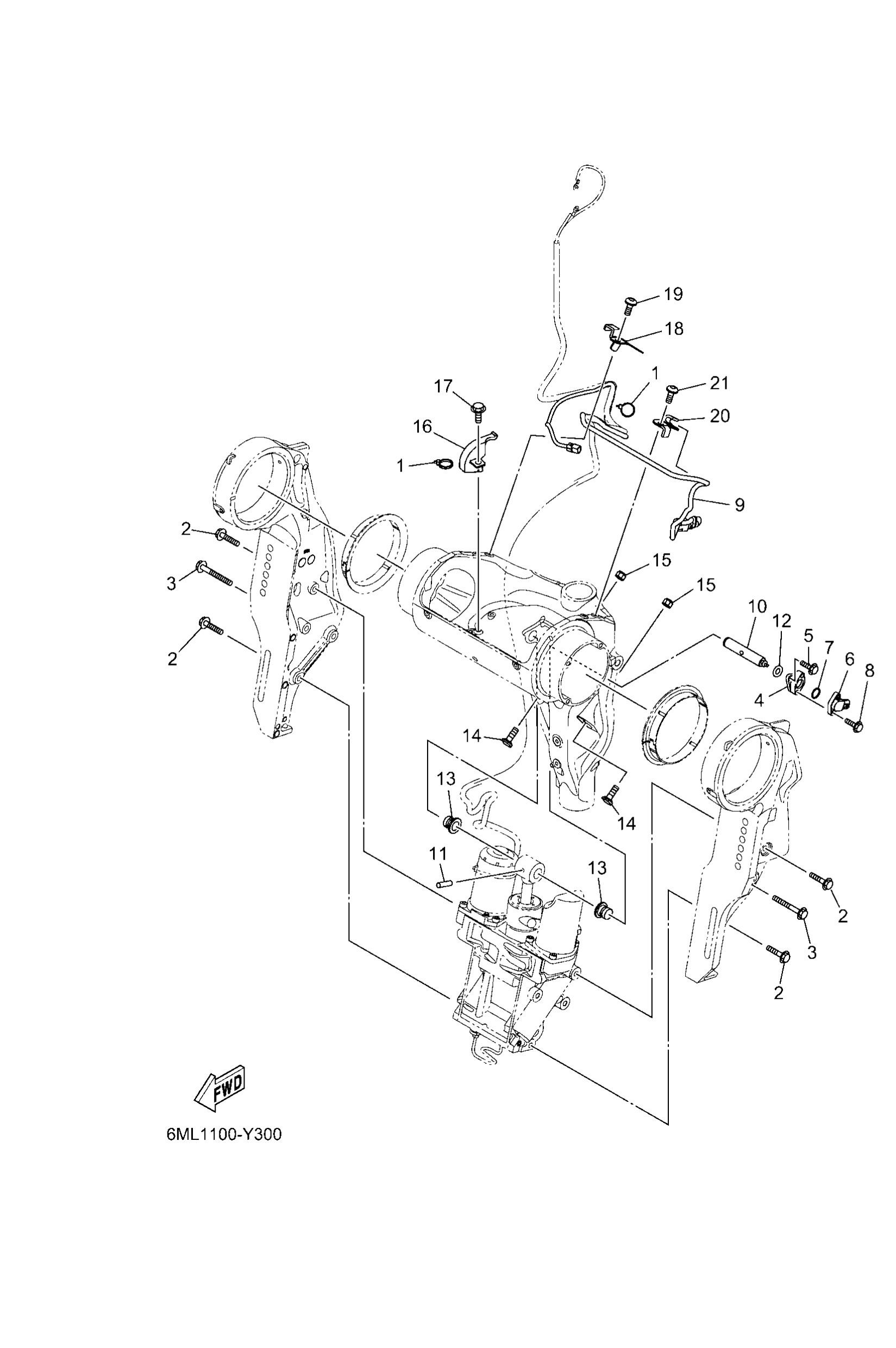

Diagram: BRACKET 2
Parts List
Reference
Description
Price
1
9046511M10
Clamp
Loading…
↗
2
9011910024
Bolt, with washer
Loading…
↗
3
9011910064
Bolt, with washer
Loading…
↗
4
6KA4382A00
Adaptor 1
Loading…
↗
5
9759505516
Bolt, with washer
Loading…
↗
6
6GR8588700
Sensor angle
Loading…
↗
7
9321017MF9
O-ring(6u1)
Loading…
↗
9
6KA8255300
Extension, wire lead
Loading…
↗
10
6KA4312600
Pin, upper shock mount
Loading…
↗
11
9169060022
Pin, spring
Loading…
↗
12
9321006ME6
O-ring
Loading…
↗
13
9038618M14
Bushing (6e5)
Loading…
↗
14
6AW4337600
Bolt, thrust receiver
Loading…
↗
15
9578010300
Nut, nylon (6e5)
Loading…
↗
16
6KA4765100
Protector
Loading…
↗
17
95D9506012
Bolt, flange deep recess
Loading…
↗
18
6KA4381E00
Bracket
Loading…
↗
19
9011106144
Bolt,hex. socket button
Loading…
↗
20
6KA4381F00
Bracket
Loading…
↗
