F40CET (2006)
BRACKET 2

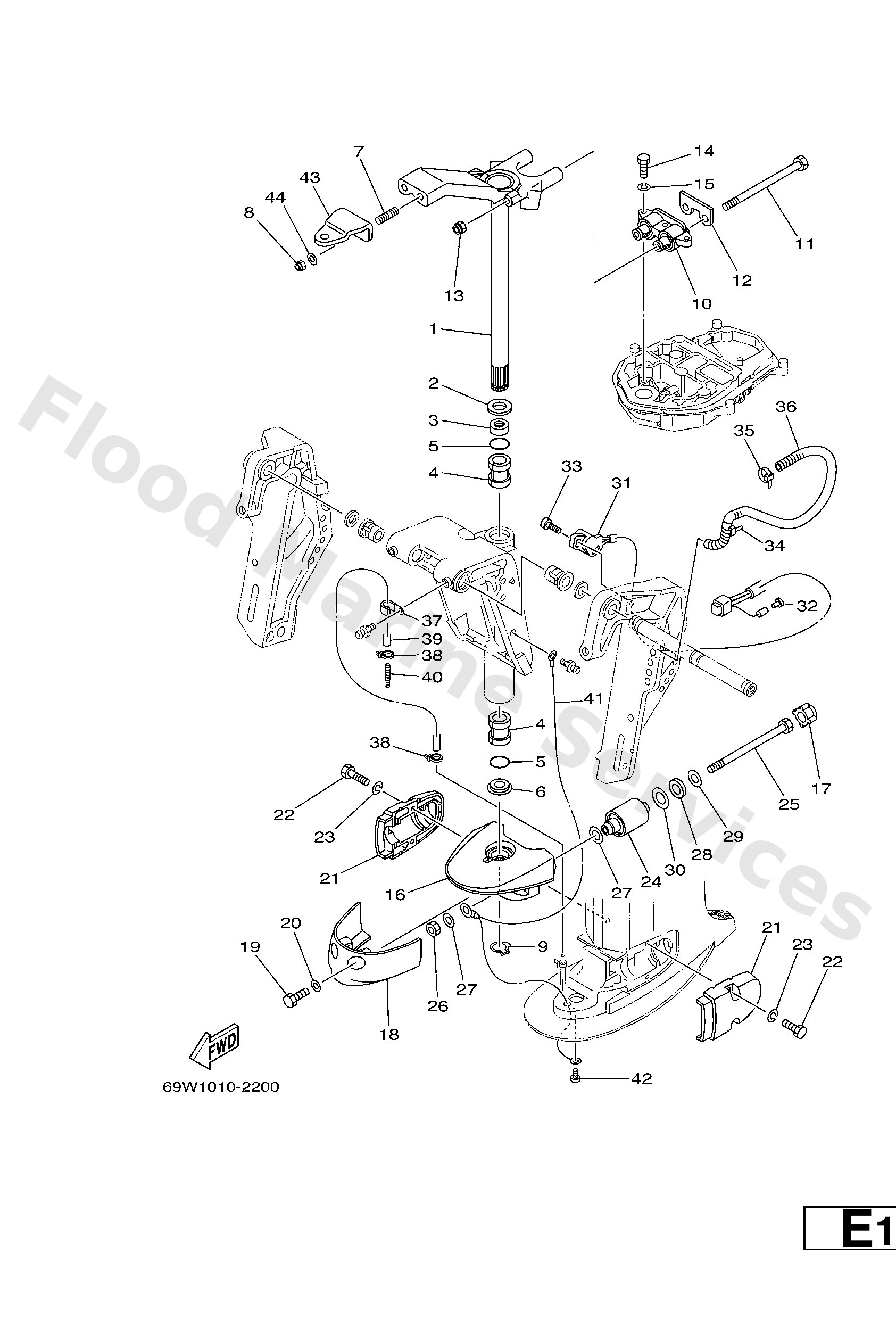

Diagram: BRACKET 2
Parts List
Reference
Description
Price
1
69W42510014D
Steering bracket assembly
Loading…
↗
2
9020130M00
Washer, plate(6h1)
Loading…
↗
3
9038630M78
Bush(6h0)
Loading…
↗
4
9038630M77
Bush(6h0)
Loading…
↗
5
9321029M94
O-ring(6h1)
Loading…
↗
6
9038630M60
Bush(6j8)
Loading…
↗
7
9011610M28
Bolt, stud
Loading…
↗
8
9018510051
Nut, self-locking
Loading…
↗
9
9341028M06
Circlip (688)
Loading…
↗
10
69W44514004D
L (20.7")
Mount damper, upper side
Loading…
↗
11
9010108M15
Bolt
Loading…
↗
12
69W4452601
Plate
Loading…
↗
13
9018508045
Nut, self-locking
Loading…
↗
14
9707508030
Bolt, hexagon (fj1)
Loading…
↗
15
9299508100
Ybs67-8 washer, spring
Loading…
↗
16
69W44551004D
Housing, lower mount rubber 1
Loading…
↗
17
69W4457500
L (20.7")
Damper, lower mount rubber
Loading…
↗
18
67C44553004D
Cover, lower mount
Loading…
↗
19
9709508020
Bolt, hexagon
Loading…
↗
20
9299508600
Washer, plain (663)
Loading…
↗
21
67C44552014D
Housing, lower mount rubber
Loading…
↗
24
69W44555004D
Mount damper, lower side
Loading…
↗
25
9010912MA3
Bolt
Loading…
↗
26
9538012700
Nut(6t4)
Loading…
↗
27
9020112M16
Washer, plate (679)
Loading…
↗
28
9020221100
Washer plate (663)
Loading…
↗
29
9020113M19
Washer, plate (663)
Loading…
↗
30
9020122M05
Washer, plate
Loading…
↗
31
63D8367201
Trim sender
Loading…
↗
32
7038211900
Cover, lead wire
Loading…
↗
33
9788506016
Screw, pan head(6b0)
Loading…
↗
34
9046513M18
Clamp
Loading…
↗
35
9046511M10
Clamp
Loading…
↗
36
9044617M91
Hose
Loading…
↗
37
9046506M86
Clamp
Loading…
↗
39
9044507M53
Hose (l1160)
Loading…
↗
40
6E58355800
End, nipple
Loading…
↗
41
67C8212710
Wire, lead 2
Loading…
↗
42
9788506008
Screw, pan head(6a3)
Loading…
↗
43
65W4851100
Hook, steering
Loading…
↗
44
9020110120
Washer, plate
Loading…
↗
