Yamaha Outboard Parts - BRACKET 2 - F40JMHD (2025) | Flood Marine
New Search
Parts
New Outboards
Home
F40JMHD (2025)
BRACKET 2

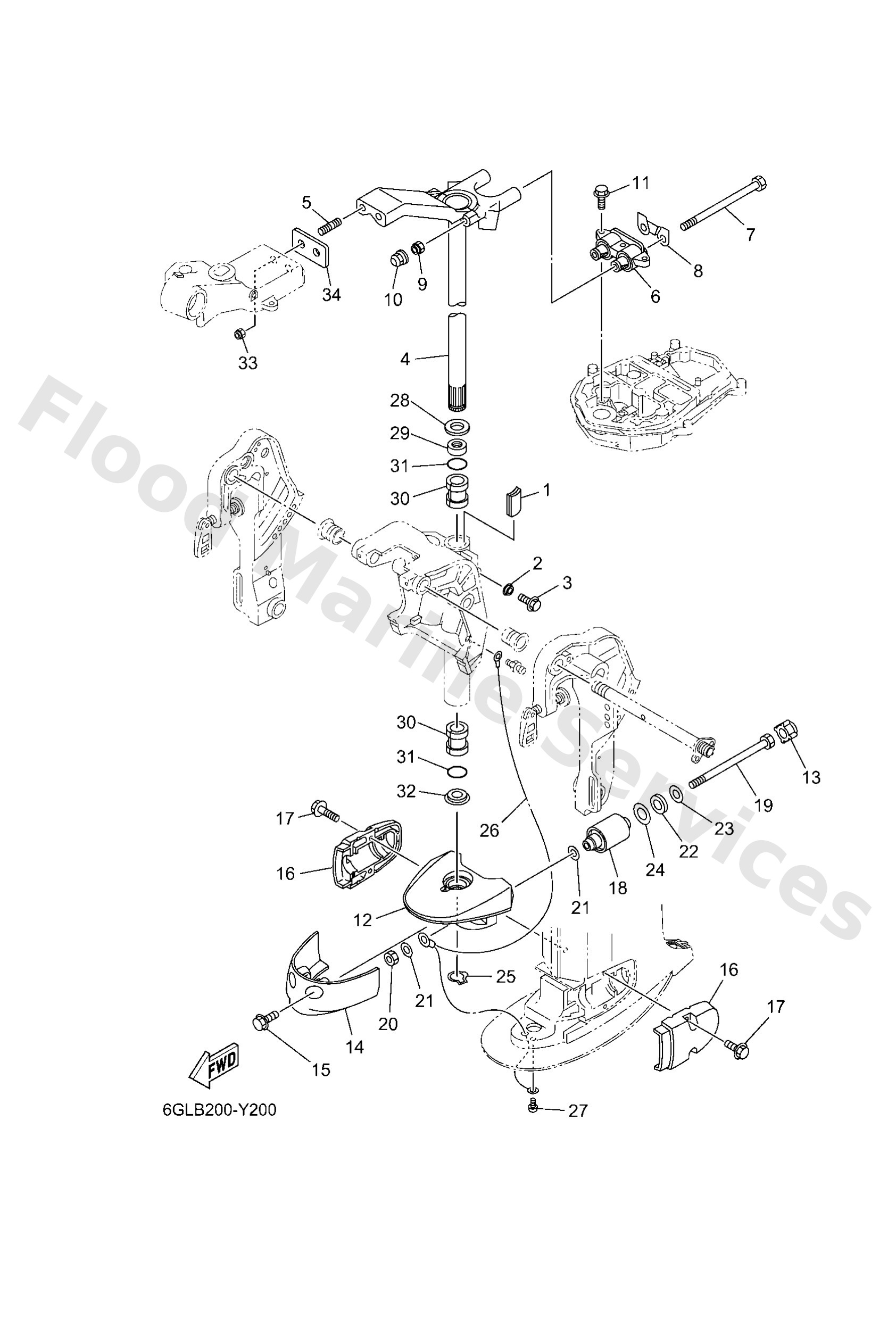

Diagram: BRACKET 2
Parts List
Reference
Description
Price
1
6J84252801
Plate, friction
Loading…
↗
2
6894337302
Seal, damper
Loading…
↗
3
97E9506522
Bolt, hexagon w/w deep recess
Loading…
↗
4
6BG42510108D
Steering bracket assembly
Loading…
↗
5
9011610064
Bolt, stud
Loading…
↗
6
67C4451400
Mount damper, upper side
Loading…
↗
7
9010908229
Bolt
Loading…
↗
8
66T4452630
Plate
Loading…
↗
9
9018508018
Nut, self-locking
Loading…
↗
10
66T4419410
Cap
Loading…
↗
11
97E9508530
Bolt, hexagon w/w deep recess
Loading…
↗
12
67C44551108D
Housing, lower mount rubber
Loading…
↗
13
69W4457501
Damper, lower mount rubber
Loading…
↗
14
67C44553008D
Cover, lower mount
Loading…
↗
15
97E9508520
Bolt, hexagon w/w deep recess
Loading…
↗
16
6C544552008D
Housing, lower mount rubber 2
Loading…
↗
17
9011908094
Bolt, with washer
Loading…
↗
18
67C4455521
Mount damper, lower side
Loading…
↗
19
9010912MA3
Bolt
Loading…
↗
20
9538012700
Nut(6t4)
Loading…
↗
21
9020112M16
Washer, plate (679)
Loading…
↗
22
9020221100
Washer plate (663)
Loading…
↗
23
9020113M19
Washer, plate (663)
Loading…
↗
24
9020122M05
Washer, plate
Loading…
↗
25
9341028M06
Circlip (688)
Loading…
↗
26
67C8212710
Wire, lead 2
Loading…
↗
27
9788506008
Screw, pan head(6a3)
Loading…
↗
28
9020130M00
Washer, plate(6h1)
Loading…
↗
29
9038630M78
Bush(6h0)
Loading…
↗
30
9038630M77
Bush(6h0)
Loading…
↗
31
9321029M94
O-ring(6h1)
Loading…
↗
32
9038630M60
Bush(6j8)
Loading…
↗
33
9018510027
Nut, self-locking
Loading…
↗
34
6EK4212100
Bracket
Loading…
↗
