F50FED (2008)
BRACKET 2

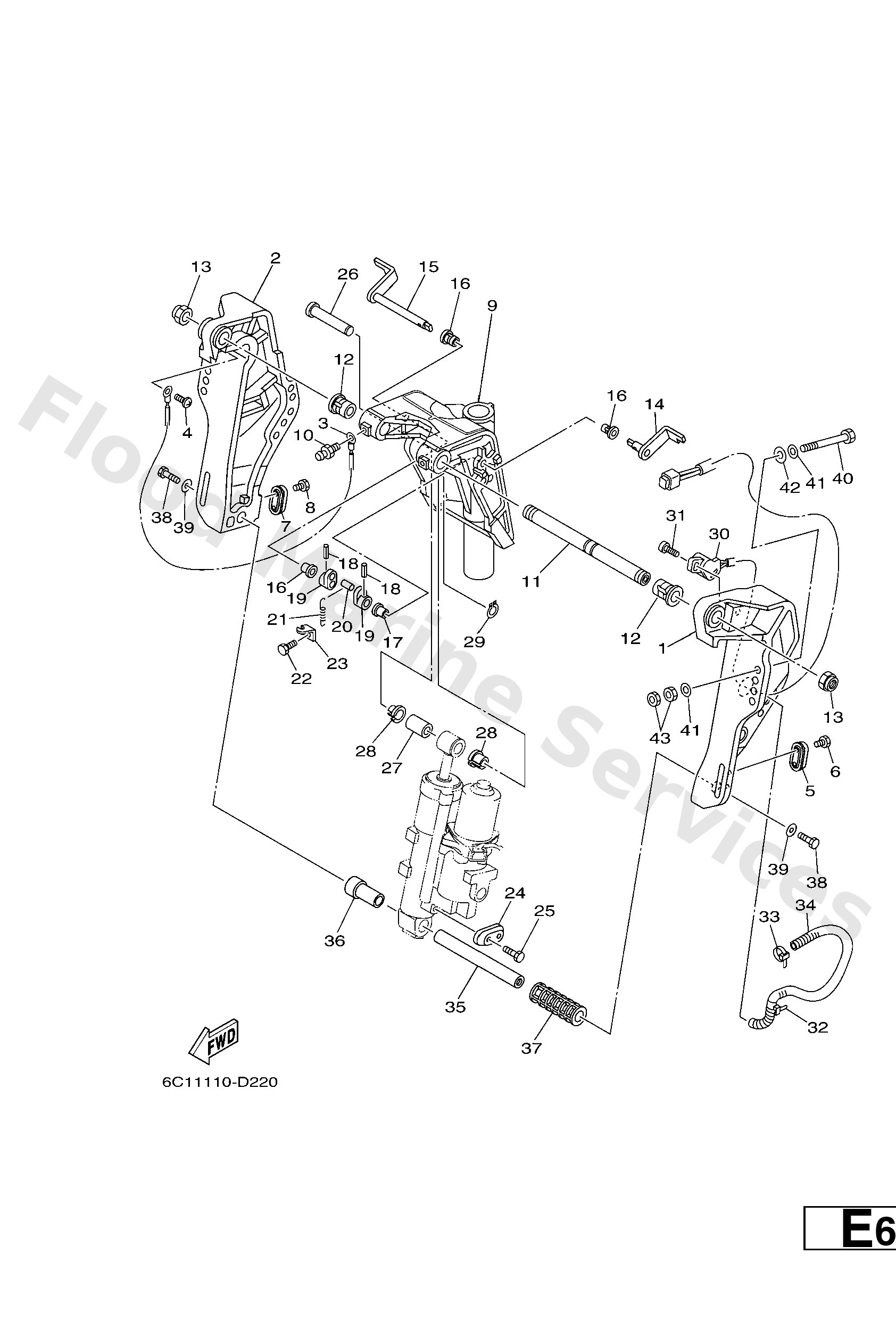

Diagram: BRACKET 2
Parts List
Reference
Description
Price
1
6C543111008D
Bracket, clamp 1
Loading…
↗
2
6C543112008D
Bracket, clamp 2
Loading…
↗
3
6E58214800
Wire, lead 5
Loading…
↗
4
9788506008
Screw, pan head(6a3)
Loading…
↗
5
65W4525100
Anode
Loading…
↗
6
9010106020
Bolt
Loading…
↗
9
6C543311008D
Bracket, swivel 1
Loading…
↗
10
9370006M03
Nipple, grease(6a1)
Loading…
↗
11
63D4313110
Bolt, clamp bracket
Loading…
↗
12
9038622MA4
Bush
Loading…
↗
13
9018522007
Nut, self-locking
Loading…
↗
14
6C54318110
Lever, tilt stop 1
Loading…
↗
15
6C54318510
Lever, tilt stop 2
Loading…
↗
16
9038610M16
Bushing (688)
Loading…
↗
17
9038610025
Bushing (658)
Loading…
↗
18
9169030020
Pin, spring (6h4)
Loading…
↗
19
6G54314800
Collar, distance
Loading…
↗
20
9024906M19
Pin(6e5)
Loading…
↗
21
9050614M24
Spring, tension(6e5)
Loading…
↗
22
9709506010
Bolt
Loading…
↗
23
6G54314400
Hook, spring
Loading…
↗
26
6E54312602
Pin, upper shock mount
Loading…
↗
27
9038618M92
Bush(62x)
Loading…
↗
28
9038618M35
Bush (688)
Loading…
↗
29
9341018M02
Circlip (6f2)
Loading…
↗
30
63D8367210
Trim sender
Loading…
↗
31
9788506016
Screw, pan head(6b0)
Loading…
↗
32
9046476001
Clamp
Loading…
↗
33
9046511M10
Clamp
Loading…
↗
34
9044719009
Hose, with spring
Loading…
↗
35
6C54381800
Pin, lower shock mount
Loading…
↗
36
6C54383300
Pipe
Loading…
↗
37
6C54383400
Pipe
Loading…
↗
38
9010108016
Bolt(6td)
Loading…
↗
39
9020108064
Washer, plate
Loading…
↗
40
9010112M65
Bolt
Loading…
↗
41
9299512200
Ybs66-12 washer,plain
Loading…
↗
42
9020112426
Washe, plate(663)
Loading…
↗
43
9538012600
Nut (707)
Loading…
↗
