F6BMH (2003)
BRACKET 2

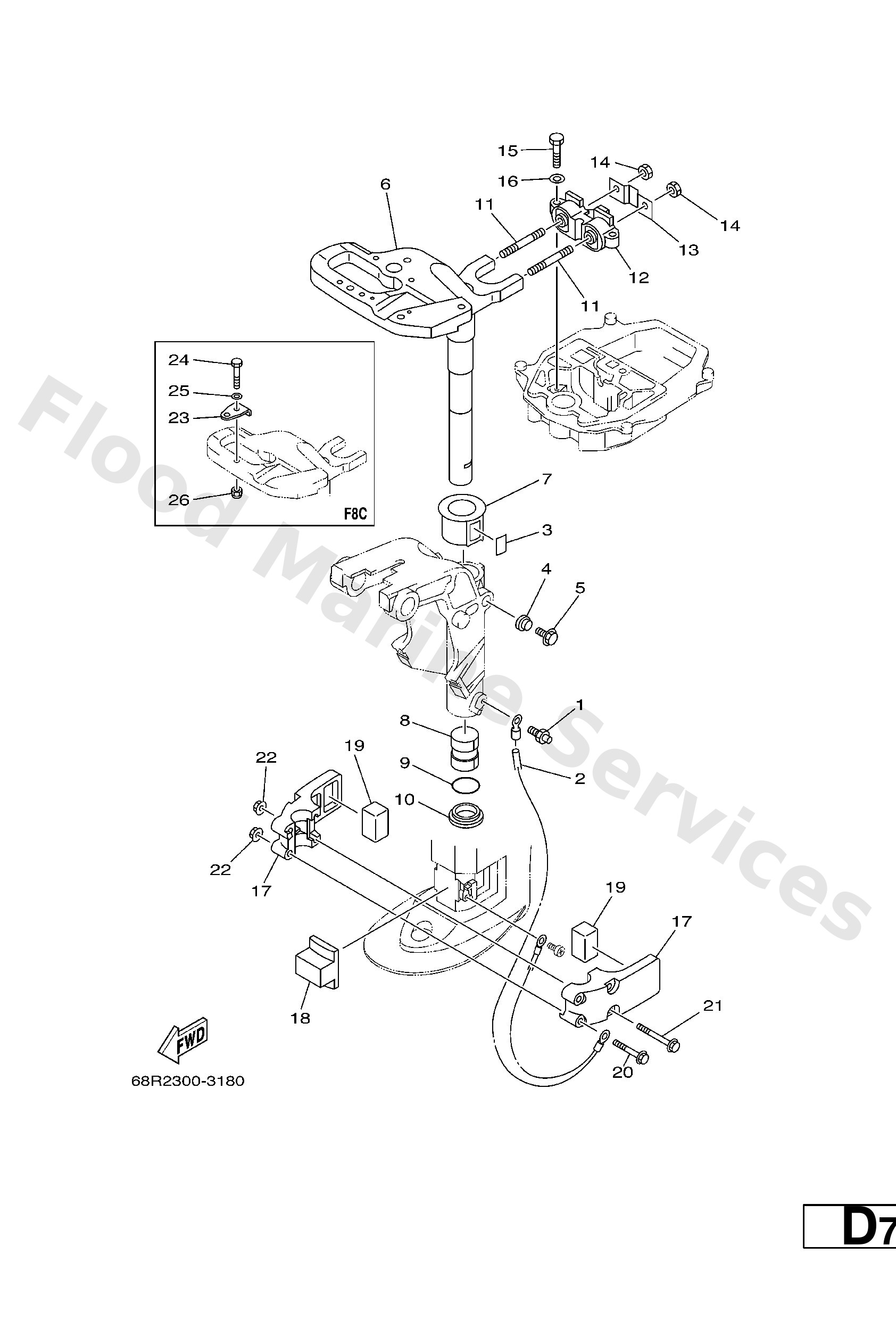

Diagram: BRACKET 2
Parts List
Reference
Description
Price
1
93700−06M03
Nipple, grease(6a1)
Loading…
↗
2
68T−82127−00
Wire, lead 2
Loading…
↗
3
63V−42528−00
Plate, friction
Loading…
↗
4
689−43373−01
Seal, damper
Loading…
↗
5
90105−06M07
Bolt (689)
Loading…
↗
6
68T−42511−01−4D
S
Bracket, Steering
Loading…
↗
6
68T−42511−11−4D
L
Bracket, steering
Loading…
↗
7
63V−42537−00
Bushing, pivot shaft
Loading…
↗
8
90386−30048
Bush
Loading…
↗
9
93210−29M94
O-ring(6h1)
Loading…
↗
10
90386−30M60
Bush(6j8)
Loading…
↗
11
90116−08M54
Bolt, stud(63v)
Loading…
↗
12
68T−44517−00−94
Mount rubber
Loading…
↗
13
68T−44526−00
Plate
Loading…
↗
14
95380−08600
Nut (661)
Loading…
↗
15
97075−06025
Bolt
Loading…
↗
16
92995−06600
Washer, plain (646)
Loading…
↗
17
68T−44551−00−4D
Housing, lower mount rubber 1
Loading…
↗
18
68T−44557−00
Mount Damper, Lower Front
Loading…
↗
19
682−44555−00
Mount damper, lower side
Loading…
↗
20
90119−06012
Bolt, with washer
Loading…
↗
21
90119−06013
Bolt, with washer
Loading…
↗
22
90179−06M28
Nut(63v)
Loading…
↗
23
63V−48511−01
AP F8C
Hook, steering
Loading…
↗
24
97075−08035
AP F8C
Bolt(70w)
Loading…
↗
25
92995−08600
AP F8C
Washer, plain (663)
Loading…
↗
26
90185−08057
AP F8C
Nut, nylon (6j8)
Loading…
↗
