F70AET (2021)
BRACKET 2

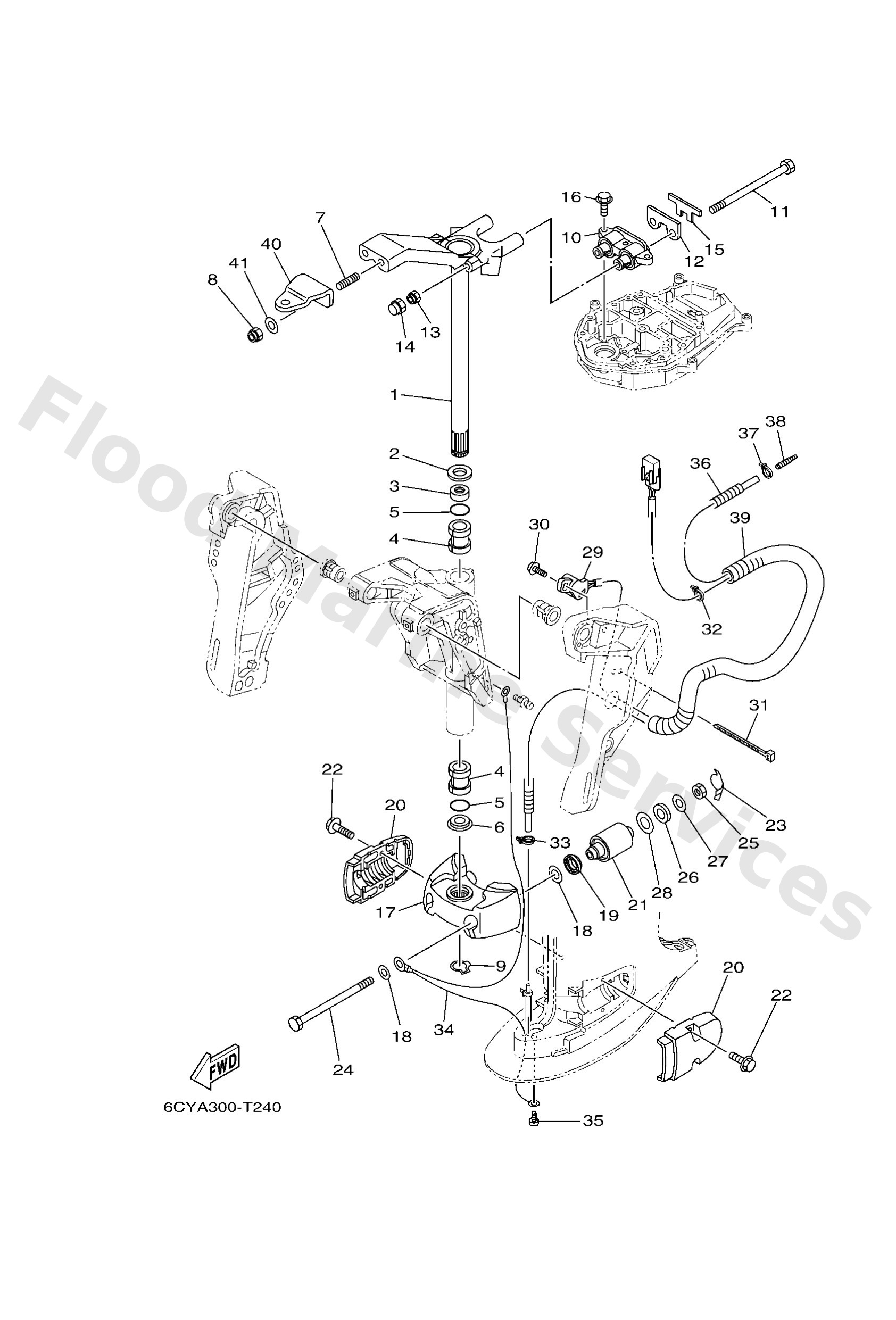

Diagram: BRACKET 2
Parts List
Reference
Description
Price
1
69W42510018D
Steering bracket assembly
Loading…
↗
2
9020130M00
Washer, plate(6h1)
Loading…
↗
3
9038630M78
Bush(6h0)
Loading…
↗
4
9038630M77
Bush(6h0)
Loading…
↗
5
9321029M94
O-ring(6h1)
Loading…
↗
6
9038630M60
Bush(6j8)
Loading…
↗
7
9011610063
Bolt, stud
Loading…
↗
8
9018510027
Nut, self-locking
Loading…
↗
9
9341028M06
Circlip (688)
Loading…
↗
10
6CJ4451400
Mount damper, upper side
Loading…
↗
11
9010908229
Bolt
Loading…
↗
12
6CJ4452600
Plate
Loading…
↗
13
9018508018
Nut, self-locking
Loading…
↗
14
6C54419400
Cap
Loading…
↗
15
6CJ4453300
Damper, upper mount rubber
Loading…
↗
16
97E7508530
Bolt, hexagon w/w deep recess
Loading…
↗
17
6C544551008D
Housing, lower mount rubber 1
Loading…
↗
18
9020112M16
Washer, plate (679)
Loading…
↗
19
6C54388501
Grommet
Loading…
↗
20
6C544552008D
Housing, lower mount rubber 2
Loading…
↗
21
69W4455500
Mount damper, lower side
Loading…
↗
22
9011908094
Bolt, with washer
Loading…
↗
23
6CJ4457500
Damper, lower mount rubber
Loading…
↗
24
9010912MA3
Bolt
Loading…
↗
25
9538012600
Nut (707)
Loading…
↗
26
9020221100
Washer plate (663)
Loading…
↗
27
9020113M19
Washer, plate (663)
Loading…
↗
28
9020122M05
Washer, plate
Loading…
↗
29
63D8367211
Trim sender
Loading…
↗
30
9798506216
Screw, with washer(6h2)
Loading…
↗
31
9046476001
Clamp
Loading…
↗
32
9046511M10
Clamp
Loading…
↗
34
67C8212710
Wire, lead 2
Loading…
↗
35
9788506008
Screw, pan head(6a3)
Loading…
↗
36
6CJ4438500
Hose, water 1
Loading…
↗
38
6E58355800
End, nipple
Loading…
↗
39
9044719009
Hose, with spring
Loading…
↗
40
65W4851101
Hook, steering
Loading…
↗
41
9020110049
Washer, plate
Loading…
↗
