F80AET (2005)
BRACKET 2

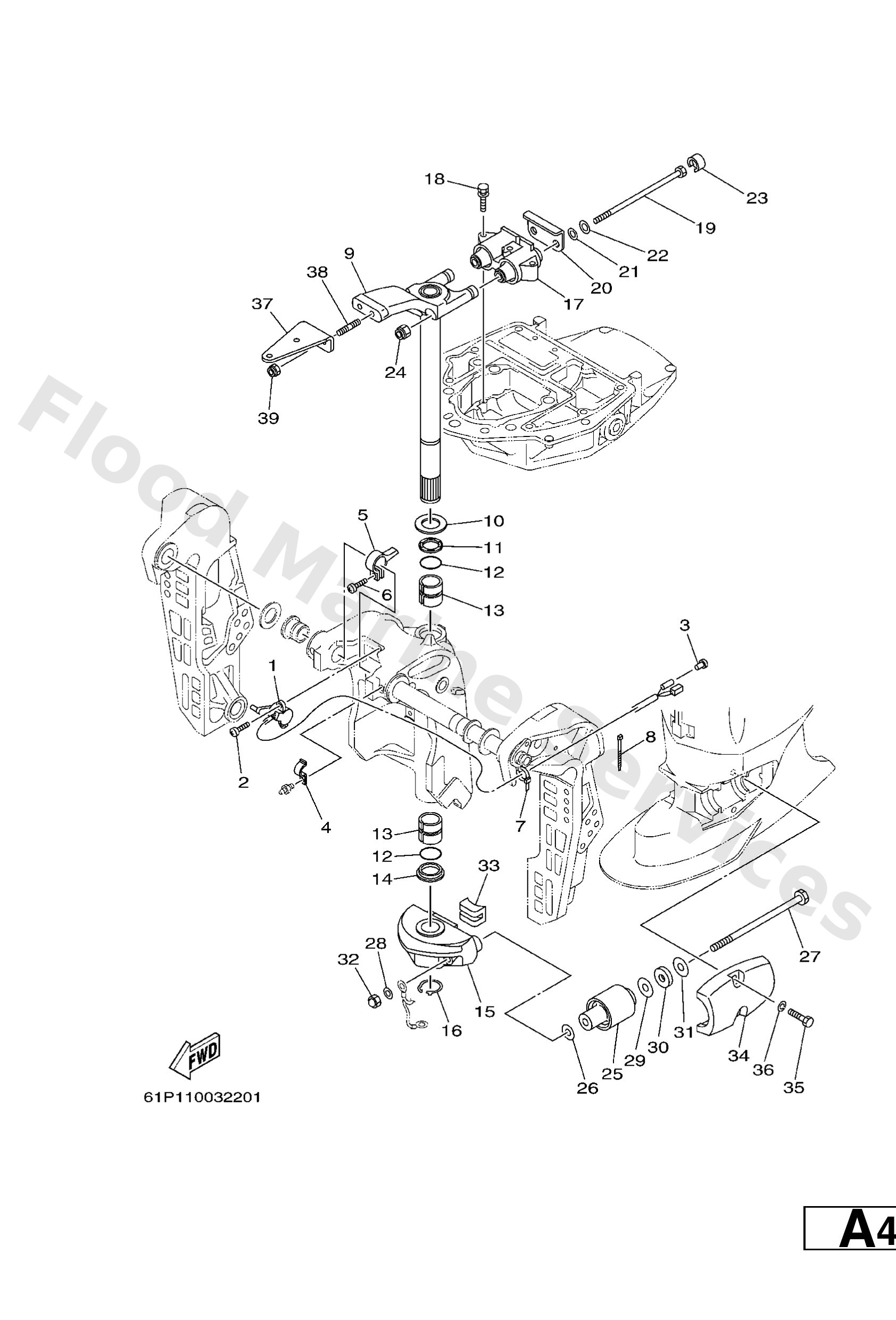

Diagram: BRACKET 2
Parts List
Reference
Description
Price
1
64E8367202
Trim sender
Loading…
↗
2
9788506016
Screw, pan head(6b0)
Loading…
↗
3
7038211900
Cover, lead wire
Loading…
↗
4
9046508M63
Clamp(61u)
Loading…
↗
5
64E4313902
Cam, trim sender (with screw)
Loading…
↗
6
9778060525
Screw, tapping(65j)
Loading…
↗
7
9046511M10
Clamp
Loading…
↗
9
67F42510114D
Steering bracket assembly
Loading…
↗
10
9020130M00
Washer, plate(6h1)
Loading…
↗
11
9038630M78
Bush(6h0)
Loading…
↗
12
9321029M94
O-ring(6h1)
Loading…
↗
13
9038630M77
Bush(6h0)
Loading…
↗
14
9038630M60
Bush(6j8)
Loading…
↗
15
67F44551004D
Housing, lower mount rubber
Loading…
↗
16
9341028M06
Circlip (688)
Loading…
↗
17
67F445140094
Mount damper, upper side
Loading…
↗
18
9757508445
Bolt, hexagon w/w deep recess
Loading…
↗
19
9010912007
Bolt
Loading…
↗
20
67F4452600
Plate
Loading…
↗
21
9020112M16
Washer, plate (679)
Loading…
↗
22
9020113M01
Washer, plate(6e5)
Loading…
↗
23
67F4453300
Damper, upper mount rubber
Loading…
↗
24
9578012300
Nut, nylon (6f2)
Loading…
↗
25
67F445550094
Mount damper, lower side
Loading…
↗
26
9020113M03
Washer, plate (688)
Loading…
↗
27
9010912006
UR
Bolt
Loading…
↗
27
9010912012
UR 67G)1005880-, 67F)1006683-
Bolt
Loading…
↗
29
9020124M02
Washer, plate(61x)
Loading…
↗
30
9020225M04
Washer, plate (663)
Loading…
↗
31
9020113M19
Washer, plate (663)
Loading…
↗
32
9538012800
UR 67G)1005880-, 67F)1006683-
Nut crown(663)
Loading…
↗
32
9538012700
UR
Nut(6t4)
Loading…
↗
33
67F4457500
Damper, lower mount rubber
Loading…
↗
34
67F44553004D
Cover, lower mount
Loading…
↗
35
9707510040
Bolt, hexagon deep recess
Loading…
↗
36
9299510100
Ybs67-10 washer, spring
Loading…
↗
37
67F48511004D
Hook, steering
Loading…
↗
38
9011610175
Bolt, stud
Loading…
↗
39
9018510051
Nut, self-locking
