F80CED (2010)
BRACKET 2

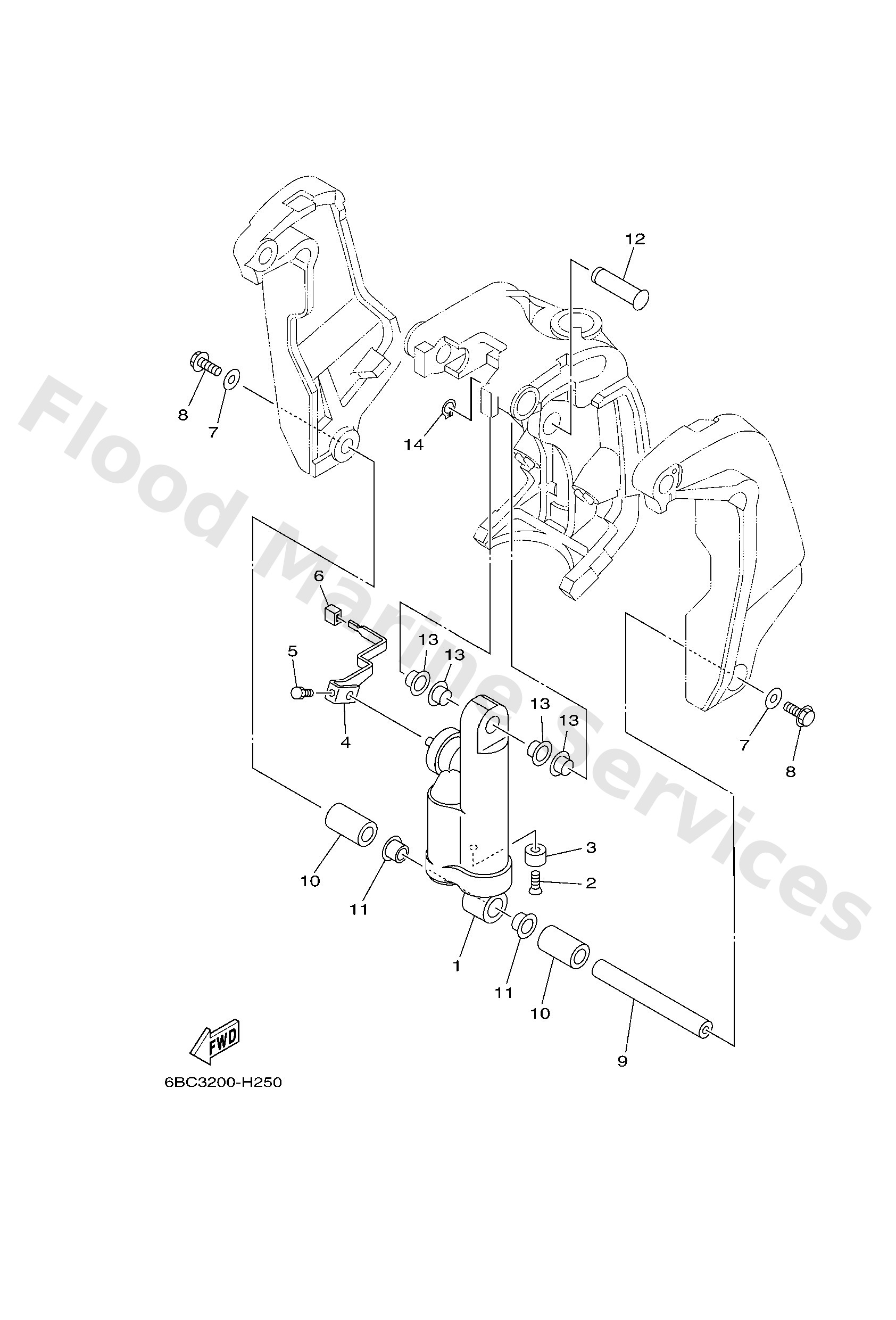

Diagram: BRACKET 2
Parts List
Reference
Description
Price
1
6BC43107008D
Shock absorber sub-assembly
Loading…
↗
2
9015206M01
Screw, countersunk
Loading…
↗
3
6634525100
Anode
Loading…
↗
4
6BC43631008D
Lever, tilt
Loading…
↗
5
9010106057
Bolt
Loading…
↗
6
6G14331801
Cover
Loading…
↗
7
9020110060
Washer, plate
Loading…
↗
8
9757510530
Bolt, with washer
Loading…
↗
9
6BC4381800
Pin, lower shock mount
Loading…
↗
10
9038722018
Collar
Loading…
↗
11
9038622M98
Bush(61u)
Loading…
↗
12
64E4312600
Pin, upper shock mount
Loading…
↗
14
9341022M11
Circlip(61u)
Loading…
↗
