F8CMH (2014)
BRACKET 2

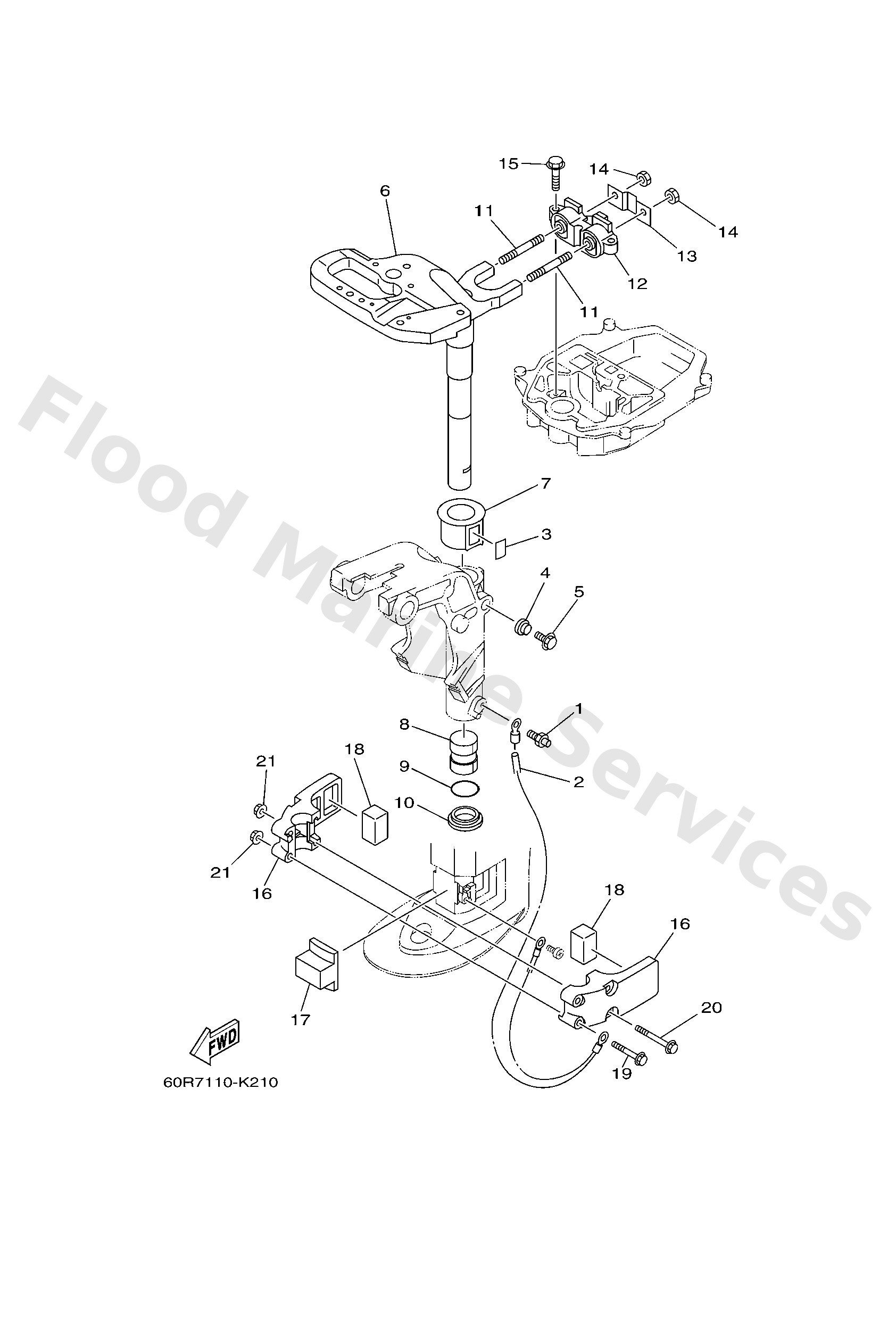

Diagram: BRACKET 2
Parts List
Reference
Description
Price
1
9370006M03
Nipple, grease(6a1)
Loading…
↗
2
68T8212700
Wire, lead 2
Loading…
↗
3
63V4252800
Plate, friction
Loading…
↗
4
6894337301
Seal, damper
Loading…
↗
5
9010506M07
Bolt (689)
Loading…
↗
6
60RG2511014D
S(17.1")
Bracket, steering
Loading…
↗
6
60RG2511114D
L(22.1")
Bracket, steering
Loading…
↗
7
63V4253700
Bushing, pivot shaft
Loading…
↗
8
9038630048
Bush
Loading…
↗
9
9321029M94
O-ring(6h1)
Loading…
↗
10
9038630M60
Bush(6j8)
Loading…
↗
11
9011608M54
Bolt, stud(63v)
Loading…
↗
12
68T4451700
Mount rubber
Loading…
↗
13
68T4452600
Plate
Loading…
↗
14
9538008600
Nut (661)
Loading…
↗
15
9757506525
Bolt, hexagon w/w deep recess
Loading…
↗
16
68T44551004D
Housing, lower mount rubber 1
Loading…
↗
17
60RG455700
Mount Damper, Lower Front
Loading…
↗
18
60RG455500
Mount damper, lower side
Loading…
↗
19
9011906012
Bolt, with washer
Loading…
↗
20
9011906013
Bolt, with washer
Loading…
↗
21
9017906M28
Nut(63v)
Loading…
↗
