F9.9HMH (2013)
BRACKET 2

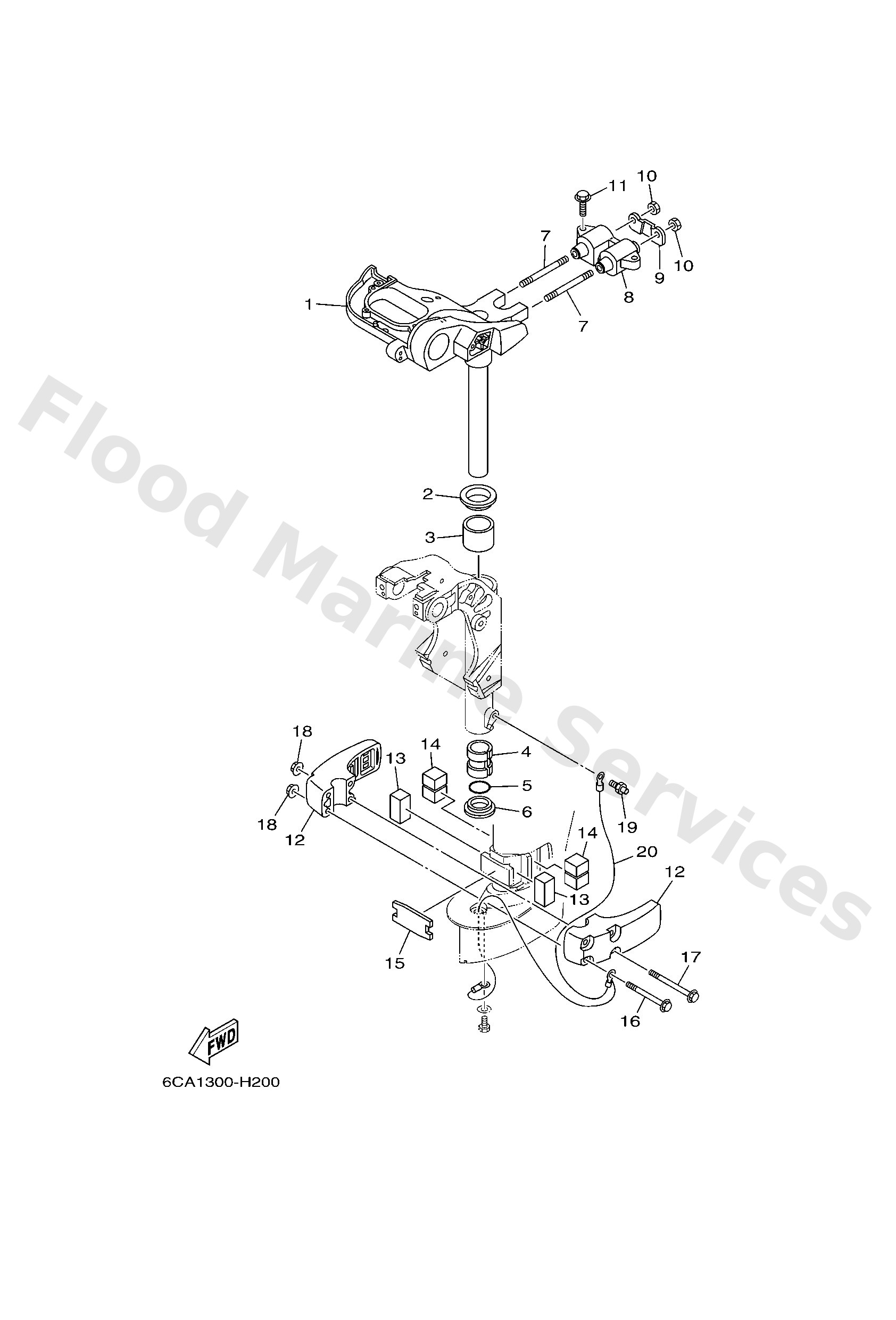

Diagram: BRACKET 2
Parts List
Reference
Description
Price
1
6AH42510104D
L(22.1")
Steering bracket assembly
Loading…
↗
1
6AH42510004D
S(17.1")
Steering bracket assembly
Loading…
↗
2
9020940008
Washer
Loading…
↗
3
9038640001
Bush
Loading…
↗
4
9038630048
Bush
Loading…
↗
5
9321029M94
O-ring(6h1)
Loading…
↗
6
9038630M60
Bush(6j8)
Loading…
↗
7
9011610033
Bolt, stud
Loading…
↗
8
6AH4451400
Mount damper, upper side
Loading…
↗
9
6AH4452600
Plate
Loading…
↗
10
9538010600
Nut(624)
Loading…
↗
11
9011908094
Bolt, with washer
Loading…
↗
12
6AH44551004D
Housing, lower mount rubber 1
Loading…
↗
13
6AH4455700
Mount damper, lower front
Loading…
↗
14
6AH4455500
Mount damper, lower side
Loading…
↗
15
6AH4457400
Stopper, lower mount rubber
Loading…
↗
16
9011908M45
Bolt, with washer
Loading…
↗
17
9011908M46
Bolt, with washer
Loading…
↗
18
9017908M34
Nut
Loading…
↗
19
9370006M03
Nipple, grease(6a1)
Loading…
↗
20
6AH8212700
Wire, lead 2
Loading…
↗
