Yamaha Outboard Parts - BRACKET 2 - FL115AET (2004) | Flood Marine
New Search
Parts
New Outboards
Home
FL115AET (2004)
BRACKET 2

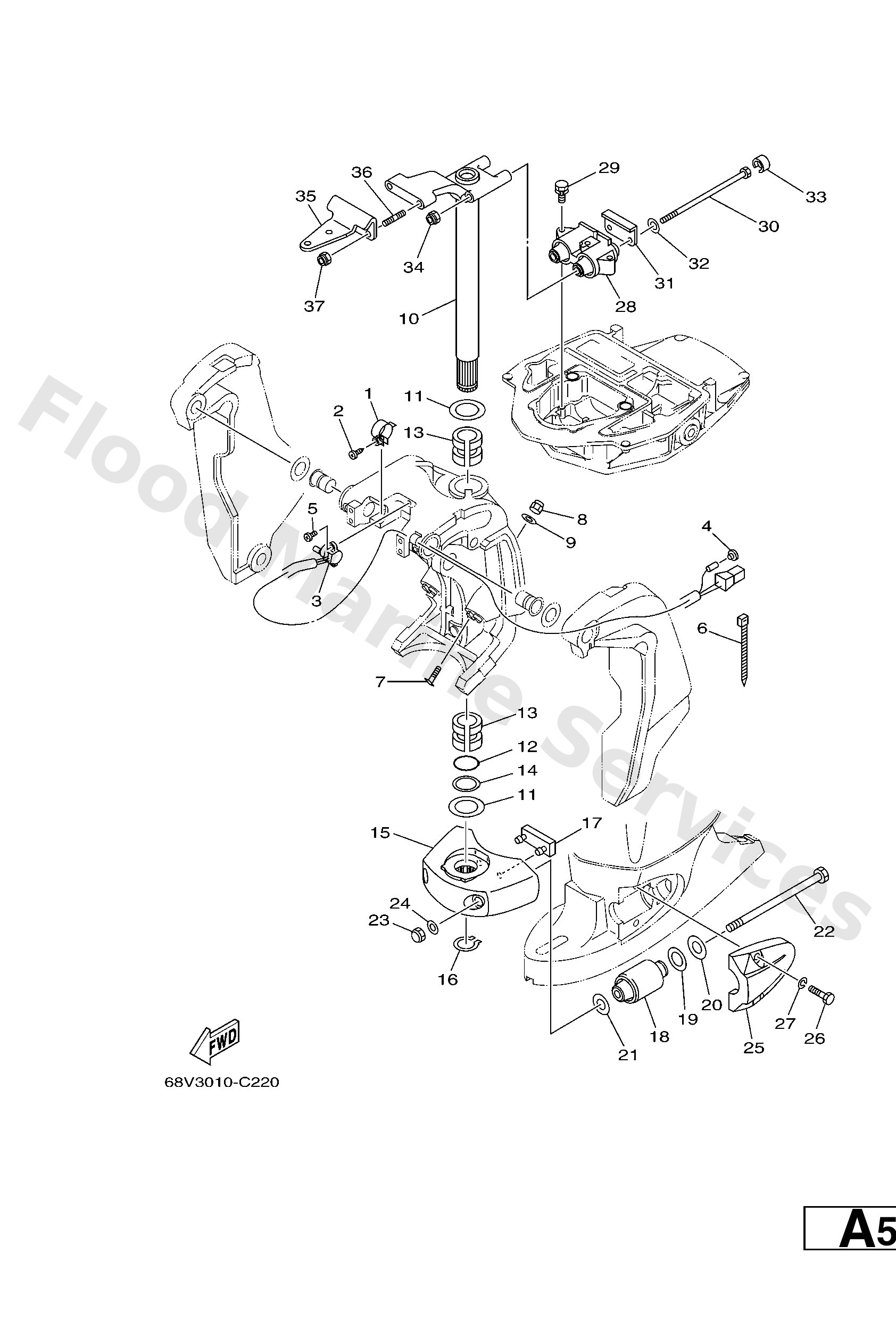

Diagram: BRACKET 2
Parts List
Reference
Description
Price
1
64E4313902
Cam, trim sender (with screw)
Loading…
↗
2
9778060525
Screw, tapping(65j)
Loading…
↗
3
64E8367202
Trim sender
Loading…
↗
4
7038211900
Cover, lead wire
Loading…
↗
5
9788506016
Screw, pan head(6b0)
Loading…
↗
6
9046511M10
Clamp
Loading…
↗
7
63P4337600
Bolt, thrust receiver
Loading…
↗
8
9578010300
Nut, nylon (6e5)
Loading…
↗
9
9299510600
Washer, plate
Loading…
↗
10
68V42510108D
L
Steering bracket assembly
Loading…
↗
10
68V42510308D
X
Steering bracket assembly
Loading…
↗
11
9020138M60
Washer, plate (6e5)
Loading…
↗
12
9321037MH7
O-ring(61u)
Loading…
↗
13
9038638M32
Bush(6e5)
Loading…
↗
14
9020240M47
Washer, plate(61a)
Loading…
↗
15
68V44551008D
Housing, lower mount rubber
Loading…
↗
16
9341037M04
Circlip (6e5)
Loading…
↗
17
61A4457500
Damper, lower mount rubber
Loading…
↗
18
61A445550194
Mount damper, lower side
Loading…
↗
19
9020232M19
Washer, plate (6e5)
Loading…
↗
20
9020116M55
Washer, plate (6e5)
Loading…
↗
21
9020115M58
Washer, plate (6e5)
Loading…
↗
22
9010914MA7
Bolt
Loading…
↗
23
9538014600
Nut,hex. (ge6)
Loading…
↗
24
9299514600
Washer (6e5)
Loading…
↗
25
68V44553008D
Cover, lower mount
Loading…
↗
26
9707510040
Bolt, hexagon deep recess
Loading…
↗
27
9299510100
Ybs67-10 washer, spring
Loading…
↗
28
67F445140094
Mount damper, upper side
Loading…
↗
29
9757508445
Bolt, hexagon w/w deep recess
Loading…
↗
30
9010912M37
Bolt
Loading…
↗
31
67F4452600
Plate
Loading…
↗
32
9020112M09
Washer, plate
Loading…
↗
33
67F4453300
Damper, upper mount rubber
Loading…
↗
34
9018512M12
Nut, self-locking(6e5)
Loading…
↗
35
68V48511008D
Hook, steering
Loading…
↗
36
9011610175
Bolt, stud
Loading…
↗
37
9018510051
Nut, self-locking
Loading…
↗
